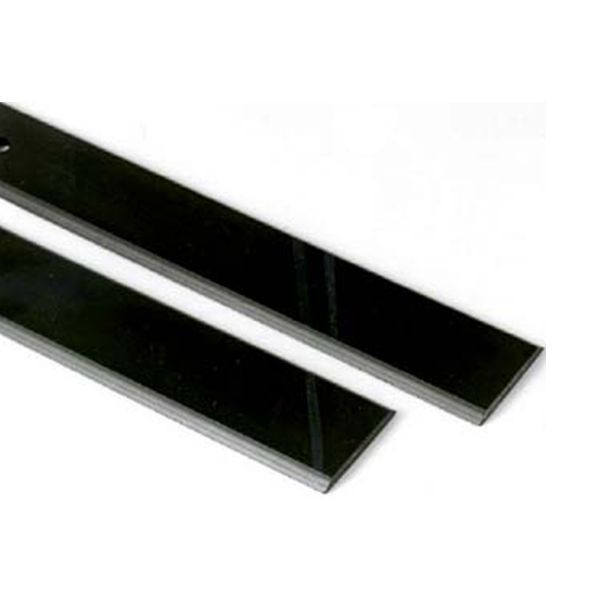

WR Meadows TERMINATION BAR 10 ft Strip, Carton of 25
WR Meadows TERMINATION BAR is a preformed, high strength plastic termination bar for attaching waterproofing membranes, drainage boards and flashing at their top edge, supplied as a carton of 25 strips, 10 ft each (250 LF). Each strip is predrilled every 6 Inch on center.
- Trapezoidal profile forms a trough for a sealant or mastic bead
- UV resistant, will not rust and is non-conductive
- Scores and cuts to fit field dimensions
$159.85
Drop Shipped
WR Meadows TERMINATION BAR 10 ft Strip, Carton of 25
WR Meadows TERMINATION BAR is a high strength plastic termination bar intended to support vertical membrane systems at their termination point, and to attach a wide range of construction waterproofing, drainage boards and flashing systems. It gives a neat top termination for below-grade waterproofing membranes and drainage board systems, especially when backfilling is delayed, and WR Meadows lists it as an installation option with MEL-ROL, AIR-SHIELD, PROTECTION COURSE and MEL-DRAIN. Each 10 ft (3 m) strip is predrilled every 6 Inch (152.4 mm) on center, which also suits cavity wall flashing. The trapezoidal profile, set narrow side to the wall, forms a reservoir for caulk or mastic at the top edge. The plastic composite is UV resistant, will not rust and is non-conductive for jobsite safety.
Key Features
- High strength plastic composite; adapts to wall irregularities
- Predrilled 0.22 Inch holes every 6 Inch on center
- Trapezoidal design forms a trough for caulk or mastic beads
- UV resistant, non-corrosive and non-conductive
- Pre-fabricated and ready to use
Applications
- Top terminations of below-grade waterproofing membranes
- Securing drainage board and protection course at the top edge
- Cavity wall flashing
- Terminations left exposed while backfilling is delayed
Technical Specifications
| Property | Value |
|---|---|
| Type | Preformed plastic termination bar |
| Length | 10 ft (3 m) per strip |
| Carton | 25 pieces, 250 LF (76.2 m) |
| Hole spacing | 6 Inch (152.4 mm) on center, 2 Inch (50.8 mm) in from either end |
| Hole diameter | 0.22 Inch (5.6 mm) |
| Color | White |
| Weight per carton | 20 lb (9.1 kg) |
| Fasteners | Appropriate mechanical or power-actuated fasteners through the predrilled holes |
| Pack | Carton of 25 strips, 250 LF |
| Part number | 6040010 |
Product documents: WR Meadows TERMINATION BAR Data Sheet (PDF)
Frequently Asked Questions
How much termination bar is in a carton?
Each carton holds 25 pieces of WR Meadows TERMINATION BAR, 10 ft (3 m) each, for 250 LF (76.2 m). A carton weighs 20 lb (9.1 kg).
How is the termination bar installed?
Install it at the top edge of the material being supported, and fasten through the predrilled holes as needed with appropriate mechanical or power-actuated fasteners. The holes are 0.22 Inch (5.6 mm) in diameter, every 6 Inch (152.4 mm) on center, starting 2 Inch (50.8 mm) in from either end.
Which way does the termination bar face?
If a sealant will be used at the top of the termination, place the narrow side of the trapezoidal profile against the wall. That forms a reservoir along the top edge for the caulk or mastic bead.
Can it be cut to length?
Yes. TERMINATION BAR is easily scored and cut to fit field dimensions.
What can it be used with?
WR Meadows lists it as an installation option with MEL-ROL, AIR-SHIELD, PROTECTION COURSE and MEL-DRAIN, and it suits other construction waterproofing, drainage board and flashing systems, including cavity wall flashing.
Will it hold up outdoors?
The plastic composite is ultraviolet resistant, will not rust and is non-conductive. It is intended for top terminations of below-grade waterproofing and drainage board systems, including where backfilling may be delayed.
