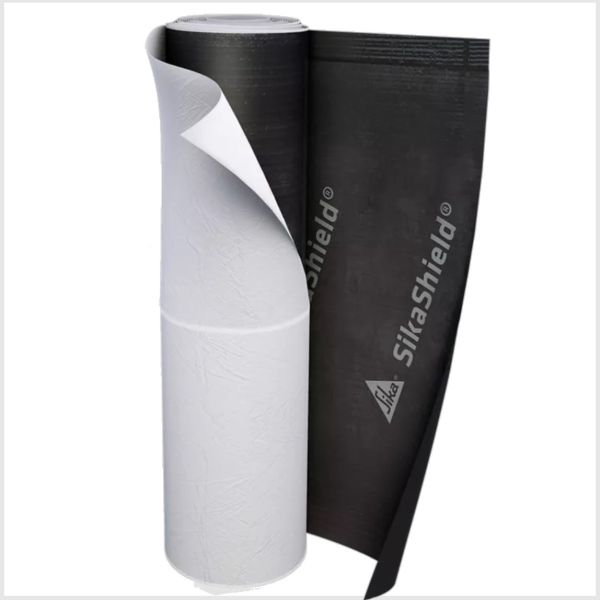

Sika Shield S-60 3ft x 66.7ft Roll
SikaShield S-60 is a proprietary composite, uniquely designed to provide high strength, low temperature adhesion and high temperature stability in a superior waterproofing membrane. Ideal for waterproofing below grade concrete, masonry structures, and wood surfaces where in-service temperatures will not exceed 130°F.
- High Hydrostatic Head Resistance
- Self Adhesive Overlap
- Controlled Thickness
$181.54
SKU
22374
SikaShield S-60 – Self-Adhering Sheet Waterproofing Membrane
SikaShield S-60 is a premium, self-adhering waterproofing membrane engineered for below-grade and between-slab applications. Its proprietary composite design ensures high strength, low-temperature adhesion, and superior hydrostatic resistance. The cross-laminated film provides excellent stability and resistance to punctures and tearing, offering long-lasting protection for concrete and masonry structures. SikaShield S-60 is a cold-applied system that requires no heat for installation, making it an efficient and reliable choice for waterproofing foundations, split slab construction, and earth-sheltered structures.
Key Features:
- Self-adhering waterproofing membrane with high hydrostatic resistance
- Cold-applied system—no heat or special equipment required
- Cross-laminated film for enhanced puncture and tear resistance
- Flexible design accommodates substrate movement and minor settlement
- Controlled thickness to minimize application errors
- Compatible with various construction materials, including concrete and masonry
- High resistance to water penetration and vapor permeability
- Designed for below-grade, split slab, and earth-sheltered applications
Technical Specifications:
| Property | Value |
|---|---|
| Thickness | 60 mil (1/16 in.) (ASTM D3767 - Method A) |
| Tensile Strength (Membrane) | 325 lbs/in (ASTM D412) |
| Elongation to Failure Load | 300% (ASTM D412) |
| Water Absorption | < 0.1% (ASTM D570) |
| Resistance to Water Penetration | > 231 ft (ASTM D5385) |
| Permeability to Water Vapor | < 0.05 perms (ASTM E96) |
| Low Temperature Bend | Passes (0 °F) (ASTM D1970) |
| Adhesion in Peel | 9 lbs/in (ASTM D1876) |
Frequently Asked Questions:
What surfaces can SikaShield S-60 be applied to?
It is designed for below-grade concrete, masonry structures, and wood surfaces. It can also be used in split slab construction and earth-sheltered applications.
Does this waterproofing membrane require heat for installation?
No, SikaShield S-60 is a cold-applied, self-adhering membrane that does not require any heat or special equipment for application.
How long can the membrane be exposed to sunlight before backfilling?
SikaShield S-60 should not be left exposed to direct sunlight for more than 90 days.
What is the recommended storage method for this product?
Store in a clean, dry area between 40–100 °F, avoiding direct sunlight and freezing temperatures.
For the latest technical specifications and application guidelines, visit Sika USA.
| Brand | Sika |
|---|
