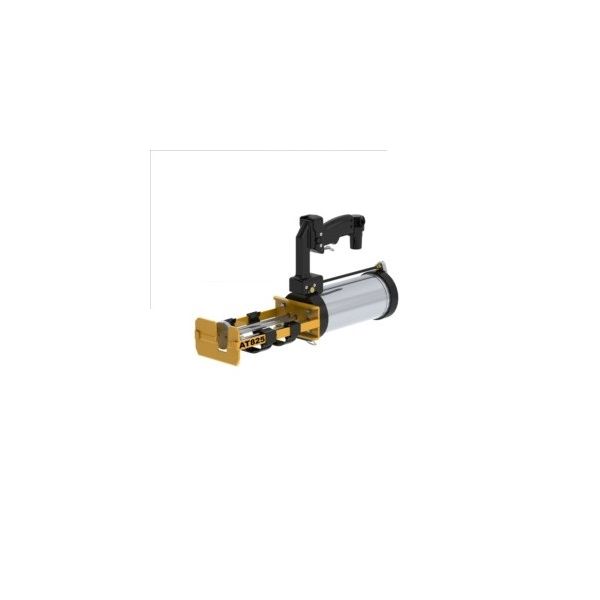

Albion AT825-S Air Powered Cartridge Applicator 750ml x 75ml
Albion AT825-S is a suitcase pneumatic applicator for 10:1 PlasPak work on walls, floors, and overhead, including Red Head A7.
- One-hand suitcase on overhead 10:1 lines
- Red Head A7 10:1 path
- Upright reload at working height
$562.46
Availability:
In stock
Drop Shipped Albion AT825-S Air-Powered Cartridge Applicator 750 ml x 75 ml
The Albion AT825-S is a suitcase pneumatic applicator for 10:1 PlasPak acrylic and epoxy on walls, floors, and overhead lines, including the Red Head A7 path. The suitcase handle leaves one hand free to keep the mixer on an overhead A7 line while shop air moves thick 10:1 material. Upright reload keeps the next 10:1 cartridge at working height instead of on the ground.
Looking for another option?
Key Features
- One-hand suitcase 10:1 on walls, floors, and overhead
- PlasPak path including Red Head A7
- Shop-air reverse for reload at height
- Upright stance for cartridge changes
- Free hand to keep the mixer on an overhead line
- Thick 10:1 flow with one-hand control
Applications
- Wall, floor, and overhead 10:1 joints with suitcase control
- ITW Ramset Red Head A7 path on a wall or overhead line
- 10:1 two-component acrylics and epoxies
- One-hand mixer control on a vertical A7 string
- Shop-air flow on thick 10:1 adhesive at height
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer / Model | Albion Engineering AT825-S (AT825-S) |
| Tool Type | Air-powered multi-component cartridge applicator, suitcase (one-hand) handle |
| Capacity | Twin 750 ml x 75 ml cartridges (825 ml total, 28 oz) |
| Mix Ratio | Fixed 10:1 |
| Drive | Pneumatic, powered forward and reverse |
| Cartridge Outside Diameters | 3 1/8 x 1 7/8 in. |
| Cartridge Part Number | Albion 741-G01 (A, 750 ml) and 741-G05 (B, 75 ml) |
| Compatible Cartridge Example | ITW Ramset Red Head A7 28 oz twin cartridge |
| Air Cylinder | 4 in. diameter |
| Rated Pressure / Thrust | 100 PSI / 1,250 lbf |
| Maximum Operating Pressure | 120 PSI |
| Air Consumption | 1 CFM |
| Quick Disconnect | 1/4 in. style J or M |
| Weight | 11.3 lb |
| Dimensions | 22.5 × 6.5 × 6.5 in. |
| Bulletin | Bulletin 318B (202105) |
Product documents: PNEUMATIC MULTI-COMPONENT Cartridge Applicator Bulletin 318B (PDF) | AT-Line Operating Instructions (PDF)
Frequently Asked Questions
When should I run suitcase 10:1 Albion AT825-S overhead?
Use the AT825-S when a 10:1 PlasPak cartridge, including Red Head A7, has to travel a wall, floor, or overhead line and one hand stays on the mixer. Two-hand AT825 is the better pick when that same 10:1 bead is in front of the body. Overhead stance is the reason.
Can the Albion AT825-S run Red Head A7 on a wall?
Yes. The AT825-S is the suitcase air path Albion publishes for PlasPak 10:1 packs, including the ITW Ramset Red Head A7 twin cartridge. One hand runs the wall while the other keeps the mixer in the hole. Confirm the anchor sheet for 10:1 geometry.
When should I pick 10:1 suitcase Albion AT825-S instead of 2:1 AT900-S or 1:1 AT1500S?
Pick the AT825-S when the cartridge on the sheet is 10:1 PlasPak and you want one-hand suitcase control. Pick the AT900-S when the sheet calls for 2:1 in a 600x300 cartridge, and the AT1500S when it calls for 1:1 in a 750x750 cartridge. Ratio on the sheet is the reason.
How does shop-air reverse help on an overhead Albion AT825-S bead?
Pneumatic reverse on the AT825-S retracts the pistons so the next 10:1 PlasPak cartridge can be swapped at working height. That reverse is a published AT-line property on this suitcase, not a handle-stance comparison with two-hand AT825. Start the regulator low until the overhead bead rate is right.
Is the Albion AT825-S useful on floors as well as overhead A7 work?
Yes. Albion publishes the AT825-S suitcase for walls, floors, and horizontal joints, so a floor 10:1 line still gets one-hand control. Keep two-hand AT825 on deck anchoring in front of the body.
How do I keep the mixer on an overhead 10:1 line with the Albion AT825-S?
The AT825-S suitcase leaves a free hand to hold the mixer on an overhead A7 or other 10:1 line while shop air moves thick material. Start the regulator low and raise it until the overhead bead rate is right. Reverse retracts the pistons for reload at height.
