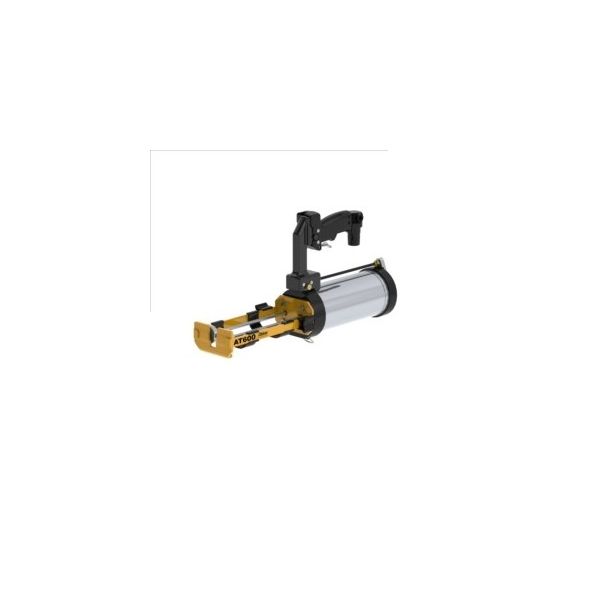

Albion AT600X2-S Air Powered Cartridge Applicator 300ml x 150ml
Albion AT600X2-S is a suitcase pneumatic applicator for as-shipped 2:1 300x150 work on walls and floors.
- One-hand suitcase on 2:1 walls and floors
- As-shipped 2:1 300x150 carriage
- Upright reload at working height
$550.83
Availability:
In stock
Drop Shipped Albion AT600X2-S Air-Powered Cartridge Applicator 300 ml x 150 ml
The Albion AT600X2-S is a suitcase pneumatic applicator for as-shipped 2:1 epoxy and adhesive on walls and floors. The suitcase handle leaves one hand free to keep the mixer on a vertical or floor line while shop air moves 300 ml x 150 ml 2:1 material. Conversion to 1:1 is a published property, so the AT600X2-S is the one-hand 2:1 path in this family.
Looking for another option?
Key Features
- One-hand suitcase as-shipped 2:1 on walls and floors
- Shop-air reverse for reload at height
- Ships as 2:1 and is convertible to 1:1 as a property
- Upright stance for cartridge changes
- Free hand to keep the mixer on the work
- 2:1 flow on vertical and floor joints
Applications
- Wall joints with 2:1 two-component epoxy
- Floor joints where one hand stays on the mixer
- Crack injection from a suitcase 2:1 stance
- Bolt setting on a vertical face with 2:1 material
- Shop-air flow on thick 2:1 adhesive at height
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer / Model | Albion Engineering AT600X2-S (AT600X2S) |
| Tool Type | Air-powered multi-component cartridge applicator, suitcase (one-hand) handle |
| Capacity (as shipped) | Twin 300 ml x 150 ml cartridges (15.2 oz / 450 ml total) |
| Mix Ratio | As shipped 2:1; convertible to 1:1 with change-over parts included |
| Drive | Pneumatic, powered forward and reverse |
| Cartridge Outside Diameters | 1:1, 2 × 2 in. | 2:1, 2 × 1 15/32 in. |
| Cartridge Part Numbers | 741-G02 / 741-G03 (600 Series 1:1 and 2:1; change-over parts included) |
| Air Cylinder | 4 in. diameter |
| Listed Pressure | 90 PSI |
| Maximum Operating Pressure | 120 PSI |
| Thrust | 1,130 lbf |
| Air Consumption | 1 CFM |
| Quick Disconnect | 1/4 in. style J or M |
| Weight | 10.5 lb |
| Dimensions | 22.5 × 6.5 × 6.5 in. |
| Country of Origin | Taiwan |
| Bulletin | Bulletin 318B (202105); Bulletin 283C (201807) |
Product documents: PNEUMATIC MULTI-COMPONENT Cartridge Applicator Bulletin 318B (PDF) | 600 SERIES MULTI-COMPONENT Applicator - 1:1 & 2:1 MIX RATIOS Bulletin 283C (PDF) | AT-Line Operating Instructions (PDF)
Frequently Asked Questions
When should I run suitcase 2:1 Albion AT600X2-S on a wall?
Use the AT600X2-S when a 2:1 300x150 cartridge has to travel a wall and one hand stays on the mixer. Two-hand AT600X2 is the better pick when that same 2:1 bead is in front of the body. Wall stance is the reason for the suitcase.
Is the Albion AT600X2-S the right suitcase for 2:1 floor joints?
Yes. Albion publishes the AT600X2-S for walls, floors, and horizontal joints, so a floor 2:1 line still gets one-hand control. Shop air moves the 2:1 mix while a free hand tracks the slot. Keep two-hand AT600X2 on deck work in front of the body.
When should I pick suitcase 2:1 Albion AT600X2-S instead of suitcase 10:1 AT825-S?
Pick the AT600X2-S when the sheet calls for 2:1 as shipped in a 300 ml x 150 ml cartridge and you want one-hand suitcase control. Pick the AT825-S when the sheet calls for 10:1 PlasPak, including Red Head A7, on a suitcase. Mix ratio on the sheet is the reason, not handle stance.
When should I pick suitcase 2:1 Albion AT600X2-S instead of suitcase 1:1 AT600-S?
Pick the AT600X2-S when the datasheet calls for 2:1 as shipped in a 300 ml x 150 ml cartridge and you want one-hand suitcase control. Pick the AT600-S when the sheet calls for 1:1 as shipped in a 300 ml x 300 ml cartridge. Mix on the sheet is the reason.
Does the Albion AT600X2-S convert to 1:1 as a published property?
Yes. The AT600X2-S ships as 2:1 and Albion publishes conversion to 1:1 as a property, with change-over parts included. This page does not walk a change-over procedure. If you want 1:1 as shipped in a suitcase, the live sister is the AT600-S.
Can the Albion AT600X2-S run 2:1 overhead as well as walls?
The AT600X2-S suitcase is the one-hand path for 2:1 cartridges on walls, floors, and horizontal joints, including overhead lines where a two-hand 2:1 grip is awkward. Shop air keeps thick 2:1 epoxy moving while a free hand holds the mixer.
