Albion AT900-S Air Powered Cartridge Applicator 600ml x 300ml

Albion AT900-S is a suitcase pneumatic applicator for 2:1 600x300 work on walls, floors, and horizontal joints.

One-hand suitcase on horizontal 2:1 joints
Fixed 2:1 600x300 carriage
Upright reload at working height

$541.40

Availability: In stock

Drop Shipped

Details

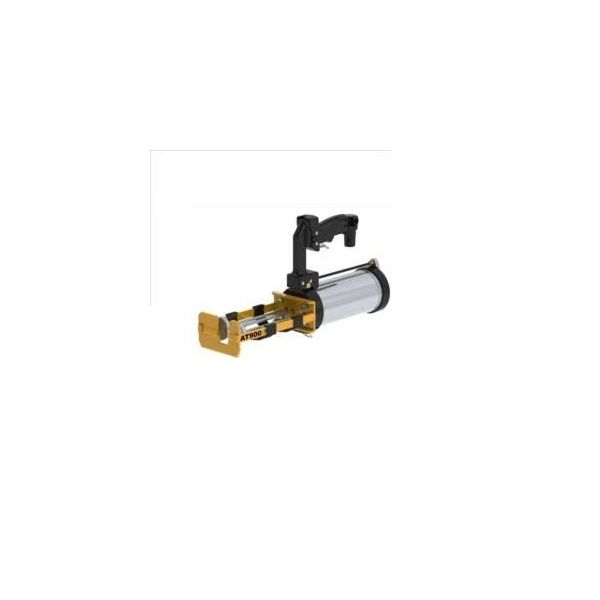

Albion AT900-S Air-Powered Cartridge Applicator 600 ml x 300 ml

The Albion AT900-S is a suitcase pneumatic applicator for 2:1 material in a 600 ml x 300 ml carriage on walls, floors, and horizontal joints. The suitcase handle leaves one hand free to guide the mixer along a horizontal joint while shop air moves thick 2:1 compound. Upright reload keeps the next 2:1 cartridge at working height instead of on the ground.

Looking for another option?

AT900
Two-hand 2:1

Key Features

One-hand suitcase 2:1 on walls, floors, and horizontal joints
Shop-air reverse for reload at height
Upright stance for cartridge changes
Free hand to guide the mixer along the joint
Fixed 2:1 carriage for 600x300 cartridges
Thick 2:1 flow with one-hand control

Applications

Horizontal joints with 2:1 two-component material
Wall joints with one-hand suitcase control
Floor joints where a free hand guides the mixer
2:1 adhesive on a wall or floor plane
Shop-air flow on thick 2:1 compound at height

Technical Specifications

Property	Value
Manufacturer / Model	Albion Engineering AT900-S (AT900-S)
Tool Type	Air-powered multi-component cartridge applicator, suitcase (one-hand) handle
Capacity	Twin 600 ml x 300 ml cartridges (900 ml total, 30.4 oz)
Mix Ratio	Fixed 2:1
Drive	Pneumatic, powered forward and reverse
Cartridge Outside Diameters	2 13/16 x 2 in.
Cartridge Part Number	Albion 741-G07 (A, 600 ml) and 741-G02 (B, 300 ml)
Air Cylinder	4 in. diameter
Rated Pressure / Thrust	100 PSI / 1,250 lbf
Maximum Operating Pressure	120 PSI
Air Consumption	1 CFM
Quick Disconnect	1/4 in. style J or M
Weight	11.6 lb
Dimensions	24 × 8.5 × 6 in.
Bulletin	Bulletin 318B (202105)

Product documents: PNEUMATIC MULTI-COMPONENT Cartridge Applicator Bulletin 318B (PDF) | AT-Line Operating Instructions (PDF)

Frequently Asked Questions

When should I run suitcase 2:1 Albion AT900-S on a horizontal joint?
Use the AT900-S when a 2:1 600x300 cartridge has to travel a wall, floor, or horizontal joint and one hand stays on the mixer. Two-hand AT900 is the better pick when that same 2:1 bead is in front of the body. Horizontal-joint stance is the reason for the suitcase.

When should I pick 600x300 Albion AT900-S instead of 300x150 AT600X2-S for suitcase 2:1?
Pick the AT900-S when the sheet calls for 2:1 in a 600 ml x 300 ml cartridge and you want one-hand suitcase control. Pick the AT600X2-S when the sheet calls for 2:1 as shipped in a 300 ml x 150 ml cartridge. Cartridge size on the 2:1 sheet is the reason, not handle stance.

When should I pick 2:1 suitcase Albion AT900-S instead of 10:1 AT825-S or 1:1 AT1500S?
Pick the AT900-S when the sheet calls for 2:1 in a 600x300 cartridge and you want one-hand suitcase control. Pick the AT825-S when the sheet calls for 10:1 PlasPak, and the AT1500S when it calls for 1:1 in a 750x750 cartridge. Ratio on the sheet is the reason.

Can the Albion AT900-S run 2:1 beads on a wall as well as a floor?
Yes. Albion publishes the AT900-S suitcase for walls, floors, and horizontal joints, so a wall 2:1 line still gets one-hand control. Keep two-hand AT900 on deck work in front of the body.

How do I keep the mixer on a floor joint with the Albion AT900-S?
The AT900-S suitcase leaves a free hand to guide the mixer along a floor or horizontal 2:1 joint while shop air moves thick compound. That is the one-hand reason for this handle. Start the regulator low and raise it until the floor bead rate is right.

How does shop air help suitcase 2:1 flow on the Albion AT900-S?
Shop air drives the AT900-S so high-viscosity 2:1 compound keeps moving on a long wall or floor joint. Reverse retracts the pistons for reload at working height. Quick exhaust stops the flow when you release the trigger.
