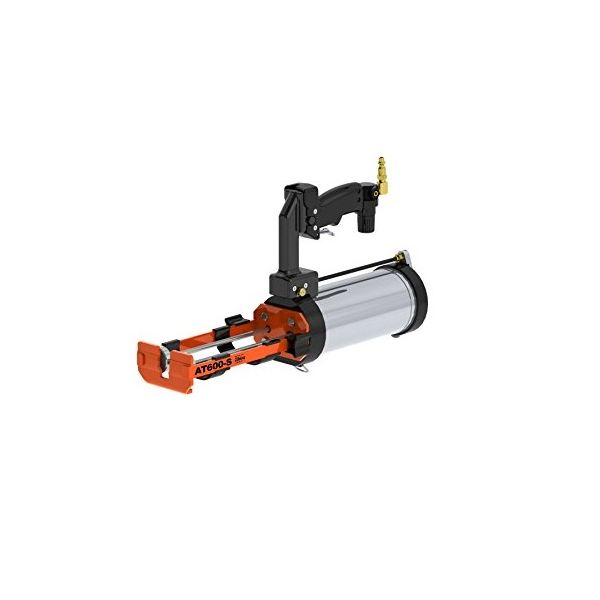

Albion AT600-S Air Powered Cartridge Applicator 300ml x 300ml
Albion AT600-S is a suitcase pneumatic applicator for 1:1 300x300 work on walls, floors, and overhead.
- One-hand suitcase on overhead 1:1 joints
- Thick 1:1 flow from shop air
- Convertible to 2:1 as a published property
$570.01
Availability:
In stock
Drop Shipped Albion AT600-S Air-Powered Cartridge Applicator 300 ml x 300 ml
The Albion AT600-S is a suitcase pneumatic applicator for 1:1 epoxy and adhesive on walls, floors, and overhead joints. The suitcase handle leaves one hand free to keep the mixer on a vertical or overhead line while shop air moves thick 1:1 material. It ships as 1:1 for 300 ml x 300 ml cartridges and is convertible to 2:1 as a published property on the AT600-S.
Looking for another option?
Key Features
- One-hand suitcase 1:1 on walls, floors, and overhead
- Shop-air reverse for reload at height
- Ships as 1:1 and is convertible to 2:1 as a property
- Upright stance for cartridge changes
- Free hand to keep the mixer on the work
- Thick 1:1 flow on overhead beads
Applications
- Overhead 1:1 epoxy joints with one-hand control
- Wall joints with 1:1 two-component adhesive
- Floor joints where a free hand guides the mixer
- Crack injection from a suitcase stance
- Bolt setting on a vertical face
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer / Model | Albion Engineering AT600-S (AT600S) |
| Tool Type | Air-powered multi-component cartridge applicator, suitcase (one-hand) handle |
| Capacity (as shipped) | Twin 300 ml cartridges (300 x 300 ml, 20.2 oz / 600 ml total) |
| Mix Ratio | As shipped 1:1; convertible to 2:1 with change-over parts included |
| Drive | Pneumatic, powered forward and reverse |
| Cartridge Outside Diameters | 1:1, 2 × 2 in. | 2:1, 2 × 1 15/32 in. |
| Cartridge Part Numbers | 741-G02 / 741-G03 (600 Series 1:1 and 2:1; change-over parts included) |
| Air Cylinder | 4 in. diameter |
| Listed Pressure | 90 PSI |
| Maximum Operating Pressure | 120 PSI |
| Thrust | 1,130 lbf |
| Air Consumption | 1 CFM |
| Quick Disconnect | 1/4 in. style J or M |
| Weight | 9.6 lb |
| Dimensions | 22.5 × 6.5 × 6.5 in. |
| Country of Origin | Taiwan |
| Bulletin | Bulletin 318B (202105); Bulletin 283C (201807) |
Product documents: PNEUMATIC MULTI-COMPONENT Cartridge Applicator Bulletin 318B (PDF) | 600 SERIES MULTI-COMPONENT Applicator - 1:1 & 2:1 MIX RATIOS Bulletin 283C (PDF) | AT-Line Operating Instructions (PDF)
Frequently Asked Questions
When should I run one-hand 1:1 Albion AT600-S overhead?
Use the AT600-S when a 1:1 300x300 cartridge has to run overhead or along a wall and one hand stays on the mixer. Two-hand AT600 is the better pick when that same 1:1 bead is in front of the body. Overhead stance is the reason for the suitcase.
When should I pick suitcase 1:1 Albion AT600-S instead of suitcase 2:1 AT600X2-S?
Pick the AT600-S when the datasheet calls for 1:1 as shipped in a 300 ml x 300 ml cartridge and you want one-hand suitcase control. Pick the AT600X2-S when the sheet calls for 2:1 as shipped in a 300 ml x 150 ml cartridge. Mix on the sheet is the reason.
How does a free hand help on a wall with the Albion AT600-S?
The AT600-S suitcase leaves a free hand to hold the mixer on a vertical 1:1 joint while shop air moves thick epoxy. That is the wall-and-overhead reason for this handle. Use two-hand AT600 when both hands can brace in front of you.
Does the Albion AT600-S convert to 2:1 as a published property?
Yes. The AT600-S ships as 1:1 and Albion publishes conversion to 2:1 as a property, with change-over parts included. This page does not walk a change-over procedure. If you want 2:1 as shipped in a suitcase, the live sister is the AT600X2-S.
Can the Albion AT600-S run 1:1 beads on floors as well as overhead?
Yes. Albion publishes the AT600-S suitcase for walls, floors, and horizontal joints, so a floor 1:1 line still gets one-hand control. Keep two-hand AT600 on deck work in front of the body.
How does thick 1:1 flow overhead on the Albion AT600-S?
Shop air drives the AT600-S so high-viscosity 1:1 epoxy keeps moving on an overhead joint instead of stalling a manual applicator. Start the regulator low and raise it until the overhead bead rate is right. Reverse retracts the pistons for reload at height.
