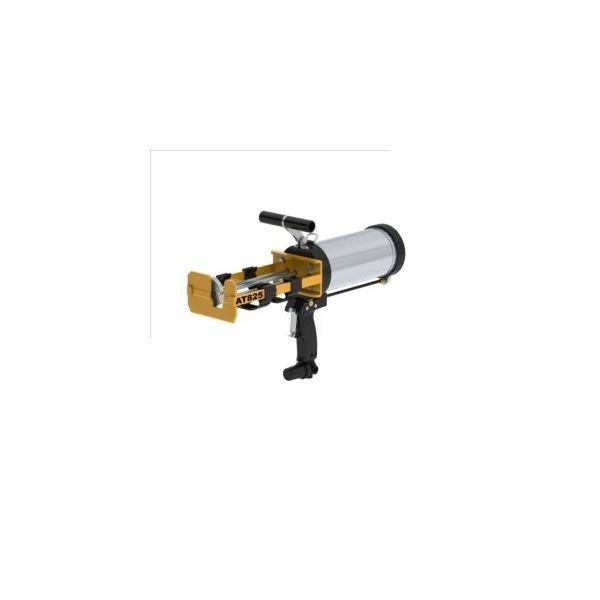

Albion AT825 Air Powered Cartridge Applicator 750ml x 75ml
Albion AT825 is a two-hand pneumatic applicator for 10:1 acrylic and epoxy PlasPak work, including Red Head A7.
- Two-hand control on thick 10:1 material
- PlasPak 10:1 path including Red Head A7
- Upright cartridge reload on the deck
$536.99
Availability:
In stock
Drop Shipped Albion AT825 Air-Powered Cartridge Applicator 750 ml x 75 ml
The Albion AT825 is a two-hand pneumatic applicator for 10:1 acrylic and epoxy in PlasPak-style cartridges, including the ITW Ramset Red Head A7 path. Anchoring crews keep both hands on the AT825 so thick 10:1 material stays on line while shop air moves the mix. Pneumatic reverse retracts the pistons so the next 10:1 cartridge reloads upright on the deck.
Looking for another option?
Key Features
- Two-hand control on thick 10:1 acrylic and epoxy
- PlasPak path including Red Head A7
- Shop-air reverse for 10:1 reload
- Upright stance for cartridge changes
- Quick exhaust stop on an anchor bead
- Two-hand brace on high-viscosity 10:1 cartridges
Applications
- 10:1 two-component acrylics and epoxies
- Anchoring where a 10:1 PlasPak cartridge is specified
- ITW Ramset Red Head A7 path
- Two-hand braced beads in front of the body
- Shop-air flow on thick 10:1 adhesive
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer / Model | Albion Engineering AT825 |
| Tool Type | Air-powered multi-component cartridge applicator, standard two-hand handle |
| Capacity | Twin 750 ml x 75 ml cartridges (825 ml total, 28 oz) |
| Mix Ratio | Fixed 10:1 |
| Drive | Pneumatic, powered forward and reverse |
| Cartridge Outside Diameters | 3 1/8 x 1 7/8 in. |
| Cartridge Part Number | Albion 741-G01 (A, 750 ml) and 741-G05 (B, 75 ml) |
| Compatible Cartridge Example | ITW Ramset Red Head A7 28 oz twin cartridge |
| Air Cylinder | 4 in. diameter |
| Rated Pressure / Thrust | 100 PSI / 1,250 lbf |
| Maximum Operating Pressure | 120 PSI |
| Air Consumption | 1 CFM |
| Quick Disconnect | 1/4 in. style J or M |
| Weight | 12 lb |
| Dimensions | 23 × 8 × 8 in. |
| Bulletin | Bulletin 318B (202105) |
Product documents: PNEUMATIC MULTI-COMPONENT Cartridge Applicator Bulletin 318B (PDF) | AT-Line Operating Instructions (PDF)
Frequently Asked Questions
Is the Albion AT825 the applicator for PlasPak and Red Head A7 10:1 cartridges?
Yes. Albion lists the AT825 for PlasPak-style 10:1 packs, including the ITW Ramset Red Head A7 twin cartridge. Anchoring crews pick it when the sheet calls for that 10:1 geometry and shop air is on the deck. Confirm the anchor sheet before you load.
When should I use two-hand Albion AT825 instead of the AT825-S suitcase?
Use the AT825 when both hands can stay on the applicator so a thick 10:1 bead stays on line in front of the body. Use the AT825-S suitcase when one hand has to run a wall, floor, or overhead A7 line. Handle stance is the choice on the same 10:1 cartridge.
When should I pick 10:1 Albion AT825 instead of 2:1 AT900 or 1:1 AT1500?
Pick the AT825 when the cartridge on the sheet is 10:1 PlasPak, including Red Head A7. Pick the AT900 when the sheet calls for 2:1 in a 600x300 cartridge, and the AT1500 when it calls for 1:1 in a 750x750 cartridge. Cartridge ratio on the sheet is the reason.
Why do thick 10:1 acrylics need shop air on the Albion AT825?
Shop air drives the AT825 so high-viscosity 10:1 acrylic or epoxy keeps moving instead of stalling a manual applicator on a long anchor string. Start the regulator low and raise it until the bead rate matches the hole. Reverse then retracts the pistons.
How does shop-air reverse help on 10:1 Albion AT825 work?
Pneumatic reverse on the AT825 retracts the pistons so the next PlasPak 10:1 cartridge loads upright on the deck. Quick exhaust stops the flow when you release the trigger, which matters on A7 anchoring where mixed material should not dribble.
Can crews set anchors with Red Head A7 through the Albion AT825?
Yes. The AT825 is the two-hand air path Albion publishes for the ITW Ramset Red Head A7 10:1 twin cartridge. Keep the mixer in the hole while both hands brace. Use AT825-S when that same A7 cartridge has to run one-handed along a wall or overhead line.
