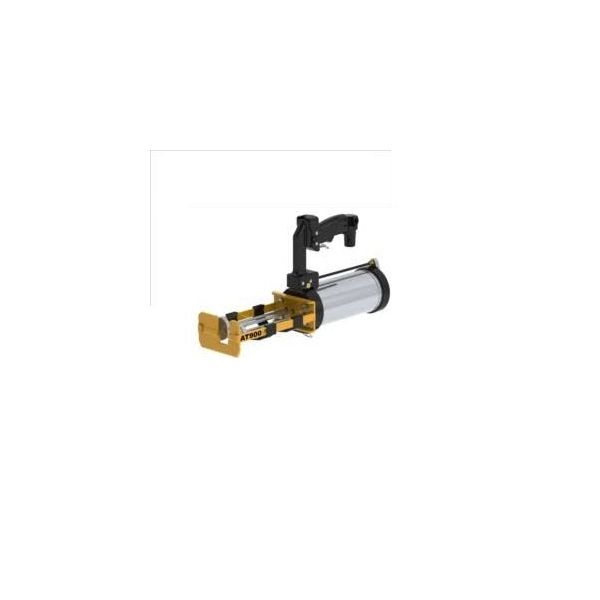

Albion AT900 Air Powered Cartridge Applicator 600ml x 300ml
Albion AT900 is a two-hand pneumatic applicator for 2:1 two-component material in 600 ml x 300 ml cartridges. Shop air moves high-viscosity 2:1 compound on joints and adhesive work while both hands stay on the bead.
- Fixed 2:1 mix on 600 ml x 300 ml cartridges
- Two-hand control on high-viscosity 2:1 joints
- Upright reload on 2:1 cartridges
$536.99
Availability:
In stock
Drop Shipped Albion AT900 Air-Powered Cartridge Applicator 600 ml x 300 ml
The Albion AT900 is a two-hand pneumatic applicator for 2:1 two-component material in a 600 ml x 300 ml carriage on joints and adhesive work. Crews keep both hands on the AT900 so high-viscosity 2:1 compound stays on line while shop air moves the mix. Pneumatic reverse retracts the pistons, and the AT900 stands upright for reload on the deck between 2:1 cartridges.
Looking for another option?
Key Features
- Two-hand 2:1 600x300 joints and adhesive work
- Shop-air reverse for cartridge reload
- Upright stance for loading
- Quick exhaust stop on a 2:1 bead
- Two-hand brace on high-viscosity 2:1 compound
- Fixed 2:1 carriage for 600x300 cartridges
Applications
- 2:1 two-component materials in 600x300 cartridges
- Construction joints where 2:1 is specified
- Adhesive work with a two-hand brace
- High-viscosity 2:1 beads in front of the body
- Shop-air flow on thick 2:1 compound
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer / Model | Albion Engineering AT900 |
| Tool Type | Air-powered multi-component cartridge applicator, standard two-hand handle |
| Capacity | Twin 600 ml x 300 ml cartridges (900 ml total, 30.4 oz) |
| Mix Ratio | Fixed 2:1 |
| Drive | Pneumatic, powered forward and reverse |
| Cartridge Outside Diameters | 2 13/16 x 2 in. |
| Cartridge Part Number | Albion 741-G07 (A, 600 ml) and 741-G02 (B, 300 ml) |
| Air Cylinder | 4 in. diameter |
| Rated Pressure / Thrust | 100 PSI / 1,250 lbf |
| Maximum Operating Pressure | 120 PSI |
| Air Consumption | 1 CFM |
| Quick Disconnect | 1/4 in. style J or M |
| Weight | 11.3 lb |
| Dimensions | 24 × 8.5 × 6 in. |
| Bulletin | Bulletin 318B (202105) |
Product documents: PNEUMATIC MULTI-COMPONENT Cartridge Applicator Bulletin 318B (PDF) | AT-Line Operating Instructions (PDF)
Frequently Asked Questions
When is the Albion AT900 600x300 2:1 carriage the right pick?
Use the AT900 when the datasheet calls for 2:1 in a 600 ml x 300 ml cartridge and both hands can brace the bead. That is a joint and adhesive path, not a 10:1 PlasPak path. Confirm cartridge geometry on the current material sheet.
When should I use two-hand Albion AT900 instead of the AT900-S suitcase?
Use the AT900 when both hands can stay on the applicator so a 2:1 joint stays on line in front of the body. Use the AT900-S suitcase when one hand has to run a wall, floor, or horizontal joint. Handle stance is the choice on the same 2:1 cartridge.
When should I pick 2:1 Albion AT900 instead of 10:1 AT825 or 1:1 AT1500?
Pick the AT900 when the sheet calls for 2:1 in a 600x300 cartridge. Pick the AT825 when the sheet calls for 10:1 PlasPak, and the AT1500 when it calls for 1:1 in a 750x750 cartridge. Cartridge ratio on the sheet is the reason.
How does two-hand control help on an Albion AT900 joint?
Two-hand AT900 control keeps high-viscosity 2:1 compound on line when the joint is in front of the body. Shop air moves the mix while both hands brace. Switch to AT900-S when that same 2:1 cartridge has to run one-handed along a wall or floor.
How does shop-air reverse help on 2:1 Albion AT900 work?
Pneumatic reverse on the AT900 retracts the pistons so the next 600x300 2:1 cartridge loads upright on the deck. Start the regulator low and raise it until the 2:1 bead rate matches the joint. Quick exhaust stops the flow when you release the trigger.
Is the Albion AT900 built for high-viscosity 2:1 adhesive as well as joints?
Yes. Albion lists the AT900 for 2:1 two-component materials on joints and adhesive work. The 4 in. air cylinder on the AT-Line is what keeps thick 2:1 compound moving. Confirm the adhesive sheet for 600x300 geometry.
