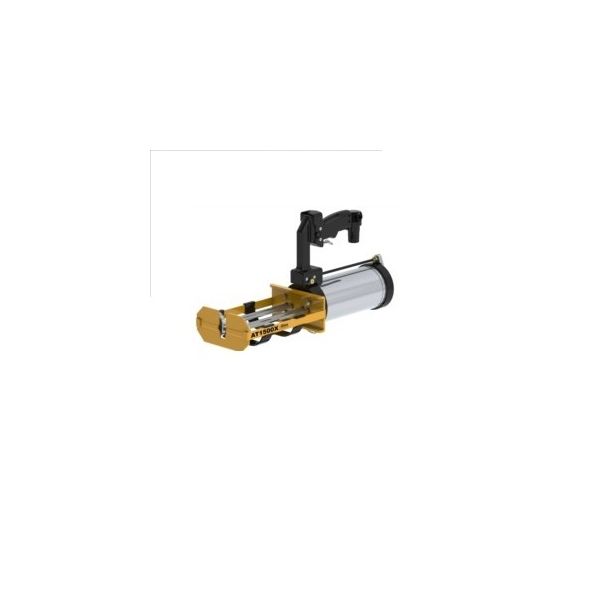

Albion AT1500X-S Air Powered Cartridge Applicator 750ml x 750ml
Albion AT1500X-S is a suitcase top-load pneumatic applicator for 1:1 work on roofs, walls, and floors.
- One-hand suitcase on roofs and walls
- Top-load drop-in at working height
- Listed spray path on a roof plane
$612.58
Availability:
In stock
Drop Shipped Albion AT1500X-S Air-Powered Cartridge Applicator 750 ml x 750 ml
The Albion AT1500X-S is a suitcase top-load pneumatic applicator for 1:1 two-component work on roofs, walls, and floors. Cartridges drop in from above, and the suitcase handle leaves one hand free to keep the mixer on a roof plane or wall line. Roofing and restoration crews pick the AT1500X-S when one-hand top-load is the faster path, including a listed spray path.
Looking for another option?
Key Features
- One-hand suitcase on roofs, walls, and floors
- Top-load drop-in instead of a side-load feed
- Roofing beads with a free hand on the mixer
- Listed spray path with adapter 1042-2
- Shop-air reverse for reload at height
- Upright stance for cartridge changes
Applications
- Roofing adhesives and sealants on a roof plane
- Wall joints with one-hand top-load control
- Floor joints where a free hand guides the mixer
- Listed spray path including coatings
- Restoration 1:1 work at height
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer / Model | Albion Engineering AT1500X-S |
| Tool Type | Air-powered multi-component cartridge applicator, suitcase (one-hand) handle, top-load |
| Capacity | Twin 750 ml cartridges (750 x 750 ml, 50.7 oz / 1,500 ml total) |
| Mix Ratio | Fixed 1:1 |
| Drive | Pneumatic, powered forward and reverse |
| Carriage | Top-load |
| Cartridge Outside Diameters | 3 1/8 x 3 1/8 in. |
| Cartridge Part Number | Albion 741-G01 (A and B) |
| Air Cylinder | 4 in. diameter |
| Maximum Operating Pressure | 120 PSI |
| Thrust | 1,500 lbf |
| Air Consumption | 1 CFM |
| Quick Disconnect | 1/4 in. style J or M |
| Weight | 12 lb |
| Dimensions | 24 × 9 × 10 in. |
| Special Applications (published) | Roofing |
| Spray option (published) | Adapter 1042-2 or AT1500X-S3 |
| Bulletin | Bulletin 318B (202105) |
Product documents: PNEUMATIC MULTI-COMPONENT Cartridge Applicator Bulletin 318B (PDF) | AT-Line Operating Instructions (PDF)
Frequently Asked Questions
When should I pick the Albion AT1500X-S for roofing instead of a two-hand top-load?
Use the AT1500X-S when the 1:1 bead runs along a roof plane and one hand has to keep the mixer on the work. Two-hand AT1500X is the better pick when you are on the deck in front of your body. Roof stance is the reason for the suitcase, not a different cartridge.
Can the Albion AT1500X-S follow a listed spray path on a roof?
Albion lists adapter 1042-2 as a spray path on the AT1500X-S, the same listed spray use as the two-hand top-load sister. That is a published coating path, not a how-to. Keep the adapter with the applicator when the spec calls for spray on a roof or wall.
When should I pick suitcase top-load Albion AT1500X-S instead of suitcase side-load AT1500S?
Pick the AT1500X-S when you want the cartridge to drop in from above on a roof, wall, or floor. Pick the AT1500S when you want a rigid side-load carriage with the same one-hand suitcase. Top-load drop-in versus side-load stiffness is the choice.
How does one-hand top-load help on a wall with the Albion AT1500X-S?
The AT1500X-S suitcase leaves a free hand for the mixer while the cartridge drops in from above, so you are not feeding a side-load frame on a vertical face. Shop air then moves 1:1 material along the wall. Use two-hand AT1500X when both hands can brace in front of you.
Is the Albion AT1500X-S useful on floors as well as roofs?
Yes. Albion publishes the AT1500X-S suitcase for walls, floors, and roofs, so one-hand top-load is not only a roofing tool. Horizontal floor joints still get a free hand on the mixer. Match the handle to the plane you are working.
How does shop-air reverse help the Albion AT1500X-S at height?
Pneumatic reverse on the AT1500X-S retracts the pistons so the next 1:1 cartridge drops in while you are still on a roof or wall. You do not have to climb down to reload. Start the regulator low and raise it until the bead on that plane is right.
