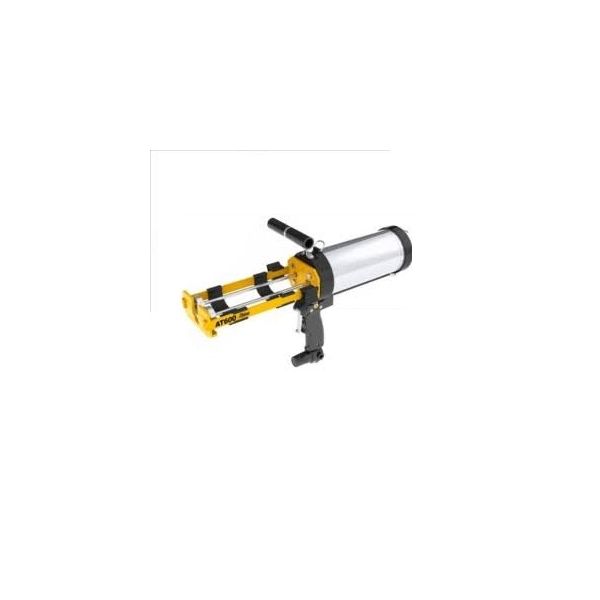

Albion AT600X2 Air Powered Cartridge Applicator 300ml x 150ml
Albion AT600X2 is a two-hand pneumatic applicator for 2:1 epoxy and adhesive in 300 ml x 150 ml cartridges. Shop air moves thick 2:1 material while both hands keep the mix on restoration and anchoring joints.
- As-shipped 2:1 on 300 ml x 150 ml cartridges
- Two-hand control on 2:1 joints
- Thick 2:1 flow on restoration and anchor cartridges
$547.98
Availability:
In stock
Drop Shipped Albion AT600X2 Air-Powered Cartridge Applicator 300 ml x 150 ml
The Albion AT600X2 is a two-hand pneumatic applicator for 2:1 epoxy and adhesive that ships for 300 ml x 150 ml cartridges. Restoration and anchoring crews keep both hands on the AT600X2 so a 2:1 mix stays on the joint while shop air moves thick material. Conversion to 1:1 is a published property, with change-over parts included, not a procedure on this page.
Looking for another option?
Key Features
- Two-hand as-shipped 2:1 300x150 work
- Shop-air reverse for cartridge reload
- Ships as 2:1 and is convertible to 1:1 as a property
- Upright stance for loading
- Quick exhaust stop on a 2:1 bead
- Two-hand brace on restoration and anchor work
Applications
- Construction joints with 2:1 two-component epoxy
- Crack injection on 2:1 300x150 cartridges
- Chemical anchors where 2:1 is specified
- Two-hand braced 2:1 beads
- Restoration adhesive with shop-air flow
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer / Model | Albion Engineering AT600X2 |
| Tool Type | Air-powered multi-component cartridge applicator, two-hand standard handle |
| Capacity (as shipped) | Twin 300 ml x 150 ml cartridges (15.2 oz / 450 ml total) |
| Mix Ratio | As shipped 2:1; convertible to 1:1 with change-over parts included |
| Drive | Pneumatic, powered forward and reverse |
| Cartridge Outside Diameters | 1:1, 2 × 2 in. | 2:1, 2 × 1 15/32 in. |
| Cartridge Part Numbers | 741-G02 / 741-G03 (600 Series 1:1 and 2:1; change-over parts included) |
| Air Cylinder | 4 in. diameter |
| Listed Pressure | 90 PSI |
| Maximum Operating Pressure | 120 PSI |
| Thrust | 1,130 lbf |
| Air Consumption | 1 CFM |
| Quick Disconnect | 1/4 in. style J or M |
| Weight | 10.1 lb |
| Dimensions | 22.5 × 6.5 × 6.5 in. |
| Country of Origin | Taiwan |
| Bulletin | Bulletin 318B (202105); Bulletin 283C (201807) |
Product documents: PNEUMATIC MULTI-COMPONENT Cartridge Applicator Bulletin 318B (PDF) | 600 SERIES MULTI-COMPONENT Applicator - 1:1 & 2:1 MIX RATIOS Bulletin 283C (PDF) | AT-Line Operating Instructions (PDF)
Frequently Asked Questions
When should I pick as-shipped 2:1 Albion AT600X2 instead of as-shipped 1:1 AT600?
Pick the AT600X2 when the datasheet calls for 2:1 in a 300 ml x 150 ml cartridge as shipped. Pick the AT600 when the sheet calls for 1:1 in a 300 ml x 300 ml cartridge as shipped. Mix on the sheet is the reason. Each lists conversion the other way as a property, not as a procedure here.
When should I use two-hand Albion AT600X2 instead of the AT600X2-S suitcase?
Use the AT600X2 when both hands can stay on the applicator so a 2:1 joint stays on line in front of the body. Use the AT600X2-S suitcase when one hand has to run a wall or floor. Handle stance is the choice on the same as-shipped 2:1 cartridge.
Does the Albion AT600X2 convert to 1:1 as a published property?
Yes. The AT600X2 ships as 2:1 and Albion publishes conversion to 1:1 as a property, with change-over parts included. This page does not walk a change-over procedure. If you want 1:1 as shipped, the live two-hand sister is the AT600.
Which restoration 2:1 jobs is the Albion AT600X2 built for?
Albion lists the AT600X2 for 2:1 two-component epoxies and adhesives on construction joints, crack injection, and bolt setting. Two-hand control keeps the mixer on the joint while shop air moves thick 2:1 material. Confirm the sheet for 300x150 geometry.
Can crews set anchors with two-hand Albion AT600X2 on a 2:1 pack?
Yes. Anchoring crews use the AT600X2 when the chemical-anchor sheet calls for 2:1 in a 300x150 cartridge and both hands can brace the mixer in the hole. Shop air keeps thick 2:1 epoxy moving. Use AT600 when that same hole is specified 1:1.
How does shop-air reverse help on the Albion AT600X2?
Pneumatic reverse on the AT600X2 retracts the pistons so the next 2:1 cartridge loads on the deck. Start the regulator low and raise it until the 2:1 bead rate matches the joint. Quick exhaust stops the flow when you release the trigger.
