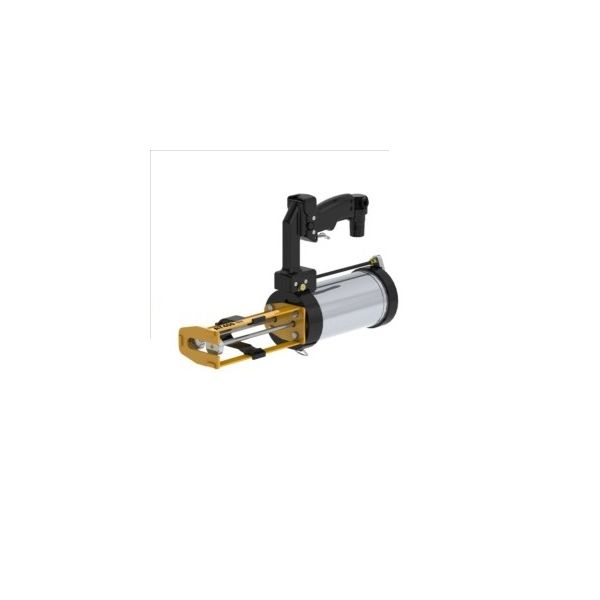

Albion AT400X4-S Air Powered Cartridge Applicator 4:1 415ml
Albion AT400X4-S is a suitcase pneumatic applicator for 4:1 415 ml work on walls, floors, and long joints.
- One-hand suitcase on long 4:1 joints
- Fixed 4:1 carriage
- Upright reload at working height
$569.48
Availability:
In stock
Drop Shipped Albion AT400X4-S Air-Powered Cartridge Applicator Suitcase 4:1 415 ml
The Albion AT400X4-S is a suitcase pneumatic applicator for 4:1 two-component material in a 415 ml cartridge on walls, floors, and long joints. The suitcase handle leaves one hand free to keep the mixer in the slot while shop air moves the 4:1 mix. Crews pick the AT400X4-S when the datasheet calls for 4:1 and the bead runs along a plane instead of in front of the body.
Looking for another option?
Key Features
- One-hand suitcase 4:1 on walls and floors
- Fixed 4:1 415 ml carriage
- Shop-air reverse for reload at height
- Upright stance for cartridge changes
- Free hand to keep the mixer in the slot
- Long horizontal 4:1 joints with one-hand control
Applications
- 4:1 two-component adhesives on walls and floors
- Long horizontal joints where 4:1 is specified
- One-hand suitcase control on a wall plane
- Floor beads with a free hand on the mixer
- Shop-air flow on 4:1 material at height
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer / Model | Albion Engineering AT400X4-S |
| Tool Type | Air-powered multi-component cartridge applicator, suitcase (one-hand) handle |
| Capacity | 415 ml (14 oz) twin side-by-side cartridge |
| Mix Ratio | Fixed 4:1 |
| Cartridge Outside Diameters | 1 15/16 × 1 31/32 in. |
| Cartridge Length | 7-1/4 in. (Bulletin 363C) |
| Drive | Pneumatic, powered forward and reverse |
| Air Cylinder | 4 in. diameter |
| Thrust | 1,130 lbf at 90 PSI (AT400X4 official 4:1 AT-line specification) |
| Maximum Operating Pressure | 120 PSI |
| Air Consumption | 1 CFM |
| Quick Disconnect | 1/4 in. style J or M |
| Weight | Not published separately for AT400X4-S on the current Albion product page |
| Dimensions | Not published separately for AT400X4-S on the current Albion product page |
| Handle / Regulator Parts | 957-2 patented suitcase handle; 957-13 handle assembly |
| Bulletin | Bulletin 318B (202105); Bulletin 363C (202011) |
Product documents: PNEUMATIC MULTI-COMPONENT Cartridge Applicator Bulletin 318B (PDF) | 400 SERIES MULTI-COMPONENT Applicator - 1:1, 2:1, 4:1 & 10:1 MIX RATIOS Bulletin 363C (PDF) | AT-Line Operating Instructions (PDF)
Frequently Asked Questions
When should I run suitcase 4:1 Albion AT400X4-S on a long joint?
Use the AT400X4-S when a 4:1 415 ml cartridge has to travel a wall, floor, or long horizontal joint and one hand stays on the mixer. Two-hand AT400X4 is the better pick when that same 4:1 bead is in front of the body. Plane of the joint decides the handle.
When should I pick Albion AT400X4-S instead of suitcase 1:1/2:1 AT400-S?
Pick the AT400X4-S when the datasheet calls for 4:1 in a 415 ml cartridge and you want one-hand suitcase control. Pick the AT400-S when the sheet calls for 1:1 or 2:1 in a 400-series cartridge. Ratio on the sheet is the reason, not the suitcase handle.
How does one-hand 4:1 help on a wall with the Albion AT400X4-S?
The AT400X4-S suitcase leaves a free hand for the mixer while shop air moves 4:1 adhesive along a wall. You are not fighting a two-hand grip on a vertical plane. Use two-hand AT400X4 when both hands can brace in front of you.
Can the Albion AT400X4-S run 4:1 beads on floors as well as walls?
Yes. Albion publishes the AT400X4-S suitcase for walls, floors, and horizontal joints, so a long floor 4:1 line still gets one-hand control. Keep two-hand AT400X4 on bench and scaffold work in front of the body.
How do I keep the mixer in the slot on the Albion AT400X4-S?
The AT400X4-S suitcase is built so one hand runs the joint while the other holds the mixer in the slot on a long 4:1 bead. That is the one-hand reason for this handle. Shop air then moves the mixed material along the plane.
How does shop air help 4:1 flow on the Albion AT400X4-S?
Shop air drives the AT400X4-S so high-viscosity 4:1 adhesive keeps moving on a long wall or floor joint. Start the regulator low and raise it until the bead rate matches the plane. Reverse retracts the pistons for reload at working height.
