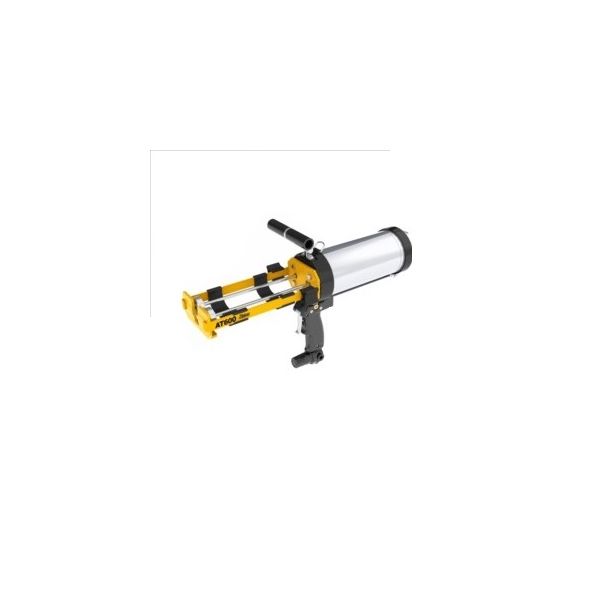

Albion AT600 Air Powered Cartridge Applicator 300ml x 300ml
Albion AT600 is a two-hand pneumatic applicator for 1:1 epoxy joints, crack injection, and anchors.
- Two-hand brace on 1:1 300x300 work
- Shop-air flow on thick 1:1 epoxy
- Convertible to 2:1 as a published property
$580.43
Availability:
In stock
Drop Shipped Albion AT600 Air-Powered Cartridge Applicator 300 ml x 300 ml
The Albion AT600 is a two-hand pneumatic applicator for 1:1 epoxy and adhesive on construction joints, crack injection, and chemical anchors. It ships as 1:1 for 300 ml x 300 ml cartridges and is convertible to 2:1 as a published property. Crews keep both hands on the AT600 so thick 1:1 material stays on line while shop air does the work on the deck.
Looking for another option?
Key Features
- Two-hand 1:1 300x300 joints, crack injection, and anchors
- Shop-air flow on thick 1:1 epoxy
- Upright stance for cartridge reload
- Quick exhaust stop on a 1:1 bead
- Ships as 1:1 and is convertible to 2:1 as a property
- Pneumatic reverse for the next cartridge
Applications
- Construction joints with 1:1 two-component epoxy
- Crack injection on 1:1 300x300 cartridges
- Chemical anchors and bolt setting
- Two-hand braced beads in front of the body
- Shop-air flow on thick 1:1 adhesive
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer / Model | Albion Engineering AT600 |
| Tool Type | Air-powered multi-component cartridge applicator, two-hand standard handle |
| Capacity (as shipped) | Twin 300 ml cartridges (300 x 300 ml, 20.2 oz / 600 ml total) |
| Mix Ratio | As shipped 1:1; convertible to 2:1 with change-over parts included |
| Drive | Pneumatic, powered forward and reverse |
| Cartridge Outside Diameters | 1:1, 2 × 2 in. | 2:1, 2 × 1 15/32 in. |
| Cartridge Part Numbers | 741-G02 / 741-G03 (600 Series 1:1 and 2:1; change-over parts included) |
| Air Cylinder | 4 in. diameter |
| Listed Pressure | 90 PSI |
| Maximum Operating Pressure | 120 PSI |
| Thrust | 1,130 lbf |
| Air Consumption | 1 CFM |
| Quick Disconnect | 1/4 in. style J or M |
| Weight | 9.6 lb |
| Dimensions | 22.5 × 6.5 × 6.5 in. |
| Country of Origin | Taiwan |
| Bulletin | Bulletin 318B (202105); Bulletin 283C (201807) |
Product documents: PNEUMATIC MULTI-COMPONENT Cartridge Applicator Bulletin 318B (PDF) | 600 SERIES MULTI-COMPONENT Applicator - 1:1 & 2:1 MIX RATIOS Bulletin 283C (PDF) | AT-Line Operating Instructions (PDF)
Frequently Asked Questions
When should I pick as-shipped 1:1 Albion AT600 instead of as-shipped 2:1 AT600X2?
Pick the AT600 when the datasheet calls for 1:1 in a 300 ml x 300 ml cartridge. Pick the AT600X2 when the sheet calls for 2:1 in a 300 ml x 150 ml cartridge as shipped. Mix on the sheet is the reason. Each model also lists conversion the other way as a property, not as a procedure on this page.
When should I use two-hand Albion AT600 instead of the AT600-S suitcase?
Use the AT600 when both hands can stay on the applicator so a 1:1 joint, crack, or anchor stays on line in front of the body. Use the AT600-S suitcase when one hand has to run a wall, floor, or overhead line. Handle stance is the choice on the same as-shipped 1:1 cartridge.
Which 1:1 jobs is the Albion AT600 built for?
Albion lists the AT600 for construction joints, crack injection, adhesive placement, and bolt setting with 1:1 two-component epoxy and adhesive. That is the 600-series 1:1 jobsite path. Shop air keeps thick 1:1 material moving on those placements.
Does the Albion AT600 ship as 1:1 with 2:1 conversion as a published property?
Yes. The AT600 ships set up for 1:1 300 ml x 300 ml cartridges and Albion publishes conversion to 2:1 as a property, with change-over parts included. This page does not walk a change-over procedure. If you want 2:1 as shipped, the live sister is the AT600X2.
When is shop-air Albion AT600 a better pick than a manual 600 ml applicator?
Use the AT600 when thick 1:1 epoxy would stall a manual 600 ml applicator on a long joint or a deep anchor hole. Shop air moves the material while both hands brace. Keep a manual 26:1 twin such as the B26T600 when shop air is not on the deck.
Can crews inject cracks with the Albion AT600?
Yes. Albion lists crack injection among AT600 uses on 1:1 two-component epoxy. Two-hand control keeps the mixer on the crack while shop air meters the flow. Quick exhaust stops the bead when the crack takes what it needs.
