Unisorb Standard V-100 Epoxy Grout 22 Pound Kit

Unisorb Standard V-100 epoxy grout, 22 lb kit, about 0.21 cu ft. Two-component filled epoxy for machine bases and anchors. Place in 10 to 15 minutes. 1/2 to 1 1/2 in clearance.

22 lb kit, about 0.21 cu ft
Mix 2-3 min; place in 10-15 min
Clearance 1/2 in to 1 1/2 in

$264.82

Drop Shipped

Details

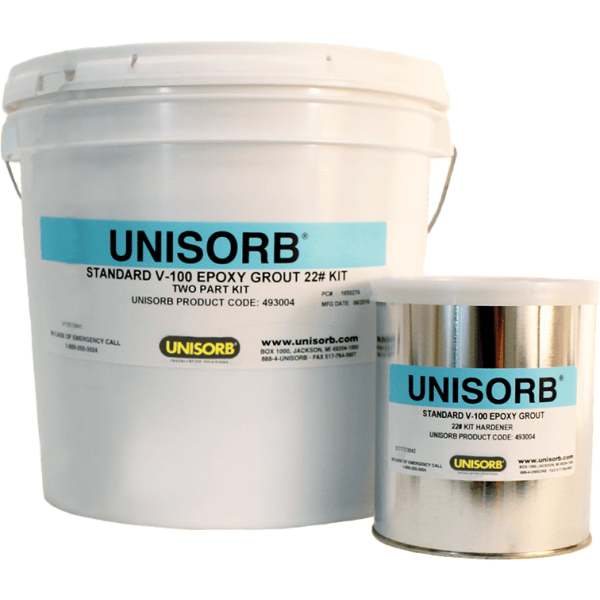

Unisorb Standard V-100 Epoxy Grout, 22 lb Kit

Unisorb Standard V-100 is a two-component filled epoxy grout for machine bases, anchor bolts, Fixators, sole plates, and foundation repair. This 22 lb kit yields about 0.21 cu ft. Mix 2 to 3 minutes, then you have about 10 to 15 minutes to place. Designed clearance is 1/2 in to 1 1/2 in. Maximum 1 in unconfined, 1 1/2 in under a steel plate. At 77 F a 1/2 in section is ready in about 8 hours. 100% solids. The 11 lb and 55 lb kits are not listed here. V-1 cement grout is listed separately.

Key Features

Two-component filled epoxy grout
22 lb kit, about 0.21 cu ft
10 to 15 minutes to place after mix
Designed clearance 1/2 in to 1 1/2 in
About 8 hours to use at 77 F on 1/2 in
100% solids; flows under machine bases

Applications

Grouting machine bases
Setting anchor bolts and Vector Bolts
Fixators, sole plates, foundation repair

Technical Specifications

Property	Value
Manufacturer	Unisorb
Product	Standard V-100 Epoxy Grout
Bulletin	GB-0198-1.1 Rev. 3
This pack	22 lb kit, 0.21 cu ft
Other packs	11 lb 0.10 cu ft and 55 lb 0.53 cu ft, not listed
Placement time	10-15 min
Mix	2-3 min, then place
Clearance	1/2 in to 1 1/2 in
Max thickness	1 in unconfined; 1 1/2 in under steel
Ready	about 8 hr at 77 F on 1/2 in
Compressive, 1 day	14,020 psi
Service temp	200 F
