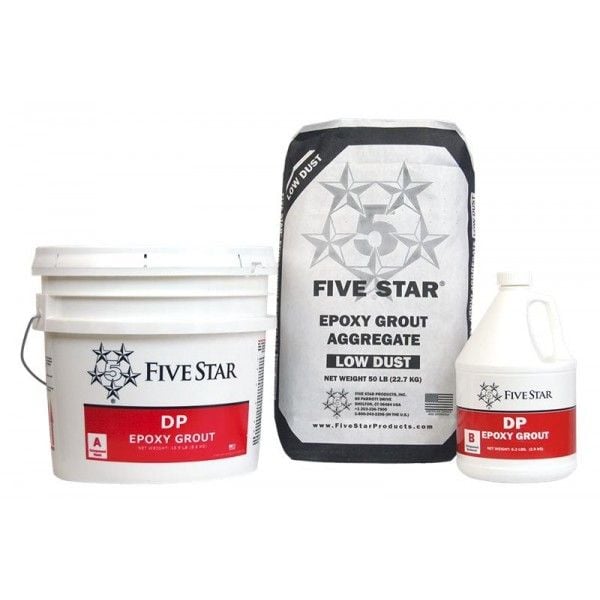

Five Star DP Epoxy Grout 2.0 33610
Five Star DP Epoxy Grout Standard Flow is a three-component expansive non-shrink epoxy machinery grout in a 2.0 cu ft unit for deep pours under precision equipment. Low exotherm and high creep resistance support large bases with high effective bearing area.
- Standard Flow unit yields approximately 2.0 cu ft
- 1 in minimum plate clearance for deeper pours
- 95% effective bearing area with proper placement
$599.08
Five Star DP Epoxy Grout Standard Flow
Five Star DP Epoxy Grout Standard Flow is a three-component expansive non-shrink epoxy grout for deep machinery pours that need high strength, creep resistance, and high effective bearing area. The Standard Flow unit mixes to approximately 2.0 cu ft with a 1 in minimum plate clearance. The High Flow 1.75 cu ft unit fills gaps as tight as 1/2 in when clearance is the limiter.
Key Features
- Expansive non-shrink epoxy system with low exotherm for large pours
- Standard Flow unit yields approximately 2.0 cu ft of hardened grout
- 1 in minimum plate clearance for deep machinery placements
- 95% effective bearing area when placed to Five Star guidance
- Superior creep resistance under continuous machinery load
- Pour or pump with a headbox across the shortest distance
Applications
- Precision machinery and equipment baseplates
- Deep epoxy grouting under compressors, turbines, and mills
- Foundation rebuilds with at least 1 in plate clearance
- Large-volume pours where Standard Flow depth is specified
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Five Star Products |
| Product | DP Epoxy Grout Standard Flow |
| Type | Three-component expansive epoxy machinery grout |
| Unit yield | Approximately 2.0 cu ft (5-bag Standard Flow) |
| Min plate clearance | 1 in (25 mm) |
| Placement depth | Up to 36 in Standard Flow (contact Five Star above that) |
| Effective bearing area | 95% with proper placement |
| 7-day compressive (ASTM C579 B) | Approximately 14,000 psi Standard Flow |
| Ambient placement range | 55 F to 95 F |
| MPN | 33610 |
Product documents: DP Epoxy Grout Technical Data Sheet (PDF)
Frequently Asked Questions
What plate clearance fits Five Star DP Epoxy Grout Standard Flow?
It needs at least 1 in under the plate. High Flow covers gaps as tight as 1/2 in. Use this grade when depth and clearance allow the 5-bag unit.
What unit yield is the Five Star DP Epoxy Grout Standard Flow 2.0 kit?
The 5-bag unit yields approximately 2.0 cu ft of hardened grout from one resin, one hardener, and five aggregate bags.
What effective bearing area does Five Star DP Epoxy Grout Standard Flow target?
Approximately 95% effective bearing area when placed to Five Star guidance, the same EBA target published for High Flow.
What 7-day compressive strength does Five Star DP Epoxy Grout Standard Flow reach?
Approximately 14,000 psi at 7 days by ASTM C579 B on this mix, with post-cure values higher on the TDS table.
What creep performance does Five Star DP Epoxy Grout Standard Flow claim?
The formula is built for superior creep resistance under continuous machinery load, paired with high compressive strength and modulus on the TDS.
What ambient temperature range suits Five Star DP Epoxy Grout Standard Flow?
Ambient placement is 55 F to 95 F. Keep grout, substrate, and equipment above 55 F until the required compressive strength develops.
