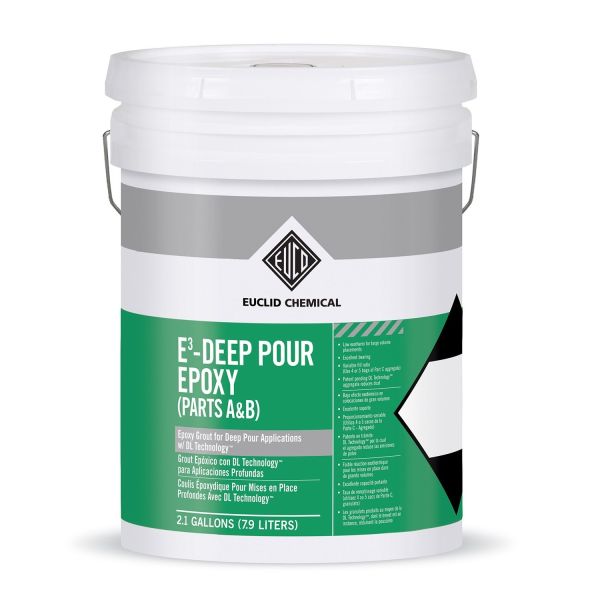

Euclid E3 Deep Pour Epoxy Grout 1.4 CF
Euclid E3-Deep Pour is a three-component high-strength epoxy grout for machine and equipment bases that need deep placements. DL Technology aggregate cuts mixing dust.
- Deep placements up to 18 in per lift
- Greater than 95% effective bearing area
- Expansive/non-shrink
$328.38
Availability:
In stock
Euclid E3-Deep Pour Epoxy Grout, 1.4 CF Kit
Euclid E3-Deep Pour is a three-component, high-strength epoxy grout for machine and equipment bases that need deep placements. Patented DL Technology aggregate cuts the dust released while mixing and handling. The mix is expansive and non-shrink, with low exotherm for large-volume placements under tanks, turbines, housings, and rebuilt foundations.
Key Features
- Deep-pour epoxy grout for machine and equipment bases
- DL Technology aggregate cuts mixing dust
- Expansive/non-shrink with greater than 95% effective bearing area
- Stable in deep placements; up to 18 in per lift
- Low exotherm for large-volume applications
- Long working time
Applications
- Large/deep precision placements under machinery
- Rebuilding foundations, bases, and columns
- Tanks, turbines, and housings
- Pour-backs for post-tension projects
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Euclid Chemical |
| Product | E3-Deep Pour |
| Type | Deep-pour epoxy grout with DL Technology aggregate |
| Yield | 1.40 ft³ standard kit (5 aggregate bags) |
| Working time | 90 minutes |
| Thickness per lift | 1 to 18 in |
| Effective bearing area | > 95% |
| Compressive strength | 11,000 psi at 1 day; 15,000 psi at 28 days |
| Bond strength | 3,600 psi at 28 days |
| Peak exotherm | 102°F |
| API 610 Appendix L | Yes, baseplate and soleplate grouting |
| Packaging | 1.40 ft³ kit |
| Shelf life | 2 years unopened |
Product documents: E3-Deep Pour Technical Data Sheet
Frequently Asked Questions
When should I use Euclid E3-Deep Pour?
Use Euclid E3-Deep Pour for grouting machine and equipment bases that need deep placements. Euclid lists large/deep volume precision placements, rebuilding foundations, bases and columns, vibration dampening for equipment, tanks, turbines and housings, and pour-backs for post tension projects.
How thick can Euclid E3-Deep Pour be placed in one lift?
Euclid publishes a 1 in minimum and 18 in maximum per lift for Euclid E3-Deep Pour on the standard mix. The high-flow mix is up to 9 in per lift.
What effective bearing area does Euclid E3-Deep Pour achieve against a baseplate?
Euclid rates Euclid E3-Deep Pour at greater than 95% effective bearing area, meaning the grout contacts the plate instead of leaving voids.
What compressive strength does Euclid E3-Deep Pour reach?
Euclid publishes 11,000 psi at 1 day and 15,000 psi at 28 days on the standard unit.
What working time does Euclid E3-Deep Pour have?
Euclid publishes 90 minutes working time on the standard mix and 70 minutes on the high-flow mix.
What API standard does Euclid E3-Deep Pour meet?
Euclid publishes that Euclid E3-Deep Pour meets API Standard 610, Appendix L for baseplate and soleplate grouting.
