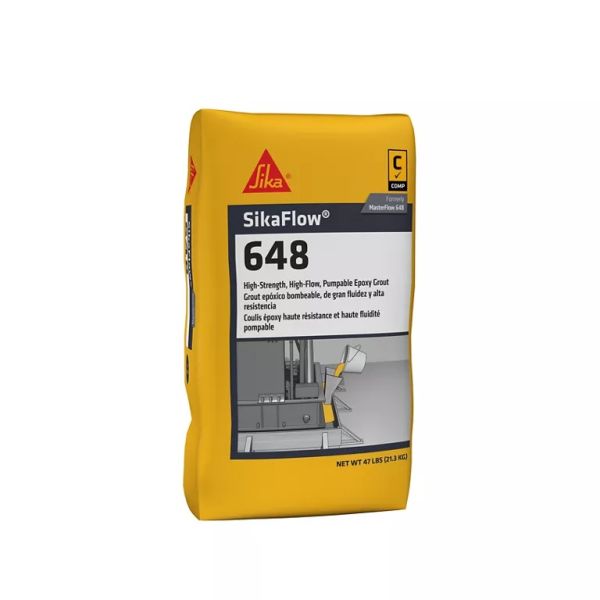

Sika SikaFlow 648 Low Dust Kit 1.7CF Unit

SikaFlow 648 is a three-component modified epoxy resin-based precision grout that combines high-temperature performance and crack resistance with excellent flow characteristics. SikaFlow 648 provides high early and 7 day strengths as well as excellent resistance to high operating temperatures and crack inducing vibration.

Excellent Flowability
High Early Strengths
Low-Dust Formula

$480.91

Availability: In stock ( 54 Available )

SKU

14941

Details

Sika SikaFlow 648 Low Dust Epoxy Grout – 1.73 CF Unit

SikaFlow 648 is a three-component, high-strength, high-flow epoxy precision grout for critical equipment alignment and load transfer. It offers excellent chemical resistance, low creep for long-term alignment, and very low shrinkage for full baseplate contact. With variable fill ratio for desired flow, extended working time, pumpability, and simple soap-and-water cleanup, it is ideal for pouring or pumping depths up to 6 inches in demanding industrial environments.

Have other project demands?

Key Features

High-flow, precision epoxy grout with variable fill ratio for desired flowability.
High early and ultimate strengths; retains properties at elevated temperatures.
Low creep maintains long-term equipment alignment.
Very low shrinkage for full baseplate contact and effective load transfer.
Excellent chemical resistance for challenging industrial environments.
Extended working time; pumpable for large installations.
Low-dusting formulation; soap-and-water cleanup.
Resists water and chloride intrusion; excellent freeze/thaw resistance.

Applications

Precision alignment of compressors, generators, pumps, fans, and electric motors.
Crane rail grouting; sole plates; wind turbine tower bases.
Rolling, stamping, grinding, and crushing mills; forging hammers; high-torque machinery.
Pour-back grouting for post-tensioning cables.
Anchors, bars, and dowels in concrete foundations.
Industries: chemical processing, oil and gas, power generation, LNG, pulp and paper, steel, mining.

Technical Specifications

Composition	Three-component epoxy grout (Resin, Hardener, Aggregate)
Compressive Strength (ASTM C579, Method B)	At 77°F: 10,800 psi at 24 h; 12,100 psi at 2 d; 13,000 psi at 3 d; 13,400 psi at 4 d. Post-cured: up to 16,000 psi depending on fill ratio.
Flexural Strength (ASTM C580)	4,700 psi (4-bag mix); 4,300 psi (3-bag mix) at 73°F.
Tensile Strength (ASTM C307)	2,000 psi (4-bag mix); 1,800 psi (3-bag mix).
Modulus in Flexure (ASTM C580)	2.5 × 10^6 psi (4-bag); 2.3 × 10^6 psi (3-bag).
Shrinkage (ASTM C531)	0.014% (4-bag mix); 0.031% (3-bag mix) unrestrained linear.
Creep (ASTM C1181, 140°F, 28 d)	3.8 × 10^-3 at 400 psi; 4.2 × 10^-3 at 600 psi (4-bag mix).
Coefficient of Thermal Expansion (ASTM C531)	18 × 10^-6 in/in/°F (4-bag); 20 × 10^-6 in/in/°F (3-bag) from 73 to 210°F.
Working Time / Pot Life	90–120 min at 70°F; 50–60 min at 90°F; 120–150 min at 50°F.
Placement Range	Minimum depth ~1/2 in; maximum depth up to 6 in (with proper procedures).
Packaging	1.7 CF unit: 216.6 lb set (Part A 22 lb, Part B 6.6 lb, four 47 lb bags Part C). 0.4 CF unit: 54.4 lb set (Part A 5.5 lb, Part B 1.65 lb, one 47 lb bag Part C).
Appearance / Color	Dark gray
Shelf Life	24 months when properly stored at 60–80°F, dry, out of sunlight.

Frequently Asked Questions

What is SikaFlow 648 used for?
Precision grouting of heavy equipment, crane rails, sole plates, wind tower bases, and high-torque machinery where high flow and chemical resistance are required.

How does fill ratio affect performance?
The 4-bag mix delivers maximum bearing and lowest shrinkage; the 3-bag mix increases flow. Both achieve high strength with excellent load transfer.

Can it be pumped?
Yes. It is designed for pumping or pouring with extended working time to maintain continuous placement.

Is it suitable for aggressive environments?
Yes. It has excellent chemical and freeze/thaw resistance and resists water and chloride intrusion.

How do I clean tools?
Use soap and water or a citrus degreaser before the material cures. Cured material must be removed mechanically.
