Sika Greenstreak X-Plug XP006 5/8 to 3/4 Yellow Pail 350

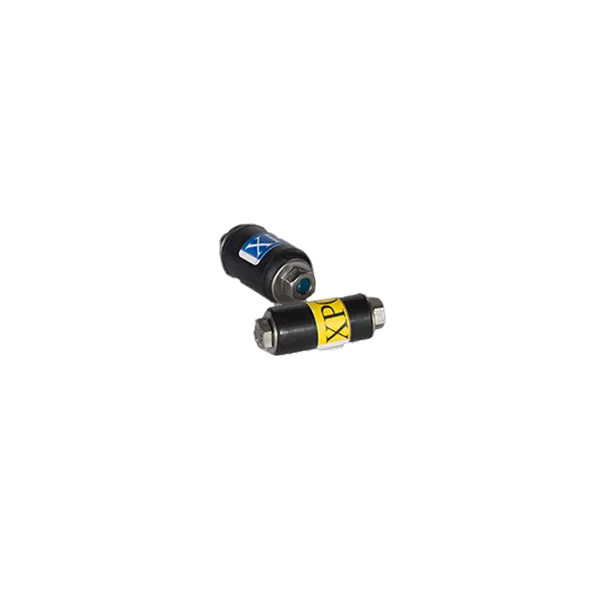

Sika Greenstreak X-Plug XP006 is a mechanical EPDM plug in a yellow pail of 350 for 5/8 in to 3/4 in taper ties. Tightening the stainless nut expands the rubber so the void seals liquid-tight.
- Mechanical plug for 5/8 in to 3/4 in taper-tie voids
- EPDM expands as the stainless nut tightens
- Yellow pail of 350 plugs, the smallest size in the range
$1,043.07
Sika Greenstreak X-Plug XP006
Sika Greenstreak X-Plug XP006 is a mechanical EPDM plug with a 304 stainless bolt that seals taper-tie voids in water-retaining walls. This yellow pail of 350 (part 420804) fits 5/8 in to 3/4 in taper ties. Tightening the nut expands the rubber against the void wall for a liquid-tight seal that holds nearly 300 ft of head without grout on both faces.
Key Features
- X-Plug XP006 mechanical taper-tie plug
- Fits 5/8 in to 3/4 in taper ties
- Yellow pail of 350, part 420804
- EPDM rubber expands as the 304 stainless nut tightens
- Seals the void without grout on either side
- Smallest conventional taper-tie size in the six-pail range
Applications
- Taper-tie voids in water-retaining walls
- Pass-through tie sleeves after the rod is pulled
- Tanks, vaults, and below-grade walls
- Water-excluding structures that need a mechanical plug
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika Greenstreak |
| Product | X-Plug XP006 |
| Part no. | 420804 |
| Unit | Yellow pail of 350 |
| Taper tie size | 5/8 in to 3/4 in |
| Pail color | Yellow |
| Bolt | 304 stainless with Xylan coating |
| Compression set | 34.5% (ASTM D395) |
| Seat depth | 50-60% of wall thickness when sized correctly |
| Head pressure | Nearly 300 ft without grout on either side |
Product documents: Sika X-Plug Product Data Sheet (PDF)
Frequently Asked Questions
What taper ties fit Sika Greenstreak X-Plug XP006?
5/8 in to 3/4 in taper ties. Yellow is the smallest conventional size in the six-pail range.
What size is Sika Greenstreak X-Plug XP006?
The pail is 350 plugs, part 420804.
What compression set is Sika Greenstreak X-Plug XP006?
34.5% (ASTM D395) on the EPDM body.
What coating is Sika Greenstreak X-Plug XP006?
Xylan on the 304 stainless bolt, rated for an extra 500 to 1,000 hours in ASTM B117 salt spray.
What joint work uses Sika Greenstreak X-Plug XP006?
Smaller taper-tie and pass-through sleeve voids in water-retaining or water-excluding walls.
What grout does Sika Greenstreak X-Plug XP006 need?
None for the seal. Grout may be packed later for appearance only.
