Sika Greenstreak X-Plug XP005 5/8 to 7/8 Green Pail 350

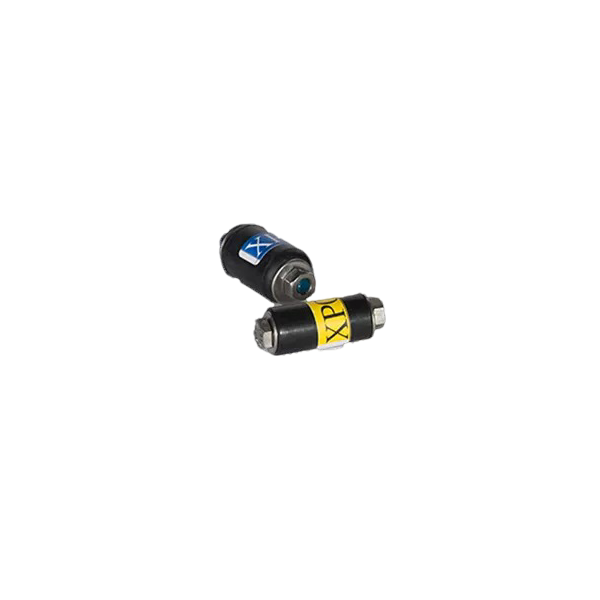

Sika Greenstreak X-Plug XP005 is a mechanical EPDM plug in a green pail of 350 for 5/8 in to 7/8 in taper ties. Tightening the stainless nut expands the rubber so the void seals liquid-tight.
- Mechanical plug for 5/8 in to 7/8 in taper-tie voids
- EPDM expands as the stainless nut tightens
- Green pail of 350 plugs for water-retaining walls
$1,127.70
Sika Greenstreak X-Plug XP005
Sika Greenstreak X-Plug XP005 is a mechanical EPDM plug with a 304 stainless bolt that seals taper-tie voids in water-retaining walls. This green pail of 350 (part 420803) fits 5/8 in to 7/8 in taper ties. Tightening the nut expands the rubber against the void wall for a liquid-tight seal that holds nearly 300 ft of head without grout on both faces.
Key Features
- X-Plug XP005 mechanical taper-tie plug
- Fits 5/8 in to 7/8 in taper ties
- Green pail of 350, part 420803
- EPDM rubber expands as the 304 stainless nut tightens
- Seals the void without grout on either side
- EPDM elongation 410% (ASTM D412)
Applications
- Taper-tie voids in water-retaining walls
- Pass-through tie sleeves after the rod is pulled
- Tanks, vaults, and below-grade walls
- Water-excluding structures that need a mechanical plug
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika Greenstreak |
| Product | X-Plug XP005 |
| Part no. | 420803 |
| Unit | Green pail of 350 |
| Taper tie size | 5/8 in to 7/8 in |
| Pail color | Green |
| Bolt | 304 stainless with Xylan coating |
| EPDM elongation | 410% (ASTM D412) |
| Seat depth | 50-60% of wall thickness when sized correctly |
| Head pressure | Nearly 300 ft without grout on either side |
Product documents: Sika X-Plug Product Data Sheet (PDF)
Frequently Asked Questions
What taper ties fit Sika Greenstreak X-Plug XP005?
5/8 in to 7/8 in taper ties. Green is the next-to-smallest pail in the six-size range.
What size is Sika Greenstreak X-Plug XP005?
The pail is 350 plugs, part 420803.
What elongation is Sika Greenstreak X-Plug XP005?
410% (ASTM D412) on the EPDM body, with tensile strength 13.2 MPa.
What seat depth is Sika Greenstreak X-Plug XP005?
50 to 60% of wall thickness when the size is correct. The large diameter of the taper should land close to the concrete face.
What spinning does Sika Greenstreak X-Plug XP005 prevent?
The stainless bolt is compression-set at 50 lb into the grommet so it does not spin while the nut is tightened.
What install tool does Sika Greenstreak X-Plug XP005 use?
A 7/16 in extension on a handheld drill. Place the nut side in the socket, slide to the seat, and fully tighten the nut.
