Sika Greenstreak Speed Dowel Plus 3/4 Inch Red Carton 140
Sika Greenstreak Speed Dowel Plus Red is a carton of 140 one-piece sleeves for 3/4 in by 14 in smooth dowels. Integral fins let 5 to 6 in slabs move laterally while the joint still transfers load.
- One-piece red sleeve for 3/4 in by 14 in smooth dowels
- Lateral fins let 5 to 6 in slabs move at the joint
- Carton of 140 sleeves with preinstalled nails
$353.88
Sika Greenstreak Speed Dowel Plus Red

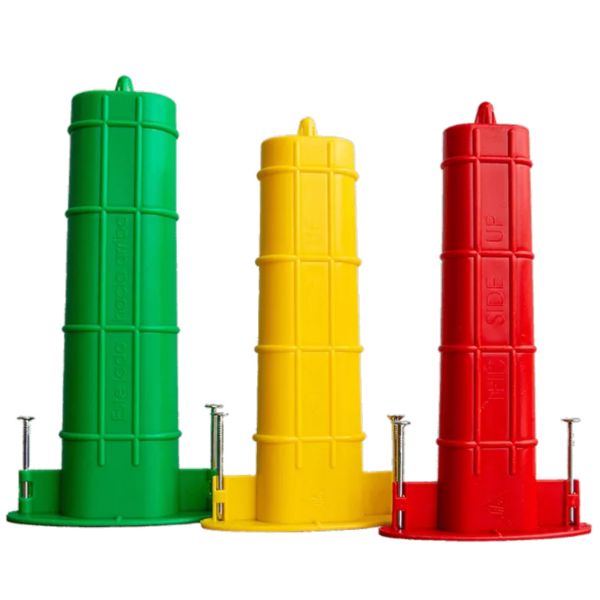

Sika Greenstreak Speed Dowel Plus is a one-piece polypropylene sleeve that keeps 3/4 in round dowels aligned and lets slabs move laterally at the joint. This red carton of 140 (part 730931) is for 3/4 in by 14 in smooth dowels in 5 to 6 in slabs. Preinstalled nails and alignment marks speed the set; after strip the dowel slides into the sleeve without drilling, greasing, or spinning the bar.
Key Features
- Speed Dowel Plus red sleeve, part 730931
- Fits 3/4 in by 14 in smooth round dowels
- Used on 5 to 6 in slabs on grade
- Integral fins eliminate lateral restraint between slabs
- One-piece body with alignment marks and preinstalled nails
- Carton of 140 sleeves
Applications
- Construction joints in 5 to 6 in industrial slabs
- Parking lots and site paving
- Warehouse floors at the thinner slab range
- Joints that need round-dowel load transfer plus lateral movement
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika Greenstreak |
| Product | Speed Dowel Plus Red |
| Part no. | 730931 |
| Unit | Carton of 140 sleeves |
| Sleeve color | Red |
| Slab depth | 5 to 6 in |
| Dowel | 3/4 in x 14 in smooth round |
| On-center spacing | 12 in (ACI 360R-10, 0.20 in max joint opening) |
| Material | 100% polypropylene |
| Compressibility | 5,500-8,000 psi (ASTM D695) |
Product documents: Sika Speed Dowel Plus Product Leaflet (PDF)
Frequently Asked Questions
What dowels fit Sika Greenstreak Speed Dowel Plus Red?
3/4 in by 14 in smooth round dowels. Smooth bars are recommended for best performance.
What size is Sika Greenstreak Speed Dowel Plus Red?
The carton is 140 sleeves, part 730931.
What lateral movement does Sika Greenstreak Speed Dowel Plus Red allow?
Patented sleeve fins eliminate lateral restraint between concrete sections, similar to plate-dowel movement on a round bar.
What first-pour drilling does Sika Greenstreak Speed Dowel Plus Red replace?
The sleeve is nailed to the wood form with the preinstalled nails. After strip, the dowel is inserted through the tape seal to the back of the sleeve.
What material is Sika Greenstreak Speed Dowel Plus Red?
100% polypropylene, 0.083 in sleeve wall, compressibility 5,500-8,000 psi (ASTM D695). No expiration in original warehouse packaging.
What parking-lot work uses Sika Greenstreak Speed Dowel Plus Red?
5 to 6 in slabs on grade in parking lots, site paving, and thinner industrial floors that need load transfer plus lateral movement.
