Sika Greenstreak X-Plug XP004 3/4 to 1 Blue Pail 350
Sika Greenstreak X-Plug XP004 is a mechanical EPDM plug in a blue pail of 350 for 3/4 in to 1 in taper ties. Tightening the stainless nut expands the rubber so the void seals liquid-tight.
- Mechanical plug for 3/4 in to 1 in taper-tie voids
- EPDM expands as the stainless nut tightens
- Blue pail of 350 plugs for water-retaining walls
$1,273.85
Sika Greenstreak X-Plug XP004

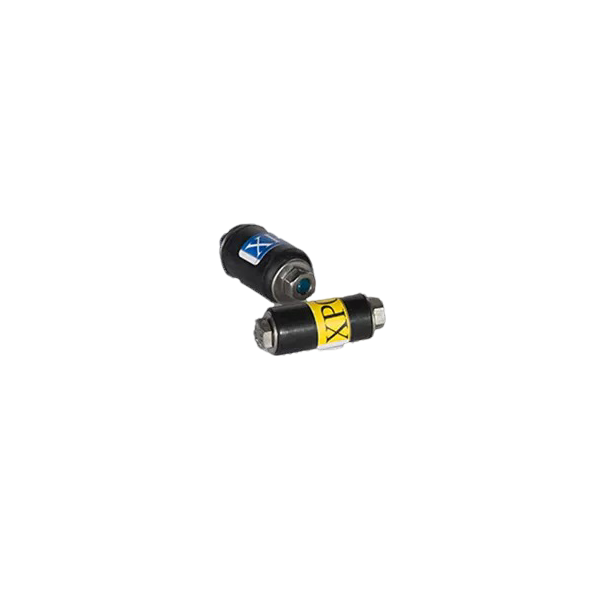

Sika Greenstreak X-Plug XP004 is a mechanical EPDM plug with a 304 stainless bolt that seals taper-tie voids in water-retaining walls. This blue pail of 350 (part 420802) fits 3/4 in to 1 in taper ties. Tightening the nut expands the rubber against the void wall for a liquid-tight seal that holds nearly 300 ft of head without grout on both faces on conventional form ties.
Key Features
- X-Plug XP004 mechanical taper-tie plug
- Fits 3/4 in to 1 in taper ties
- Blue pail of 350, part 420802
- EPDM rubber expands as the 304 stainless nut tightens
- Seals the void without grout on either side
- Holds nearly 300 ft of head pressure
Applications
- Taper-tie voids in water-retaining walls
- Pass-through tie sleeves after the rod is pulled
- Tanks, vaults, and below-grade walls
- Water-excluding structures that need a mechanical plug
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika Greenstreak |
| Product | X-Plug XP004 |
| Part no. | 420802 |
| Unit | Blue pail of 350 |
| Taper tie size | 3/4 in to 1 in |
| Pail color | Blue |
| Bolt | 304 stainless with Xylan coating |
| EPDM tensile | 13.2 MPa (ASTM D412) |
| Seat depth | 50-60% of wall thickness when sized correctly |
| Head pressure | Nearly 300 ft without grout on either side |
Product documents: Sika X-Plug Product Data Sheet (PDF)
Frequently Asked Questions
What taper ties fit Sika Greenstreak X-Plug XP004?
3/4 in to 1 in taper ties. Blue sits between XP003 (white, wider band) and XP005 (green, smaller).
What size is Sika Greenstreak X-Plug XP004?
The pail is 350 plugs, part 420802.
What cold install does Sika Greenstreak X-Plug XP004 need?
Below freezing, store the pail in a warm space before install so the EPDM can expand to a full seal.
What chemical service suits Sika Greenstreak X-Plug XP004?
Many chemical-containment walls, but not all. Confirm the environment with a Sika engineer before the size is ordered.
What bolt is Sika Greenstreak X-Plug XP004?
304 stainless with Xylan coating, compression-set at 50 lb into the EPDM grommet so the bolt does not spin.
What head pressure does Sika Greenstreak X-Plug XP004 hold?
Nearly 300 ft without grout on either side of the plug.
