Sika Greenstreak X-Plug XP001 1-1/4 to 1-1/2 Black Pail 300

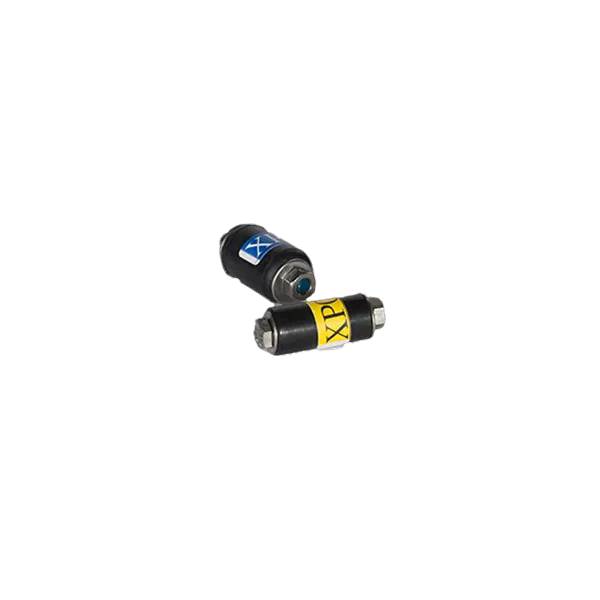

Sika Greenstreak X-Plug is a mechanical plug specifically designed to seal the void formed in a concrete wall by the removal of a taper tie rod or pass through tie sleeve.

Easy To Install
304 Stainless Steel Bolt
Xylan Coated

$1,338.46

SKU

22450

Sika Greenstreak X-Plug XP001 – Mechanical Plug for Taper Tie Voids

The Sika Greenstreak X-Plug XP001 is an advanced mechanical plug specifically designed to seal taper tie voids in concrete walls. Featuring a high-performance EPDM rubber expansion system, this plug effectively compresses against the void walls when tightened, creating a watertight seal. The 304 stainless steel bolt provides superior durability and corrosion resistance, while the Xylan coating extends protection in high-moisture environments. X-Plug XP001 is ideal for water-retaining and water-excluding structures, ensuring long-term performance without the need for additional grouting.

Key Features:

Watertight mechanical plug for sealing taper tie voids
Expands to create a tight compression seal
304 stainless steel bolt resists corrosion
Xylan-coated bolt provides extended durability
Eliminates the need for grouting in many applications
Withstands head pressure up to 300 feet
Available in multiple sizes to accommodate various taper tie voids
Color-coded pails for easy identification

Technical Specifications:

Property	Value
Material	EPDM rubber, 304 stainless steel bolt with Xylan coating
Bolt Size	7/16” stainless steel
Head Pressure Resistance	Up to 300 ft
Compression Resistance	34.5% (ASTM D395)
Tensile Strength	13.2 MPa (ASTM D412)
Elongation	410% (ASTM D412)
Water Absorption	< 3.5% (ASTM D471)
Storage Conditions	Store in original, unopened container

Frequently Asked Questions:

What is the primary function of the Sika Greenstreak X-Plug?
The X-Plug is designed to create a watertight seal in taper tie voids in concrete walls, preventing water intrusion in retaining or excluding structures.

How does the X-Plug create a seal?
Tightening the stainless steel nut causes the EPDM rubber plug to expand, compressing against the taper tie void walls to form a secure liquid-tight seal.

Can the X-Plug be installed in cold temperatures?
Yes, but Sika recommends storing the X-Plug in a warm environment before installation to ensure optimal expansion performance in freezing conditions.

Is additional grouting required after installation?
No, grouting is optional and primarily used for aesthetic purposes. The X-Plug provides a complete seal without additional grout.

For the latest technical specifications and application guidelines, visit Sika USA.
