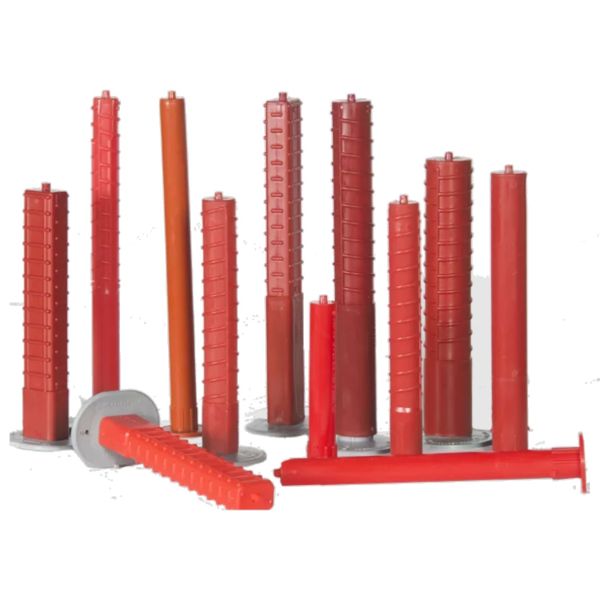

Sika Greenstreak Speed Dowel 5 Rebar or 3/4 Smooth x 18 Case 200 419184
Speed Dowel is the pioneering slip dowel installation system that ensures proper dowel alignment for positive load transfer in slab-on-ground concrete joints. Speed Dowel® provides a practical dowel alignment method for transferring loads across, and managing stresses within concrete slab-on-ground joints.
- Reduced installation time vs. conventional doweling method
- Eliminates need for greasing dowel
- Ensures proper dowel alignment
$349.05
Availability: In stock ( 1 Available )
SKU
21225
Sika Greenstreak Speed Dowel – 5 Rebar or 3/4" x 24" (200/Carton) 419184
Sika Greenstreak Speed Dowel is a fast, effective slip dowel installation system engineered to ensure precise alignment and load transfer in slab-on-ground concrete joints. This model accommodates 3/4" smooth dowels or number 5 rebar at 24" length, making it ideal for high-performance construction applications such as distribution centers, industrial floors, and commercial complexes. With a reusable polypropylene base and durable 12" sleeve, the Speed Dowel system simplifies joint prep by eliminating the need for greased dowels and hole drilling. Designed to align with ACI recommendations for load transfer, this time-saving system provides long-term durability, reduced labor, and precise performance in demanding environments.
Key Features:
- Fits 3/4" smooth dowels or number 5 rebar, 24" length
- Ensures proper dowel alignment for load transfer and stress control
- No greasing or drilling required—reduces installation time
- Reusable base with durable 100% polypropylene sleeve
- Field-tested for over 20 years of consistent performance
- Engineered for ACI compliance in slab-on-ground joints
- Ideal for use in heavy-duty concrete floor designs
- Packaged with 200 sleeves per carton (25 per bag)
Applications:
- Concrete floors in warehouses and logistics centers
- Commercial retail and industrial developments
- Airport pavement joints and heavy-duty slabs
- Parking garages and loading bays
- Entertainment and recreation venues
Technical Specifications:
| Property | Value |
|---|---|
| Compatible Dowel Size | 3/4" Smooth or number 5 Rebar |
| Dowel Length | 24" |
| Sleeve Length | 12" |
| Sleeve Material | 100% Polypropylene |
| Compression Resistance | 5,500 – 8,000 psi (ASTM D-695) |
| Sleeve Thickness | 0.125" |
| Density | 0.88 – 0.92 g/cc |
| Packaging | 200 sleeves per carton (25 per bag) |
| Shelf Life | 5 Years (stored in original packaging) |
Frequently Asked Questions:
Do I need to grease dowels before inserting them into the sleeve?
No, the Speed Dowel system eliminates the need for lubrication, simplifying the installation process and reducing mess.
Can the Speed Dowel base be reused?
Yes, the polypropylene base is reusable, offering cost and material savings on larger jobs.
Is this product compliant with ACI recommendations?
Yes, the system meets ACI 360R, 302.1R, and 330R standards for proper joint function and load transfer.
| Brand | Sika |
|---|---|
| Manufacturer | Sika |
