Sika Greenstreak Speed Dowel Plus 1 Inch Yellow Carton 100
Sika Greenstreak Speed Dowel Plus Yellow is a carton of 100 one-piece sleeves for 1 in by 14 in smooth dowels. Integral fins let 7 to 8 in slabs move laterally while the joint still transfers load.
- One-piece yellow sleeve for 1 in by 14 in smooth dowels
- Lateral fins let 7 to 8 inch slabs move at the joint
- Carton of 100 sleeves with preinstalled nails
$309.85
Sika Greenstreak Speed Dowel Plus Yellow
Sika Greenstreak Speed Dowel Plus is a one-piece polypropylene sleeve that keeps 1 in round dowels aligned and lets slabs move laterally at the joint. This yellow carton of 100 (part 730896) is for 1 in by 14 in smooth dowels in 7 to 8 in slabs. Preinstalled nails and alignment marks speed the set; after strip the dowel slides into the sleeve without drilling, greasing, or spinning the bar.
Key Features
- Speed Dowel Plus yellow sleeve, part 730896
- Fits 1 in by 14 in smooth round dowels
- Used on 7 to 8 in slabs on grade
- Integral fins eliminate lateral restraint between slabs
- One-piece body with alignment marks and preinstalled nails
- Carton of 100 sleeves
Applications
- Construction joints in 7 to 8 in industrial slabs
- Warehouse and distribution-center floors
- Parking lots and site paving
- Joints that need round-dowel load transfer plus lateral movement
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika Greenstreak |
| Product | Speed Dowel Plus Yellow |
| Part no. | 730896 |
| Unit | Carton of 100 sleeves |
| Sleeve color | Yellow |
| Slab depth | 7 to 8 in |
| Dowel | 1 in x 14 in smooth round |
| On-center spacing | 12 in (ACI 360R-10, 0.20 in max joint opening) |
| Material | 100% polypropylene |
| Sleeve thickness | 0.083 in |
Product documents: Sika Speed Dowel Plus Product Leaflet (PDF)
Frequently Asked Questions
What slab depth uses Sika Greenstreak Speed Dowel Plus Yellow?

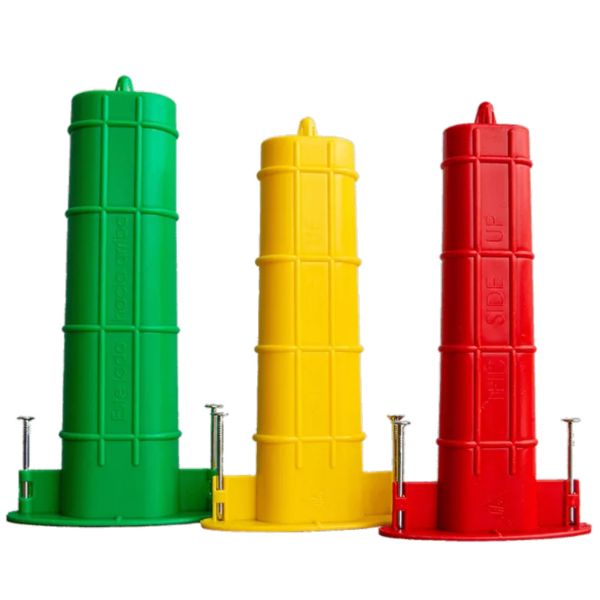

7 to 8 in slabs. Red 3/4 in sleeves cover 5 to 6 in, and green 1-1/4 in sleeves cover 9 to 11 in.
What carton count is Sika Greenstreak Speed Dowel Plus Yellow?
The carton is 100 sleeves, part 730896.
What ACI guides cover Sika Greenstreak Speed Dowel Plus Yellow?
ACI 302 floor and slab construction, ACI 330 parking lots, and ACI 360 slabs on grade. Spacing follows ACI 360R-10.
What nails come on Sika Greenstreak Speed Dowel Plus Yellow?
Preinstalled nails. The sleeve is nailed to the wood form at mid-slab depth; after strip the nails are bent flush and the smooth dowel is inserted.
What greasing step does Sika Greenstreak Speed Dowel Plus Yellow skip?
No greasing, spinning, removing, or replacing of dowels, and no form drilling. The one-piece sleeve takes a locally sourced 1 in by 14 in smooth bar.
What joint opening is Sika Greenstreak Speed Dowel Plus Yellow spaced for?
12 in on center from the ACI 360R-10 chart, based on a 0.20 in maximum joint opening.
