Sika Greenstreak Speed Dowel #4 Rebar or 5/8in Smooth x 18in 200 per Carton PSD09/#4TX 419183
Sika Greenstreak Speed Dowel PSD09/#4TX is a carton of 200 sleeves for #4 rebar or 5/8 in smooth 18 in dowels. The 9 in sleeve holds alignment so construction joints transfer load without a drilled first pour.
- Slip-dowel sleeve for #4 rebar or 5/8 in smooth 18 in bars
- 9 in sleeve keeps dowels aligned for load transfer
- Carton of 200 sleeves for slab-on-ground joint work
$303.83
Availability:
In stock
( 2 Available )
Sika Greenstreak Speed Dowel PSD09/#4TX

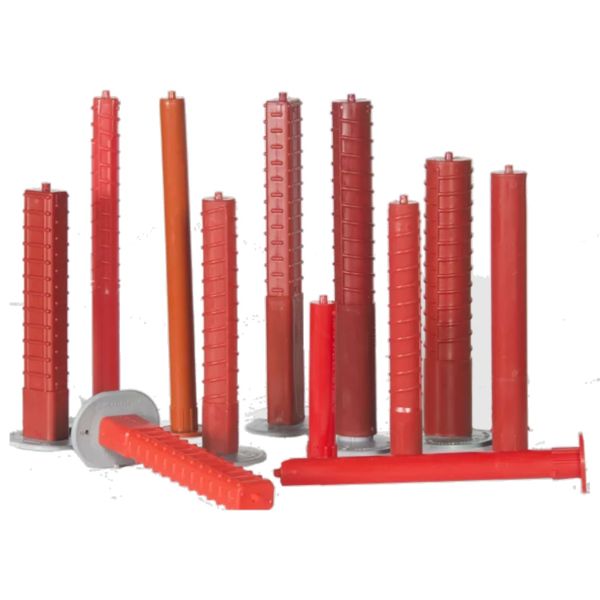

Sika Greenstreak Speed Dowel is a polypropylene slip-dowel sleeve that keeps round dowels aligned for load transfer in construction joints. This carton of 200 PSD09/#4TX sleeves (part 419183) takes #4 rebar or 5/8 in smooth dowels 18 in long with a 9 in sleeve. Nail the reusable base to the form, tap the sleeve onto the base, and pour; after strip the second-side dowel inserts without drilling the first slab.
Key Features
- Speed Dowel sleeve PSD09/#4TX
- Fits 5/8 in smooth or #4 rebar x 18 in
- Sleeve length 9 in; corresponding base PSD/#4BX
- Carton of 200 sleeves
- Used for load transfer in slabs on grade
- Eliminates drilled first-pour dowel installs
Applications
- Construction joints in industrial concrete slabs
- Industrial floors and warehouse slabs
- Pavement and site slabs needing load transfer
- Round-dowel joints using #4 rebar or 5/8 in smooth bar
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika Greenstreak |
| Product | Speed Dowel PSD09/#4TX |
| Part no. | 419183 |
| Unit | Carton of 200 sleeves |
| Dowel size | #4 rebar or 5/8 in smooth x 18 in |
| Sleeve length | 9 in |
| Base | PSD/#4BX |
| Material | 100% polypropylene |
| Sleeve thickness | 0.125 in |
| Compressibility | 5,500-8,000 psi (ASTM D695) |
Product documents: Sika Speed Dowel Systems Brochure (PDF)
Frequently Asked Questions
What bars fit Sika Greenstreak Speed Dowel PSD09/#4TX?
#4 rebar or 5/8 in smooth dowels 18 in long, with a 9 in sleeve.
What size is Sika Greenstreak Speed Dowel PSD09/#4TX?
The carton is 200 sleeves, part 419183.
What joint work uses Sika Greenstreak Speed Dowel PSD09/#4TX?
Construction joints in slabs on grade that need aligned slip dowels for positive load transfer.
What sleeve length is Sika Greenstreak Speed Dowel PSD09/#4TX?
9 in; the matching base is PSD/#4BX. The 12 in PSD12/#4TX sleeve is the 24 in dowel sibling.
What first-pour drilling does Sika Greenstreak Speed Dowel PSD09/#4TX replace?
The sleeve is nailed to the form and poured in place, so the second-side dowel inserts after strip without drilling the first slab.
What base goes with Sika Greenstreak Speed Dowel PSD09/#4TX?
Corresponding base PSD/#4BX from the Speed Dowel round-dowel table.
