Sika Greenstreak Speed Dowel Plus 1-1/4in Green Carton 80
Sika Greenstreak Speed Dowel Plus Green is a carton of 80 one-piece sleeves for 1-1/4 in by 16 in smooth dowels. Integral fins let 9 to 11 in slabs move laterally while the joint still transfers load.
- One-piece green sleeve for 1-1/4 in by 16 in smooth dowels
- Lateral fins let 9 to 11 in slabs move at the joint
- Carton of 80 sleeves with preinstalled nails
$311.48
Sika Greenstreak Speed Dowel Plus Green
Sika Greenstreak Speed Dowel Plus is a one-piece polypropylene sleeve that keeps 1-1/4 in round dowels aligned and lets slabs move laterally at the joint. This green carton of 80 (part 730941) is for 1-1/4 in by 16 in smooth dowels in 9 to 11 in slabs. Preinstalled nails and alignment marks speed the set; after strip the dowel slides into the sleeve without drilling, greasing, or spinning the bar.
Key Features
- Speed Dowel Plus green sleeve, part 730941
- Fits 1-1/4 in by 16 in smooth round dowels
- Used on 9 to 11 in slabs on grade
- Integral fins eliminate lateral restraint between slabs
- One-piece body with alignment marks and preinstalled nails
- Carton of 80 sleeves
Applications
- Construction joints in 9 to 11 in industrial slabs
- Warehouse and distribution-center floors
- Parking lots and site paving
- Joints that need round-dowel load transfer plus lateral movement
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika Greenstreak |
| Product | Speed Dowel Plus Green |
| Part no. | 730941 |
| Unit | Carton of 80 sleeves |
| Sleeve color | Green |
| Slab depth | 9 to 11 in |
| Dowel | 1-1/4 in x 16 in smooth round |
| On-center spacing | 12 in (ACI 360R-10, 0.20 in max joint opening) |
| Material | 100% polypropylene |
| Sleeve thickness | 0.083 in |
Product documents: Sika Speed Dowel Plus Product Leaflet (PDF)
Frequently Asked Questions
What dowels fit Sika Greenstreak Speed Dowel Plus Green?
1-1/4 in by 16 in smooth round dowels. Smooth bars are recommended for best performance.
What size is Sika Greenstreak Speed Dowel Plus Green?
The carton is 80 sleeves, part 730941.
What slab depth uses Sika Greenstreak Speed Dowel Plus Green?

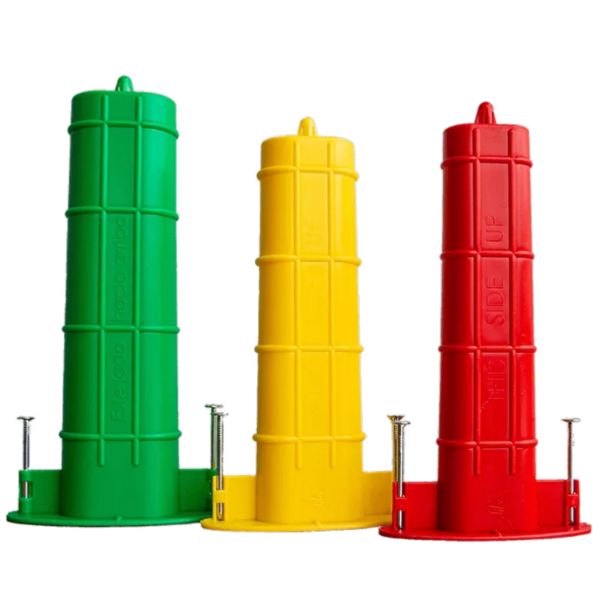

9 to 11 in slabs; red 3/4 in and yellow 1 in sleeves cover the thinner slab ranges.
What lateral movement does Sika Greenstreak Speed Dowel Plus Green allow?
Patented sleeve fins eliminate lateral restraint between concrete sections, similar to plate-dowel movement on a round bar.
What first-pour drilling does Sika Greenstreak Speed Dowel Plus Green replace?
The sleeve is nailed to the wood form with the preinstalled nails. After strip, the dowel is inserted through the tape seal to the back of the sleeve.
What spacing is Sika Greenstreak Speed Dowel Plus Green?
12 in on center from the ACI 360R-10 chart, based on a 0.20 in maximum joint opening.
