Five Star ARMX DeepGuard UW Light Gray 2 Gallon

Two-component, high build, 100% solids, chemical resistant epoxy coating specifically formulated for underwater applications while also delivering excellent performance on wet and dry substrates. It is suitable for use on concrete, wood, or steel.

Adheres to underwater, wet, and dry surfaces
High chemical resistance
Resists chipping and cracking

$596.67

Details

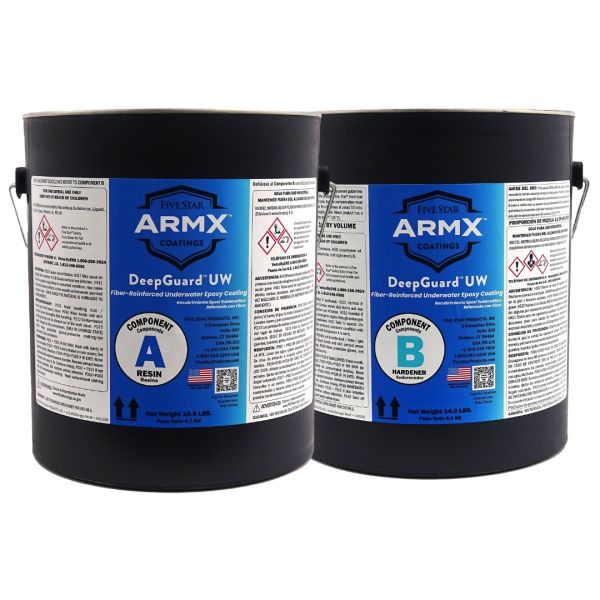

Five Star ARMX DeepGuard UW Light Gray 2 Gallon Unit

Five Star ARMX DeepGuard UW Light Gray is a two-component, high-build epoxy coating formulated for underwater application and use on wet or dry substrates. This fiber-reinforced, 100% solids coating provides chemical, abrasion, and corrosion resistance on concrete, steel, and wood surfaces. DeepGuard UW is well suited for marine structures, concrete tanks, secondary containment areas, and process equipment supports that require a durable, low-permeability protective coating.

Key Features

Two-component, high-build epoxy coating.
Designed to adhere to underwater, wet, and dry surfaces.
100% solids and VOC-free formulation.
Fiber reinforced for resistance to chipping and cracking.
High chemical and abrasion resistance.
Anti-corrosive and low permeability.
Low odor for industrial coating applications.
Can be applied by brush, squeegee, trowel, or sponge.

Applications

Underwater coating applications.
Wet and dry substrate protection.
Marine piles and structures.
Concrete, wood, and steel surfaces.
Concrete tanks.
Secondary containment surfaces.
Process equipment supports.
Industrial equipment pads.

Technical Specifications

Property	Value
Product Type	Fiber-reinforced underwater epoxy coating
Components	Two-component resin and hardener system
Packaging	2 gallon unit
Product Code	34030
Color	Light Gray
Finish	High gloss
Yield	Approximately 106 sq ft at 30 mils
Wet Film Thickness	30 to 60 mils
Solids by Volume	100%, VOC-free
Mix Ratio	1:1 by volume, Component A to Component B
Shore D Hardness	81 or greater
Tensile Strength	5,600 psi
Compressive Strength	7,400 psi at 7 days
Mixed Viscosity	197,000 cps
Mixed Density	1.4 g/ml
Impact Resistance	30 in-lbs
Taber Abrasion	34 mg per 1,000 cycles at CS17
Adhesion to Wet Steel	Greater than 2,000 psi
Adhesion to Dry Steel	Greater than 3,300 psi
Adhesion to Concrete	800 psi with concrete failure
Pot Life at 77 Degrees F	40 minutes
Tack-Free Time	8 hours at 77 Degrees F
In-Service Time	Foot traffic: 24 hours; forklift traffic: 48 hours
Application Temperature	40 to 100 Degrees F
Maximum Operating Temperature	-40 to 180 Degrees F
Shelf Life	2 years in original, unopened packaging

FAQs

What is Five Star ARMX DeepGuard UW used for?
It is used as a protective epoxy coating on underwater, wet, or dry concrete, steel, and wood surfaces, including marine piles, tanks, secondary containment areas, and equipment supports.

Can DeepGuard UW be applied underwater?
Yes. It is specifically formulated for underwater applications and is designed to adhere to submerged, wet, and dry surfaces.

How much area does one 2 gallon unit cover?
One unit covers approximately 106 square feet when applied at a wet film thickness of 30 mils.

How is DeepGuard UW applied?
It may be applied using a stiff-bristle brush, squeegee, trowel, or sponge. The coating should be worked firmly into defects from multiple directions to displace trapped air.

What is the mixing ratio?
Component A resin and Component B hardener are mixed at a 1:1 ratio by volume. Both components should be premixed separately before combining.

How long is the working time after mixing?
The pot life is approximately 40 minutes at 77 Degrees F. Only mix the amount that can be placed within that time.

How soon can the coated surface return to service?
Foot traffic may begin after approximately 24 hours and forklift traffic after approximately 48 hours, assuming proper curing conditions.
