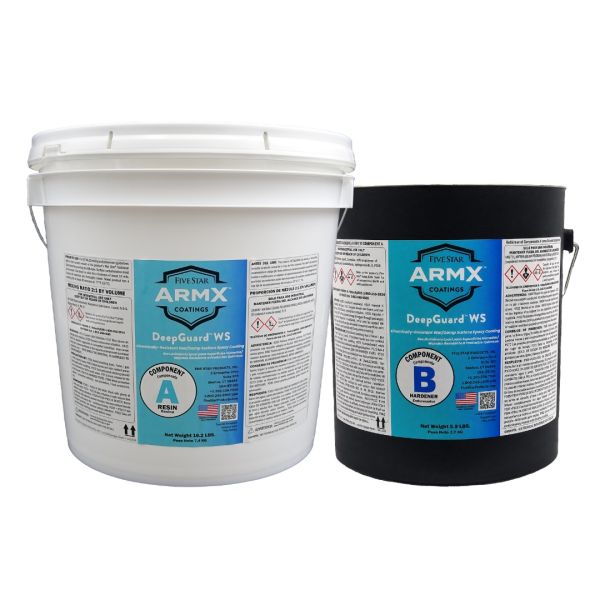

Five Star ARMX DeepGuard WS Light Gray 2 Gallon
Two-component, 100% solids, solvent-free, chemical-resistant epoxy coating specifically formulated for application to wet and damp surfaces, while also delivering excellent performance on dry substrates. It is suitable for use on steel, wood, and concrete.
- Horizontal and vertical application
- High chemical resistance
- Adheres to wet, damp and dry surfaces
$586.67
Five Star ARMX DeepGuard WS 2 Gallon Unit
Five Star ARMX DeepGuard WS is a two-component, 100% solids epoxy coating formulated for application to wet, damp, and dry substrates. This solvent-free coating provides chemical resistance, low permeability, and anticorrosive protection for concrete, steel, and wood surfaces. DeepGuard WS is suitable for horizontal and vertical applications, including concrete tanks, secondary containment areas, marine structures, waste neutralization pits, and process equipment support pads.
Key Features
- Two-component chemical-resistant epoxy coating.
- Adheres to wet, damp, and dry substrates.
- 100% solids and VOC-free formulation.
- Provides anticorrosive protection and low permeability.
- Resists chipping and cracking.
- Suitable for horizontal and vertical applications.
- Can be applied by roller, brush, squeegee, or airless spray equipment.
- High-gloss finish with strong adhesion to concrete and steel.
Applications
- Horizontal coating applications.
- Vertical coating applications.
- Concrete tanks.
- Secondary containment surfaces.
- Concrete, wood, and steel surfaces.
- Marine piles and structures.
- Process equipment support pads.
- Waste neutralization pits.
Technical Specifications
| Property | Value |
|---|---|
| Product Type | Chemical-resistant wet and damp surface epoxy coating |
| Components | Two-component resin and hardener system |
| Packaging | 2 gallon unit |
| Product Code | 34025 |
| Color | Light Gray |
| Finish | High gloss |
| Coverage | Approximately 320 sq ft at 10 mils |
| Film Thickness | 8 to 16 mils |
| Solids by Volume | 100%, VOC-free |
| Mix Ratio | 2:1 by volume, Component A to Component B |
| Shore D Hardness | 71 or greater |
| Mixed Viscosity | 7,200 cps |
| Mixed Density | 1.32 g/ml |
| Flash Point | Greater than 200 Degrees F |
| Impact Resistance | 50 in-lbs |
| Taber Abrasion | 87 mg per 1,000 cycles at CS17 |
| Adhesion to Steel | Greater than 3,000 psi |
| Adhesion to Concrete | 800 psi with concrete failure |
| Pot Life at 77 Degrees F | 40 minutes |
| Tack-Free Time | 8 hours at 77 Degrees F |
| In-Service Time | Foot traffic: 24 hours; forklift traffic: 48 hours |
| Listed Application Temperature | 45 to 110 Degrees F |
| Placement Guideline Substrate Temperature | 40 to 100 Degrees F |
| Maximum Operating Temperature | -20 to 150 Degrees F |
| Shelf Life | 2 years in original, unopened packaging |
FAQs
What is Five Star ARMX DeepGuard WS used for?
It is used as a chemical-resistant epoxy coating on wet, damp, or dry concrete, steel, and wood surfaces, including tanks, marine structures, containment areas, and equipment support pads.
Can DeepGuard WS be applied to damp concrete?
Yes. It is specifically formulated to adhere to wet and damp surfaces while also performing on dry substrates.
Can DeepGuard WS be used underwater?
The data sheet identifies DeepGuard WS for wet and damp surfaces but does not identify it as an underwater-application coating. Five Star DeepGuard UW is the version specifically formulated for underwater placement.
How much area does one 2 gallon unit cover?
One unit covers approximately 320 square feet when applied at a film thickness of 10 mils.
What is the mixing ratio?
Component A resin and Component B hardener are mixed at a 2:1 ratio by volume. Both components should be premixed separately before combining.
How can DeepGuard WS be applied?
It may be applied using a squeegee, 3/8 inch nap roller, brush, or heated plural-component airless spray equipment.
How long is the working time after mixing?
The pot life is approximately 40 minutes at 77 Degrees F. Mix only the amount that can be placed within that period.
How soon can the coated surface return to service?
Foot traffic may begin after approximately 24 hours and forklift traffic after approximately 48 hours, assuming proper curing conditions.
