Emseal Bridge Expansion Joint System - BEJS
Emseal BEJS is a silicone-and-foam bridge joint packed on 12-LF reels and as 6.56 ft sticks. It is placed on bridges, abutments, and roadways.
- +60% / -60% movement
- Sikasil WS-295, black
- 1/2 to 4 inches
BEJS, reels and sticks

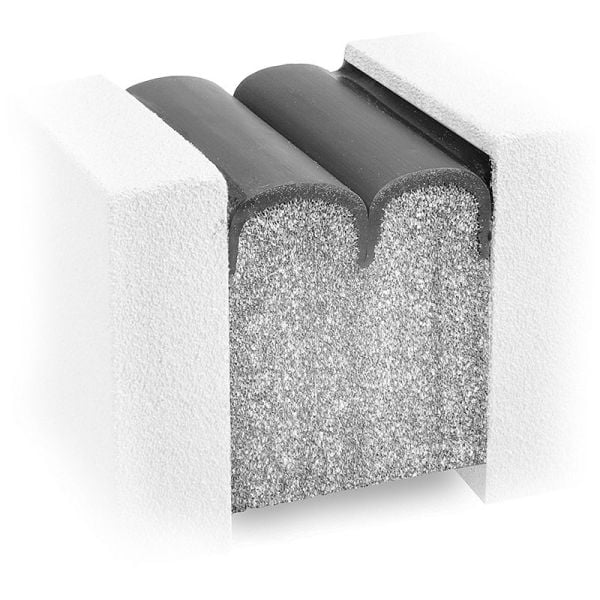

Emseal BEJS is a precompressed silicone-and-foam hybrid for watertight bridge and road joints. It is used on bridges, abutments, wing walls, and jersey barriers. It is placed from 12-LF reels or 6.56 ft sticks, depending on width. Standard facing is black Sikasil WS-295. Movement is +60% and -60% of nominal size, 120% total. Foam backpressure is about 2.5 psi.
Key Features
- Highway-grade silicone bellows, Sikasil WS-295
- 12-LF reels and 6.56 ft sticks by width
- +60% / -60% movement, 120% total
- No metal anchors in the concrete
- Black facing
Applications
- Road bridges and highway expansion gaps.
- Wing walls, abutments, and jersey barriers.
- Longitudinal joints and precast panels.
- Replacement of failed caulk joints.
- Embedded metal angles where demolition is not feasible.
Technical Specifications
| Property | Value |
|---|---|
| Movement | +60% / -60% (120% total) |
| Standard sizes | 1/2 in to 4 in |
| Pack, 1/2 to 1 1/4 in | 12 LF (3.65 M) reels |
| Pack, 1 1/2 to 4 in | 6.56 ft (2 M) shrink-wrapped sticks |
| Depth at 1/2 in | 1 3/4 in |
| Color | black |
| Facing | Sikasil WS-295 |
| Temperature | -40 F to 185 F |
| UV aging | no change, 2000 hours ASTM G155 |
| Substrate backpressure | about 2.5 psi |
Documents
BEJS System Product Data Sheet
Frequently Asked Questions
What structures is BEJS placed on?
It is placed on road bridges, wing walls, abutments, jersey barriers, longitudinal joints, and precast panels.
What is the reel-and-stick pack of BEJS?
12-LF reels from 1/2 inch to 1 1/4 inches, and 6.56 ft shrink-wrapped sticks from 1 1/2 inches to 4 inches.
What is the standard color of BEJS?
Black.
What is the service temperature of BEJS?
-40 F to 185 F, ASTM C711.
What is the 1/2-inch depth of BEJS?
1 3/4 inches at the 1/2 inch size.
What facing is on BEJS?
Highway-grade Sikasil WS-295 silicone bellows.
