Emseal DSF System
Emseal DSF System is an NSF/ANSI 61 silicone-and-foam joint packed as 6.56 LF sticks for food plants and potable water. It is placed in production areas, cafeterias, and food storage.
- NSF/ANSI 61 and FDA 177.2600
- +25% / -25% movement
- 1/2 to 8 inches
DSF System, 6.56 LF sticks

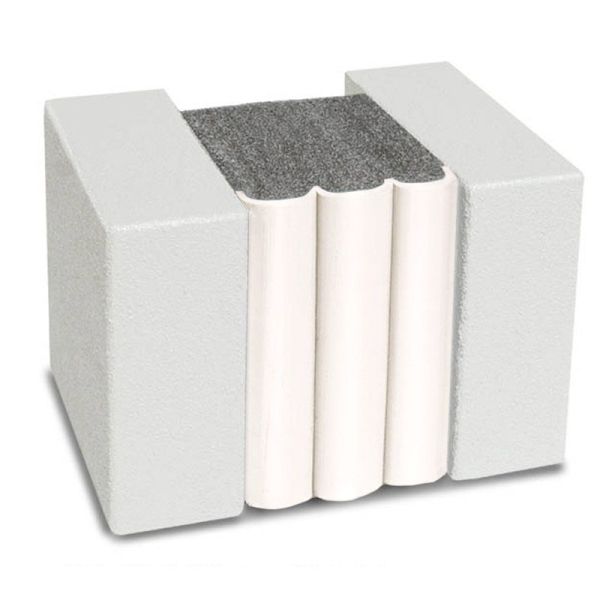

Emseal DSF System is a precompressed silicone-and-impregnated-foam hybrid with NSF/ANSI 61 and FDA 177.2600 silicone bellows. It is used in food plants, cafeterias, and potable-water service. It is placed as 6.56 LF shrink-wrapped sticks from 1/2 to 8 inches. Standard facing is white. Factory Universal-90 corners are coated on both sides. Movement is 50% total.
Key Features
- NSF/ANSI 61 silicone-and-foam joint
- 6.56 LF shrink-wrapped sticks, 1/2 to 8 inches
- FDA 177.2600 indirect food contact
- White silicone bellows
- Factory Universal-90 corners
Applications
- Food production plants.
- Restaurants, cafeterias, and food storage.
- Food preparation areas.
- Potable-water service.
- Spill guards next to cleanable surfaces.
Technical Specifications
| Property | Value |
|---|---|
| Movement | +25% / -25% (50% total) |
| Standard sizes | 1/2 in to 8 in |
| Pack | 6.56 LF (2 m) shrink-wrapped sticks |
| NSF/ANSI | Standard 61 |
| FDA | CFR 177.2600 |
| Temperature | -40 F to 185 F |
| Substrate backpressure | 2.5 psi |
| Silicone hardness | Shore A 35, ASTM D2240 |
| Universal-90 | 6 in and 12 in legs |
| Color | white |
Documents
Frequently Asked Questions
What food-contact listings does the DSF System meet?
NSF/ANSI Standard 61 for food and potable water, and FDA Regulation CFR 177.2600 for indirect food contact.
What joint sizes is the DSF System placed in?
1/2 inch to 8 inches.
What is a Universal-90 on the DSF System?
A factory corner with a 6-inch leg and a 12-inch leg, coated on both sides.
What is the silicone hardness of the DSF System?
Shore A 35, ASTM D2240.
What is the compression range of the DSF System?
+25% and -25% of nominal size, 50% total.
What is the coverplate rule for the DSF System?
A coverplate is used on trafficable joints 4 inches and wider.
