Emseal Seismic Colorseal-DS

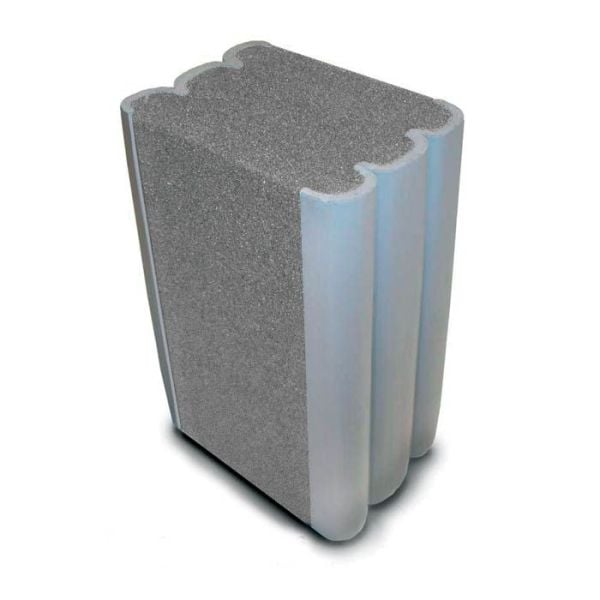

Emseal Seismic Colorseal-DS is a double-sided silicone-coated seal packed as shrink-wrapped sticks for curtain wall and shallow substrates. It is placed so both faces of the joint are sealed.
- Both faces coated
- 2 3/4 in depth at 1/2 in
- ±50% movement
Seismic Colorseal-DS, sticks
Emseal Seismic Colorseal-DS is a double-sided, silicone-coated, precompressed primary seal that coats both faces of the substrate. It is used on curtain wall and other shallow substrates where both sides need a finished seal. It is placed as shrink-wrapped sticks from 1/2 to 10 inches, with independent color on each face. No metals and no invasive anchoring.
Key Features
- Both faces coated in one stick-packed unit
- Curtain wall and shallow substrates
- Independent color on each face
- No metals and no invasive anchoring
- Watertight, UV stable, and insulating
Applications
- Curtain wall and window-wall joints.
- Shallow substrates that need both faces finished.
- Inside corners and building additions.
- Joints with curves and plane changes.
- 1/2 to 10 inch joints.
Technical Specifications
| Property | Value |
|---|---|
| Movement | ±50% (100% total) |
| Standard sizes | 1/2 in to 10 in |
| Pack | shrink-wrapped sticks |
| Depth at 1/2 in | 2 3/4 in |
| R-value | 2.15 per inch, ASTM C518 |
| STC / OITC | STC 52 / OITC 38, ASTM E90 |
| Wind | Miami-Dade 150 mph, ASTM E330 |
| ABAA air leakage | 0.0078 L/(s·m²) at 75 Pa |
| Temperature | -40 F to 185 F |
| Faces | independent color each face |
Documents
Seismic Colorseal-DS Product Data Sheet
Frequently Asked Questions
What substrates is Seismic Colorseal-DS placed on?
It is placed on curtain wall and other shallow substrates where both sides of the joint need a finished seal.
What is the face coating of Seismic Colorseal-DS?
Factory-applied sealant facing on both sides, with independent color on each face.
What is the 1/2-inch seal thickness of Seismic Colorseal-DS?
2 3/4 inches at the 1/2 inch size (3 inches at 1 inch).
What is the temperature range of Seismic Colorseal-DS?
-40 F to 185 F permanent.
What is the water-penetration listing of Seismic Colorseal-DS?
ASTM E331, no water after 15 minutes at 65, 92, and 205 mph equivalent.
What is the OITC of Seismic Colorseal-DS?
OITC 38 in an OITC 38 wall, ASTM E90-09.
