Emseal EMV-Seal

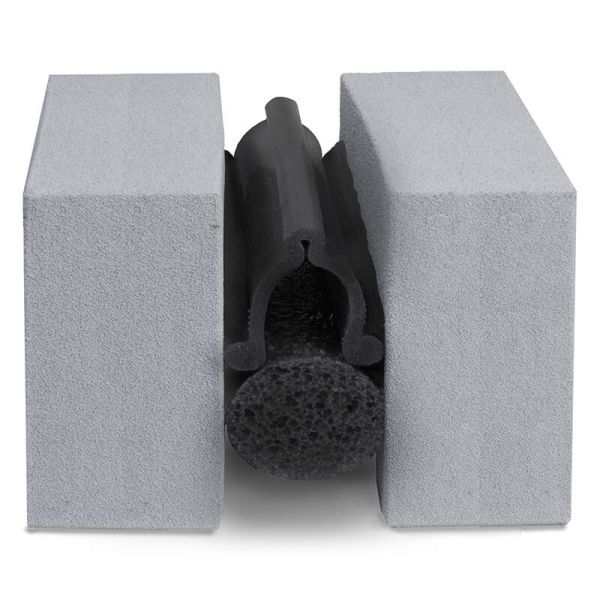

Emseal EMV-Seal is an extruded silicone gland unrolled into bridge and highway gaps. It is placed in concrete, metal angles, and elastomeric headers.
- Five sizes, 1 1/4 to 5 in
- Sikasil WS-295, black
- Shore A 55
EMV-Seal, gland
Emseal EMV-Seal is a field-folded extruded 100% silicone gland for watertight bridge and highway gaps. It is used on bridges, abutments, wing walls, and longitudinal joints. It is placed by unrolling the gland into the opening and locking it with Sikasil WS-295. Standard color is black. Five sizes cover 1 1/4 to 5 inch gaps. Gland hardness is Shore A 55.
Key Features
- Extruded 100% silicone gland
- Unrolls into the gap
- Five sizes, 1 1/4 to 5 inches
- Sikasil WS-295, black
- 1/2-inch recess below the wearing surface
Applications
- Bridge and highway expansion gaps.
- Abutments, wing walls, and longitudinal joints.
- Embedded metal angles where demolition is not feasible.
- Replacement of failed caulk joints.
- Concrete and elastomeric headers.
Technical Specifications
| Property | Value |
|---|---|
| Sizes | 1 1/4, 2, 3, 4, and 5 in |
| Pack | unrolled extruded silicone gland |
| Color | black |
| Gland hardness | Shore A 55 ± 5, ASTM 2240 |
| Tensile | 1,000 psi min, ASTM D412 |
| Elongation | 400% min, ASTM D412 |
| Tear | 100 ppi min, ASTM D624 |
| Adhesive | Sikasil WS-295 |
| Recess | 1/2 in below wearing surface |
Documents
Frequently Asked Questions
What gap sizes is EMV-Seal offered in?
1 1/4, 2, 3, 4, and 5 inches (EMV-0125 through EMV-0500).
What is the gland material of EMV-Seal?
It is extruded from 100% silicone polymer and unrolled into the gap.
What Shore hardness is the EMV-Seal gland?
Shore A 55 ± 5, ASTM 2240.
What silicone adhesive holds EMV-Seal?
Sikasil WS-295, which bonds the gland and forms the watertight bands.
What is the bellows recess of EMV-Seal?
1/2 inch minimum between the top of the bellows and the wearing surface.
What tensile is printed for EMV-Seal?
1,000 psi minimum, ASTM D412.
