Avanti AV-202 Multigrout 10.5oz Cartridge AV-202-CARCS
Avanti AV-202 Multigrout is a single component, moisture activated MDI/TDI blended polyurethane injection resin. Designed for sealing active water leaks in large cracks or joints in concrete structures, it can absorb up to 10 times its weight in water, creating a tough and impermeable seal.
- Stops active water leaks
- Used successfully in manhole sealing and pipe penetrations
- Excellent choice for moving cracks and joints
$32.37
Availability:
In stock
( 168 Available )

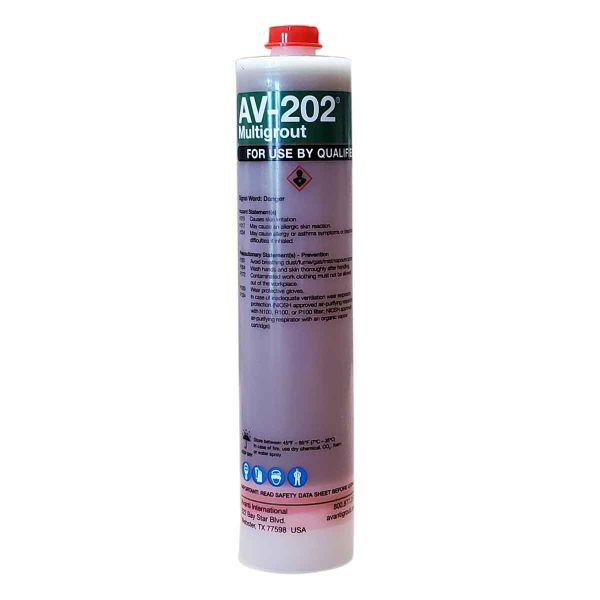

Avanti AV-202 Multigrout Hydrophilic Polyurethane Grout, 10.5 oz Cartridge (AV-202-CARCS)
AV-202-CARCS is a single 10.5 oz cartridge of Avanti AV-202 Multigrout, the high-viscosity hydrophilic polyurethane used to stop active leaks without opening a pail. Avanti packages the cartridge at approximately 10.1 fl. oz. (approximately 300 ml). It is the same NSF/ANSI/CAN 61 certified, moisture-activated MDI/TDI resin as the bulk containers: 1:1 water-to-resin for a tough flexible seal, up to 10:1 for a gel, 300% to 600% free-rise expansion. Reach for the cartridge on isolated cracks, pick holes, pipe penetrations, and Expanded Gasket Placement with oakum, when a 44 lb. pail is more material than the repair. Pair it with the Avanti cartridge tip for AV-202. Same resin in bulk as the Avanti AV-202 Multigrout 1 gallon container (AV-202-1) and the Avanti AV-202 Multigrout 5 gallon pail (AV-202-5).
Key Features
- Single-component, moisture-activated hydrophilic polyurethane (MDI/TDI blend).
- Tested and certified by WQA against NSF/ANSI/CAN 61 Drinking Water System Component.
- 100% solids and non-corrosive.
- Free-rise expansion of 300% to 600%.
- Accepts up to 10 times its volume in water.
- High viscosity of 3,200 to 6,200 cP at 72°F (22°C).
- Cures flexible with excellent adhesive properties.
- May be pumped as a single component without pre-mixing.
Applications
- Large cracks or joints in concrete and brick.
- High-volume water flow where a high-viscosity chemistry is required.
- Manhole sealing and pipe penetrations.
- Moving cracks and joints.
- Use with AV-215 Resin Rod or AV-219 Fibrotite (oakum).
- Underwater applications.
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer / Product Name | Avanti International AV-202® Multigrout hydrophilic polyurethane grout |
| TDS Revision | Rev. 07.2026 |
| Part Number | AV-202-CARCS |
| Formulation | Single-component, moisture-activated MDI/TDI blended polyurethane injection resin. Uncured: brown resin. Cured: milky colored, flexible. |
| Water-to-Resin Ratio | Preferred 1:1 for a strong, impermeable bond; effective up to 10:1 as a gel. May be pumped as a single component without pre-mixing. |
| Viscosity | 3,200 to 6,200 cP at 72°F (22°C) |
| Flash Point | 253.4°F (123°C) |
| Specific Gravity | 1.090 at 72°F (22°C) ± 3% |
| Density | 9.09 lbs. per gal. ± 3% (1.090 kg/L ± 3%) |
| Free-Rise Expansion | 300% to 600% |
| Water Uptake | Up to 10 times its volume in water |
| Certification | WQA NSF/ANSI/CAN 61 Drinking Water System Component |
| Use Temperature | 60°F to 90°F (16°C to 32°C). Warm to about 72°F (22°C) if site temperatures are low. Do not use an open flame as a heat source. Viscosity can rise significantly at 45°F (7°C). |
| Cream / Gel at 1:1 (lab) | 40°F: 0:39 / 2:47; 50°F: 0:35 / 1:54; 60°F: 0:29 / 1:39; 70°F: 0:21 / 1:12; 80°F: 0:17 / 0:47 (min:sec). Cream time is not applicable above 1:1. Field times vary with site water. |
| Tensile Strength / Elongation | Consult Avanti representative |
| Storage | 45°F to 95°F (7°C to 35°C), dry. Keep tightly closed. Packaged under dry nitrogen. Do not store catalyzed grout mixed with AV-203. |
| Shipping | Not regulated under US DOT Regulations |
| SDS | AV-202 MULTIGROUT, last revision September 15, 2021 |
| Packaging | Single cartridge approximately 10.1 fl. oz. (approximately 300 ml), sold as 10.5 oz. Avanti also lists cartridges in a case of 12; container 8.8 lbs. (4.0 kg); pail 44 lbs. (20 kg); drum 484 lbs. (219.5 kg). |
Product documents: AV-202® Multigrout Technical Data Sheet (PDF) | AV-202® MULTIGROUT Safety Data Sheet (PDF)
Frequently Asked Questions
How does this 10.5 oz cartridge compare to other AV-202 pack-outs?
AV-202-CARCS is a single cartridge, approximately 10.1 fl. oz. (approximately 300 ml), sold as 10.5 oz. Same NSF/ANSI/CAN 61 certified AV-202 Multigrout as the Avanti AV-202 Multigrout 1 gallon container (AV-202-1) and the Avanti AV-202 Multigrout 5 gallon pail (AV-202-5). Replacement nozzle: Avanti cartridge tip for AV-202. Avanti AV-202-LV Multigrout LV 10.5 oz cartridge is a separate low-viscosity formula. Avanti AV-202-NTP Multigrout NTP 10.5 oz cartridge case of 12 is a 12-cartridge case of the non-potable NTP grade.
What water-to-resin ratio should I use?
Preferred ratio is 1:1 water to resin for a strong, impermeable bond. It is effective up to 10:1 as a gel. No pre-mix is required. Perform a cup test with site water. Do not use AV-203 above 1:1.
Is the cartridge certified for potable water?
Yes. AV-202 Multigrout is tested and certified by WQA against NSF/ANSI/CAN 61. AV-202-NTP cartridges are not certified for potable water.
What temperature should I grout at?
Avanti specifies 60°F to 90°F (16°C to 32°C). Warm the cartridge to about 72°F (22°C) if the site is cold. Do not use an open flame.
Can I use this cartridge with oakum or underwater?
Yes. EGP with AV-219 Fibrotite (oakum) or AV-215 Resin Rod is a listed technique, along with needle penetration and crack injection. Underwater applications are listed on the TDS.
Do I need a special tip?
Use the Avanti cartridge tip for AV-202. Do not flush the cartridge or gun with water; AV-202 is moisture activated and will set in the equipment.
