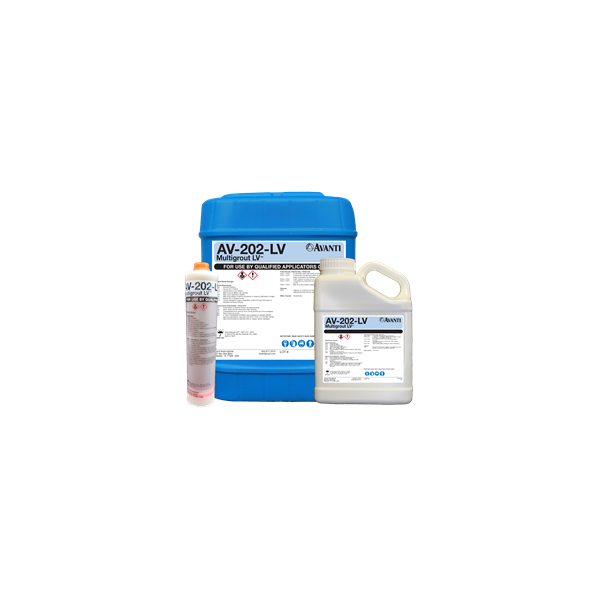

Avanti AV-202 Multi Grout LV 10.5oz Cartridge
Avanti AV-202-LV Multigrout LV is the low viscosity version of the original AV-202 Multigrout. It is a single component, moisture activated MDI/TDI blended polyurethane injection resin designed for sealing active water leaks in cracks or joints in concrete structures. AV-202-LV is designed to permeate tight cracks or joints and cures to form a resilient and flexible, yet tough, closed-cell foam with superb adhesive qualities.
- Designed for applications where the flexibility of AV-202-LV is desired but better penetration is needed from a lower viscosity chemistry
- Used routinely in manhole sealing and pipe penetrations
- Excellent choice for tight cracks and joints
$352.86
Drop Shipped
Avanti AV-202-LV Multigrout LV Hydrophilic Polyurethane Grout, 10.5 oz Cartridge
Avanti AV-202-LV is a low-viscosity hydrophilic polyurethane injection resin for active water in tight cracks and joints. Moisture activates it so the resin can permeate poured concrete, precast, and pipe penetrations that a high-viscosity grout will not chase. It cures to a flexible, tough foam with strong adhesion, including underwater work, and can take up to eight times its volume in water.
Key Features
- Low-viscosity version of original AV-202 Multigrout; not the same high-viscosity AV-202 resin.
- Single-component, moisture-activated hydrophilic polyurethane (MDI/TDI blend).
- Viscosity of 500 to 800 cP at 72°F (22°C) for permeation of tight cracks.
- 100% solids, solvent-free, and non-corrosive.
- Free-rise expansion of 300% to 600%.
- Accepts up to 8 times its volume in water.
- Cures flexible with superb adhesive properties.
- May be pumped as a single component without pre-mixing.
- Grouting techniques include EGP, NPT, and V-PAT crack injection.
- Optional AV-203 Multicat cream and gel-time accelerator.
Applications
- Tight cracks or joints in poured concrete, pipe penetrations, or precast structures.
- Active or potential high-volume water in subgrade or wet environments.
- Manhole sealing and pipe penetrations.
- Moving cracks and joints.
- Use with AV-215 Resin Rod or AV-219 Fibrotite (oakum).
- Underwater applications.
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer / Product Name | Avanti International AV-202-LV Multigrout LV™ hydrophilic polyurethane grout |
| TDS Revision | Rev. 07.2026 |
| Formulation | Low-viscosity single-component, moisture-activated MDI/TDI blended polyurethane. Uncured: brown resin. Cured: milky colored, flexible. |
| Water-to-Resin Ratio | Preferred 1:1 for a strong, impermeable bond; effective up to 8:1 as a gel (not 10:1). May be pumped as a single component without pre-mixing. |
| Viscosity | 500 to 800 cP at 72°F (22°C) |
| Flash Point | >200°F (>93°C) |
| Specific Gravity | 1.078 at 72°F (22°C) ± 3% |
| Density | 9.0 lbs./gal (1,078 kg/m³) ± 3% |
| Free-Rise Expansion | 300% to 600% |
| Water Uptake | Up to 8 times its volume in water |
| NSF/ANSI/CAN 61 | Not listed on the AV-202-LV TDS. Use AV-202 Multigrout when potable-water certification is required. |
| Use Temperature | 60°F to 90°F (16°C to 32°C). Warm to about 72°F (22°C) if site temperatures are low. Do not use an open flame as a heat source. Viscosity can rise significantly at 45°F (7°C). |
| Cream / Gel at 1:1 (lab) | 40°F: 0:38 / 3:08; 50°F: 0:28 / 1:46; 60°F: 0:25 / 1:24; 70°F: 0:20 / 1:12; 80°F: 0:15 / 1:06 (min:sec). Cream time is not applicable above 1:1. Field times vary with site water. |
| Tensile Strength / Elongation | Consult Avanti representative |
| Packaging (TDS) | Cartridge approximately 10.1 fl. oz. (approximately 300 ml), case of 12; container 8.8 lbs. (4.0 kg); pail 44 lbs. (20 kg); drum 484 lbs. (220 kg) |
| Storage | 45°F to 95°F (7°C to 35°C), dry. Keep tightly closed. Packaged under dry nitrogen. Do not store catalyzed grout mixed with AV-203. |
| Shipping | Not regulated under US DOT Regulations |
| SDS | AV-202-LV Multigrout LV, revision November 27, 2023 |
Product documents: AV-202-LV Multigrout LV Technical Data Sheet (PDF) | AV-202-LV Multigrout LV Safety Data Sheet (PDF)
Frequently Asked Questions
When should I pick AV-202-LV instead of AV-202 for a tight crack?
Pick AV-202-LV when the crack or joint is tight and you need a low-viscosity resin to permeate poured concrete, precast, or pipe penetrations. AV-202 is the high-viscosity grout for large openings and high-volume water.
Can AV-202-LV permeate precast joints?
Yes. AV-202-LV is engineered to permeate tight cracks or joints in poured concrete, pipe penetrations, or precast structures. Typical viscosity is 500 to 800 cP at 72 F.
Does AV-202-LV work at pipe penetrations?
Yes. AV-202-LV is used successfully in manhole sealing and pipe penetrations. The lower viscosity is what lets it chase water in a tight annular space.
Can AV-202-LV be used underwater?
Yes. AV-202-LV can be used in underwater applications. Moisture activates the resin, so wet or submerged cracks are a listed use.
Can AV-202-LV stay in a moving joint?
Yes. AV-202-LV is an excellent choice for moving cracks and joints. It cures flexible with superb adhesive properties.
Does AV-202-LV take on water as it cures?
Yes. AV-202-LV can accept up to eight times its volume in water and free-rise expands 300 to 600 percent. That uptake is how it fills a wet, tight crack and still cures to a flexible foam.
