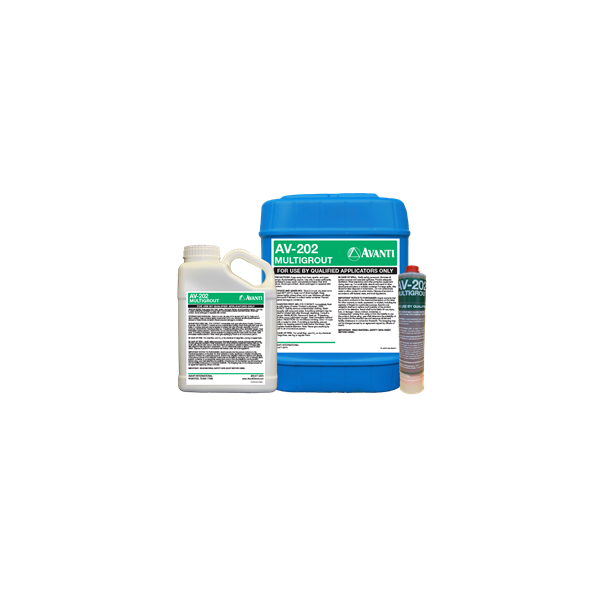

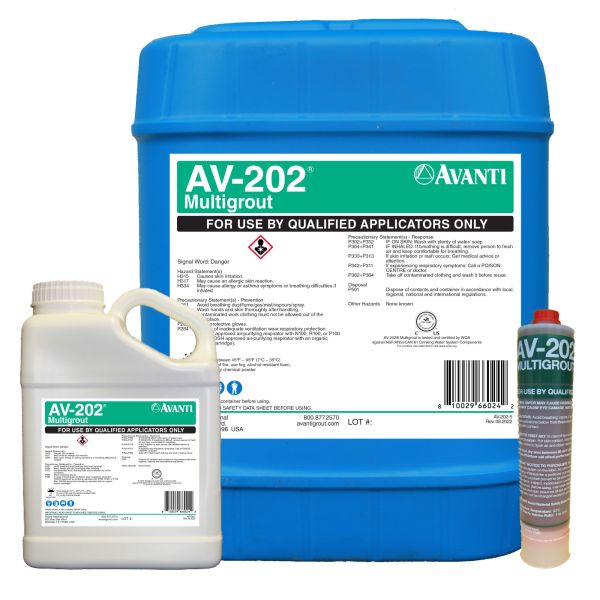

Avanti AV-202 Multigrout 5 Gallon Pail
Avanti AV-202 Multigrout is a single-component, moisture-activated hydrophilic polyurethane injection resin for sealing active water leaks in large cracks or joints in concrete and brick, supplied in a 5 gallon pail holding 44 lb (20 kg) net. It is tested and certified by WQA against NSF/ANSI/CAN 61 for drinking water system components.
- Preferred 1:1 water-to-resin ratio; turns into a gel at 10:1
- 100% solids; free rise expands 300% - 600%
- Not regulated under US DOT regulations
$652.86
Drop Shipped
Avanti AV-202 Multigrout 5 Gallon Pail
Avanti AV-202 Multigrout is a single-component polyurethane injection resin made with an MDI/TDI blend and activated by moisture. It is intended for sealing active water leaks in large cracks or joints in concrete and brick structures, including applications where high-volume water flow is an active or potential problem and a high viscosity chemistry is required. The resin seeks out water and adheres to the substrate, expands into a tight compressive seal, and locks mechanically within the cracks. Mixed at the preferred 1:1 water-to-resin ratio it forms a strong, impermeable bond; at 10:1 it turns into a gel. It is pumped as a single component without pre-mixing, and goes on by the EGP, NPT and V-PAT techniques. AV-202 is tested and certified by WQA against NSF/ANSI/CAN 61 Drinking Water System Components; using the optional AV-203 Multicat accelerator is not covered by that certification.
Key Features
- Tested and certified by WQA against NSF/ANSI/CAN 61 (drinking water system components)
- 100% solids and non-corrosive
- Free rise expands 300% - 600% and cures flexible
- Accepts up to 10 times its volume in water
- Can be used in underwater applications
Applications
- Active water leaks in large cracks or joints in concrete and brick
- High-volume water flow, active or potential
- Manhole sealing, pipe penetrations, and moving cracks and joints
- Joints sealed together with AV-215 Resin Rod or AV-219 Fibrotite (oakum)
Technical Specifications
| Property | Value |
|---|---|
| Type | Hydrophilic polyurethane grout; single-component, moisture-activated, MDI/TDI blend |
| Certification | Tested and certified by WQA against NSF/ANSI/CAN 61 Drinking Water System Components (use restrictions at wqa.org) |
| Solids | 100% |
| Free rise expansion | 300% - 600% |
| Water-to-resin ratio | Preferred 1:1; effective up to 10:1 (gel at 10:1) |
| Viscosity | 3,200 - 6,200 cP at 72 F (22 C) |
| Flash point | 253.4 F (123 C) |
| Specific gravity | 1.090 at 72 F (22 C), plus or minus 3% |
| Density | 9.09 lb/gal (1.090 kg/L), plus or minus 3% |
| Cream / gel time, 1:1 at 70 F (21 C) | 0:21 / 1:12 (min:sec, laboratory) |
| Gel time, 10:1 at 70 F (21 C) | 1:05 (min:sec, laboratory) |
| Use temperature | Best results 60 F - 90 F (16 C - 32 C); warm to about 72 F (22 C) when cold, no open flame |
| Optional accelerator | AV-203 Multicat, at 1:1 or lower water ratios only; not covered by the NSF/ANSI/CAN 61 certification |
| Storage | 45 F - 95 F (7 C - 35 C), dry, container tightly closed; packaged under dry nitrogen |
| Shipping | Not regulated under US DOT regulations |
| Pack | 5 Gallon Pail, 44 lb (20 kg) net |
| Part number | AV-202-5 |
Product documents: Avanti AV-202 Multigrout Data Sheet (PDF)
Frequently Asked Questions
What water-to-resin ratio should I use?
The preferred ratio is 1:1 water to resin, which forms a strong, impermeable bond. AV-202 stays effective up to 10:1 with water, where it turns into a gel, and accepts up to 10 times its volume in water. It is pumped as a single component without pre-mixing. Run a standard cup test with site water to set the reaction time.
How fast does AV-202 react?
At 1:1 water to resin, laboratory cream / gel times are 0:39 / 2:47 at 40 F (4 C), 0:21 / 1:12 at 70 F (21 C) and 0:17 / 0:47 at 80 F (27 C). At 10:1 the gel time is 2:26 at 40 F and 1:05 at 70 F. Resin and water temperatures, site water and site conditions change these times.
Is AV-202 Multigrout certified for potable water?
Yes. AV-202 is tested and certified by WQA against NSF/ANSI/CAN 61 Drinking Water System Components; use restrictions are listed at wqa.org. Using AV-203 Multicat with it is not covered by that certification. A non-potable version, AV-202-NTP Multigrout NTP, is also made.
Can AV-203 Multicat be added?
At low temperatures or to cut off high water flows, use no more than 78 fl oz of AV-203 (one container) per pail of AV-202, and never when injecting at ratios higher than 1:1 water to grout. It is not a stand-alone solution. At 1:1 with full catalyst (8:1 resin to catalyst), cream / gel time is 0:11 / 0:39 at 60 F. Do not store grout that has been catalyzed.
What temperature should I grout at?
For best results use AV-202 between 60 F and 90 F (16 C and 32 C). If the site is cold, warm the resin to about 72 F (22 C) with a heat source other than an open flame. At 45 F (7 C) the viscosity can rise significantly, which makes mixing with the reaction water more difficult.
How do I clean equipment and store the resin?
Never clean with water, because the resin is water activated and will set in hoses and equipment. Flush uncured resin with AV-284 Pump Wash, purge with AV-208 Technical Grade Acetone before use, and remove cured resin with AV-222 Cleaner. Store between 45 F and 95 F (7 C and 35 C) in a dry place with the container tightly closed; opened containers should not be stored at the low end of that range.
