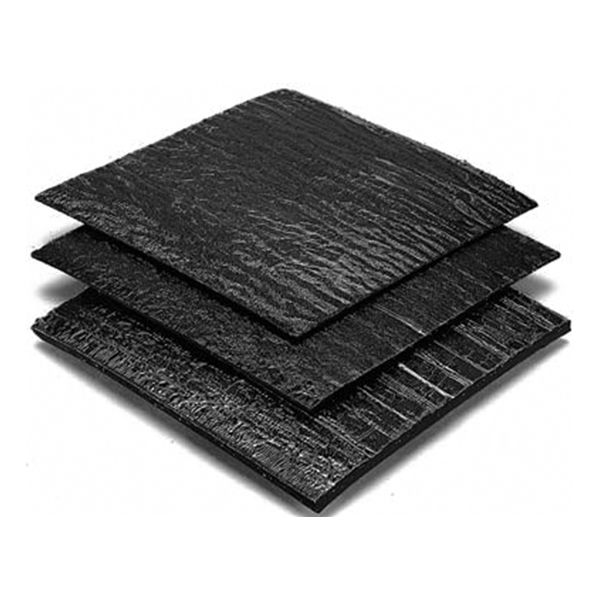

WR Meadows PC2R PROTECTION COURSE 39-3/8 Inch x 49 ft Roll
WR Meadows PC2R PROTECTION COURSE is a 94 mil SBS-modified bitumen protection course on a fiberglass mat, supplied in a 39-3/8 Inch x 49 ft 1 Inch roll (about 161 sq ft gross, about 150 sq ft net). It is intended to protect HRM 714 and HYDRALASTIC 836 waterproofing from foot traffic in between-slab construction.
- Embeds into hot, liquid-tacky HRM 714 or HYDRALASTIC 836 with 2-3 Inch laps
- Sanded on both faces: bonds below, slip resistance on top
- Place overburden within 30 days of application
$427.53
Drop Shipped
WR Meadows PC2R PROTECTION COURSE 39-3/8 Inch x 49 ft Roll
WR Meadows PC2R PROTECTION COURSE is a 94 mil (2.4 mm) SBS (styrene-butadiene-styrene) modified bitumen protection course: a fiberglass mat saturated and coated with an asphaltic and SBS elastomer blend. The blend gives the sheet elasticity and flexibility, and the full-width fiberglass reinforcement gives tensile strength, dimensional stability, and puncture and tear resistance. It is intended as a protection course over HRM 714 and HYDRALASTIC 836 waterproofing, against damage from foot traffic, in between-slab construction such as plaza decks, roof terraces, promenade decks, pedestrian concourses, tunnels, parking garage decks and planter boxes. For vehicular traffic or extreme physical abuse, WR Meadows calls for PROTECTION COURSE PC-3. Overburden should be placed within 30 days of applying PC2R.
Key Features
- 94 mil SBS-modified bitumen on a full-width fiberglass mat
- Sanded-Sanded design: bottom bonds to hot membrane, top gives slip resistance
- Supplied in rolls for faster installation
- Cuts with a roofer's knife or shears to fit protrusions
- Five-year shelf life when properly stored
Applications
- Plaza decks, roof terraces and promenade decks
- Pedestrian concourses and tunnels
- Parking garage decks and planter boxes
- Foot-traffic protection over HRM 714 and HYDRALASTIC 836
Technical Specifications
| Property | Value |
|---|---|
| Type | SBS-modified bitumen protection course, fiberglass mat reinforced |
| Thickness (ASTM D5147) | 94 mils (2.38 mm) |
| Roll size | 39 3/8 Inch x 49 ft 1 Inch (1 m x 15 m) |
| Coverage per roll | About 161 sq ft (14.96 m²) gross; about 150 sq ft (13.94 m²) net, depending on overlap pattern |
| Roll weight | 94 lb |
| Tensile strength, MD/XMD | 120/110 lbf/in at 0 F; 97/67 lbf/in at 73 F |
| Elongation at max load | 4% at 0 F; 3% at 73 F |
| Tear strength, MD/XMD, 73 F | 105/75 lbf |
| Dimensional stability | <0.2% |
| Standard | ASTM D6163 Type I, Grade S |
| Shelf life | Five years when properly stored; not above 100 F (38 C) or in direct sun for extended periods |
| Pack | 39-3/8 Inch x 49 ft roll |
| Part number | 5720390490 |
Product documents: WR Meadows PC2R PROTECTION COURSE Data Sheet (PDF)
Frequently Asked Questions
What is WR Meadows PC2R PROTECTION COURSE used with?
It is a protection course for HRM 714 and HYDRALASTIC 836 waterproofing, intended to protect the membrane from foot traffic. For areas with vehicular traffic or where extreme physical abuse is expected, WR Meadows calls for PROTECTION COURSE PC-3 instead.
How is PC2R installed?
Roll it out and embed it into the hot, liquid-tacky HRM 714 or HYDRALASTIC 836, overlapping 2-3 Inch, then light roll or broom it into place. For added waterproofing and protection against protrusions, seal all laps with HRM 714. It should form a continuous layer tightly bonded over the whole membrane, and the overburden should be placed within 30 days.
What is PC2R not compatible with?
PC2R is not compatible with HYDRALASTIC 836 SL, some polyether and most urethane waterproofing membranes, oils and solvents. Where it is adhered to a membrane, use an approved adhesive, and do not place it over liquid membranes that contain volatile solvents until all of the solvent has evaporated. Consult the membrane manufacturer before placing it.
How much does a roll cover, and how should it be stored?
Each roll is about 161 sq ft (14.96 m²) gross and about 150 sq ft (13.94 m²) net, depending on the overlap pattern. Store rolls palletized, out of direct sun and protected from damage, not above 100 F (38 C), and do not double-deck pallets. Shelf life is five years when properly stored.
