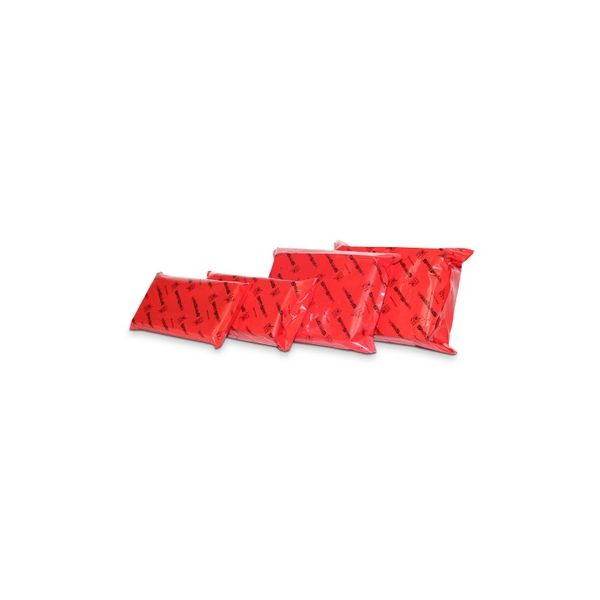

STI SpecSeal SSB24 Firestop Pillow 2in x 4in x 9in
SpecSeal SSB24 is a 2 x 4 x 9 in intumescent firestop pillow with a mineral-fiber core in a heat-sealed poly bag for through-penetrations. Crews compress and stack the pillows like bricks so cable and pipe openings stay reinstallable.
- Seals medium to large openings with pipes, conduits, cables, trays, bus ducts, and HVAC ducts.
- Stacks in a brick-like pattern so cable work can be opened and resealed without destroying the seal.
- Works from one side on shaft-wall and other limited-access assemblies when the design allows pillows.
$18.10
Availability:
In stock
( 10 Available )
SpecSeal SSB24 Firestop Pillow - 2 X 4 X 9
SpecSeal SSB24 is a 2 x 4 x 9 in intumescent firestop pillow with a mineral-fiber core sealed in a water-resistant intumescent membrane and heat-sealed poly bag for through-penetrations. Crews compress and stack the pillows like bricks so pipes, conduits, cables, trays, and ducts stay sealed yet easy to reopen when cable trays need later adds or pulls.
Key Features
- SSB24 is the 2 x 4 x 9 in SpecSeal firestop pillow for medium to large through-penetrations.
- Uses a monolithic mineral-fiber core coated with a flexible intumescent membrane inside a heat-sealed poly bag.
- Stacks like bricks under compression so crews can open the seal later for cable adds without destroying the barrier.
- Suits data, communications, power, and control cable openings plus trays, innerducts, bus ducts, and HVAC ducts.
- Fits one-sided shaft-wall and other limited-access installs when the published design calls for pillows.
- Stays lightweight for hand packing and needs no special tools beyond the wire mesh the design may require.
- Expands in all directions when heat hits the intumescent membrane for a tough, tight seal.
Technical Specifications
| Property | Value |
|---|---|
| Catalog number | SSB24 |
| UPC | 730573062401 |
| Size | 2 in x 4 in x 9 in (50 x 101 x 225 mm) |
| Color | Red |
| Construction | Intumescent-coated mineral fiber in heat-sealed poly bag |
| Density | 4 pcf (64 kg/cu m) |
| Installed compression | 25% to 33% |
| In-service temperature | Less than 130°F (54°C) |
| Air leakage (L rating) | Less than 1 CFM/sq ft (pillows only) |
| Shelf life | No limit |
Product documents: SpecSeal SSB Firestop Pillows Product Data Sheet
Frequently Asked Questions
What penetrations is SpecSeal SSB24 sized to firestop?
SSB Firestop Pillows are designed for medium to large openings with pipes, conduits, cables, insulated metal pipes, bus ducts, and HVAC ducts. The PDS calls out data, communications, power, and control cables, innerducts, and cable trays as especially good fits, plus one-sided shaft-wall work and other installs where access is limited to one side of the assembly.
How do crews install the 2 x 4 x 9 in SSB24 pillows?
Compress and stack the pillows into the opening in a brick-like fashion to the compression range named on the PDS (25% to 33% as installed). Follow the published UL or FM system for packing depth, wire mesh, and putty. No special tools are required beyond the mesh or putty the design may call for. Do not use damaged pillows whose poly bag is torn.
Can SSB24 pillows be removed and reinstalled for cable changes?
Yes. The PDS retrofit notes say cables may be added or replaced by removing mesh when present, then removing and replacing pillows as required. Do not weave cables through wire mesh. After cable work, reinstall pillows and putty as required and replace the mesh. If pillows are too thin from excess handling, replace them or add new pillows so the seal still applies pressure.
What fire ratings do SpecSeal SSB pillows support?
SSB Pillows are the basis for systems tested to ASTM E814 (UL1479) and CAN/ULC-S115, plus the time-temperature curve of ASTM E119 (UL263). Tested systems provide up to a 4-hour rating for penetrations through gypsum board, concrete, CMU, or concrete tilt-up walls, as well as concrete or concrete-over-steel-deck floors, with additional systems up to 3 hours in gypsum board walls. Follow the published design.
What temperature and storage limits apply to SSB24?
In-service temperature and storage temperature are both less than 130 F (54 C). Shelf life has no limit when the poly bag stays intact. VOC content is 0.0 g/L. STC is 60 on a specific construction. Air leakage for properly installed pillows is less than 1 CFM per sq ft at ambient and elevated temperature tests named on the PDS.
Which other SSB pillow sizes appear on the PDS besides SSB24?
The preferred Indcon amfile PDS also lists SSB14 (1 x 4 x 9), SSB26 (2 x 6 x 9), and SSB36 (3 x 6 x 9). Only SSB24 is currently live on Indcon in this batch, so no sister size box is linked for this live SKU.
