Simpson Strong-Tie Drop-In (DIAB) Internally Threaded Anchor 3/4 Case 20 DIAB75

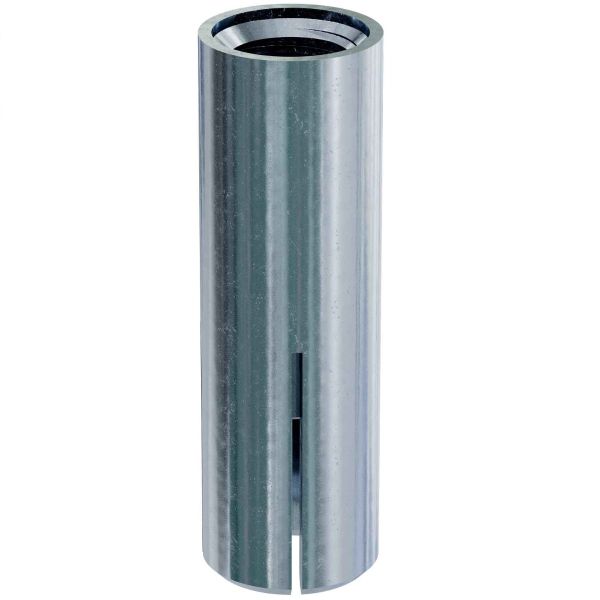

DIAB 3/4 in flush drop-in, model DIAB75. Zinc-plated carbon steel. Box of 20. Drill 1 in. UNC 10 thread.
- 3/4 in flush, model DIAB75, box of 20
- Drill 1 in; set until the tool shoulder seats
- Coil-thread 3/4 in listed separately
$40.00
Availability:
In stock
Drop Shipped DIAB Drop-In Anchor 3/4, DIAB75
DIAB is a zinc-plated carbon steel internally threaded drop-in for solid concrete. This 3/4 in flush insert, model DIAB75, ships a 20-count box. Drill 1 in to the 3 1/8 in body length, set flush, and drive the plug until the setting-tool shoulder seats. UNC 10 threads. Coil-thread 3/4 in is listed separately. Live flush sizes are 3/8, 1/2, 5/8, and 3/4.
Looking for another size?
Key Features
- Internally threaded drop-in for solid concrete
- 3/4 in flush, model DIAB75, box of 20
- Drill 1 in to 3 1/8 in body length; UNC 10
- Set with the matching setting tool until the shoulder seats
- Coil-thread 3/4 in listed separately
Applications
- Flush-mount threaded rod in concrete
- Overhead hanger rod
- Fixtures that take a 3/4 in UNC bolt
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | DIAB Drop-In |
| Model | DIAB75 |
| Rod | 3/4 in UNC 10 |
| Drill bit | 1 in |
| Body length | 3 1/8 in |
| Box qty | 20 |
| Style | Flush |
| Coating | Zinc-plated carbon steel |
| Not | Coil-thread or lipped |
Frequently Asked Questions
What is this?
A 3/4 in flush DIAB drop-in, model DIAB75, box of 20. Internally threaded for 3/4 in UNC rod.
How do I set it?
Drill 1 in to the 3 1/8 in body length, tap the insert flush, then drive the setting tool until the shoulder seats.
Coil-thread?
This is flush UNC. Coil-thread DIAB75C is listed separately.
What other flush sizes are live?
3/8, 1/2, 5/8, and 3/4. There is no live 1/4 flush DIAB.
Who makes it?
Simpson Strong-Tie.
