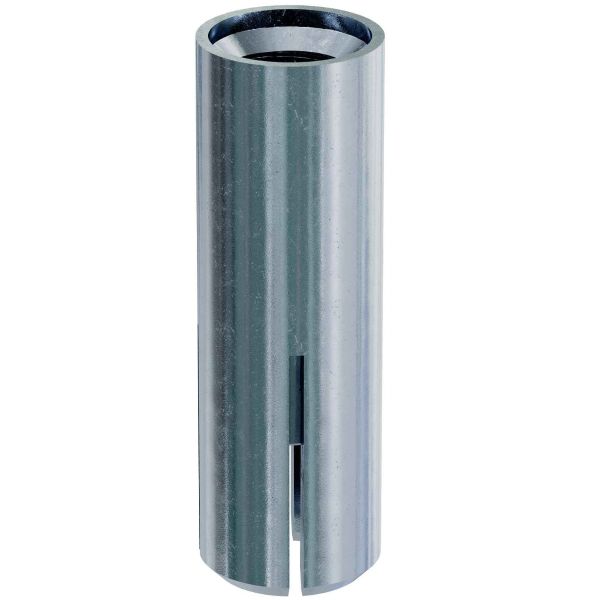

Simpson Strong-Tie Drop-In (DIAB) Internally Threaded Anchor 3/8 Case 50 DIAB37
DIAB 3/8 in flush drop-in, model DIAB37. Zinc-plated carbon steel. Box of 50. Drill 1/2 in. UNC 16 thread.
- 3/8 in flush, model DIAB37, box of 50
- Drill 1/2 in; set until the tool shoulder seats
- Lipped 3/8 in listed separately
$15.08
Availability:
In stock
Drop Shipped DIAB Drop-In Anchor 3/8, DIAB37
DIAB is a zinc-plated carbon steel internally threaded drop-in for solid concrete. This 3/8 in flush insert, model DIAB37, ships a 50-count box. Drill 1/2 in to the 1 9/16 in body length, set flush, and drive the plug until the setting-tool shoulder seats. UNC 16 threads. Lipped 3/8 in is listed separately. Live flush sizes are 3/8, 1/2, 5/8, and 3/4.
Looking for another size?
Key Features
- Internally threaded drop-in for solid concrete
- 3/8 in flush, model DIAB37, box of 50
- Drill 1/2 in to 1 9/16 in body length; UNC 16
- Set with the matching setting tool until the shoulder seats
- Lipped 3/8 in listed separately
Applications
- Flush-mount threaded rod in concrete
- Overhead hanger rod
- Fixtures that take a 3/8 in UNC bolt
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | DIAB Drop-In |
| Model | DIAB37 |
| Rod | 3/8 in UNC 16 |
| Drill bit | 1/2 in |
| Body length | 1 9/16 in |
| Box qty | 50 |
| Style | Flush |
| Coating | Zinc-plated carbon steel |
| Not | Lipped or coil-thread |
Frequently Asked Questions
What is this?
A 3/8 in flush DIAB drop-in, model DIAB37, box of 50. Internally threaded for 3/8 in UNC rod.
How do I set it?
Drill 1/2 in to the 1 9/16 in body length, tap the insert flush, then drive the setting tool until the shoulder seats.
Lipped?
This is flush. Lipped DIABL37 is listed separately.
What other flush sizes are live?
3/8, 1/2, 5/8, and 3/4. There is no live 1/4 flush DIAB.
Who makes it?
Simpson Strong-Tie.
