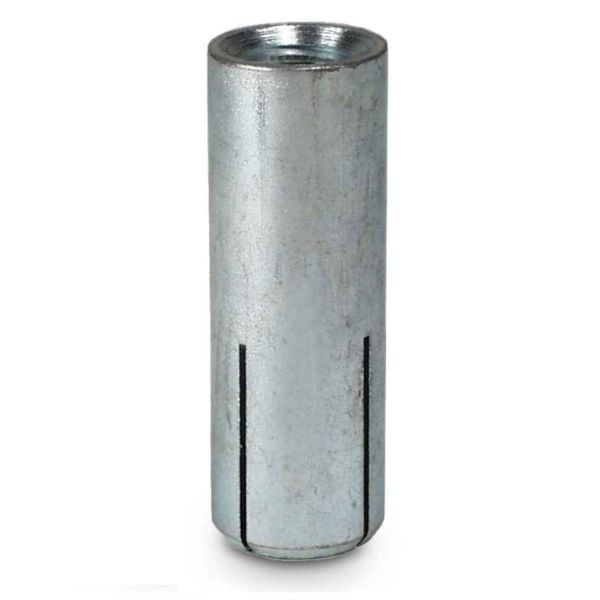

Simpson Strong-Tie Drop-In (DIAB) Internally Threaded Anchor 1/2 Case 50 DIAB50
DIAB 1/2 in flush drop-in, model DIAB50. Zinc-plated carbon steel. Box of 50. Drill 5/8 in. UNC 13 thread.
- 1/2 in flush, model DIAB50, box of 50
- Drill 5/8 in; set until the tool shoulder seats
- Coil-thread and lipped 1/2 in listed separately
$22.21
Availability:
In stock
Drop Shipped DIAB Drop-In Anchor 1/2, DIAB50
DIAB is a zinc-plated carbon steel internally threaded drop-in for solid concrete. This 1/2 in flush insert, model DIAB50, ships a 50-count box. Drill 5/8 in to the 2 in body length, set flush, and drive the plug until the setting-tool shoulder seats. UNC 13 threads. Coil-thread and lipped 1/2 in inserts are listed separately. Live flush sizes are 3/8, 1/2, 5/8, and 3/4.
Looking for another size?
Key Features
- Internally threaded drop-in for solid concrete
- 1/2 in flush, model DIAB50, box of 50
- Drill 5/8 in to 2 in body length; UNC 13
- Set with the matching setting tool until the shoulder seats
- Coil-thread and lipped versions listed separately
Applications
- Flush-mount threaded rod in concrete
- Overhead hanger rod
- Fixtures that take a 1/2 in UNC bolt
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | DIAB Drop-In |
| Model | DIAB50 |
| Rod | 1/2 in UNC 13 |
| Drill bit | 5/8 in |
| Body length | 2 in |
| Box qty | 50 |
| Style | Flush |
| Coating | Zinc-plated carbon steel |
| Not | Coil-thread or lipped |
Frequently Asked Questions
What is this?
A 1/2 in flush DIAB drop-in, model DIAB50, box of 50. Internally threaded for 1/2 in UNC rod.
How do I set it?
Drill 5/8 in to the 2 in body length, tap the insert flush, then drive the setting tool until the shoulder seats.
Coil or lipped?
This is flush UNC. Coil-thread DIAB50C and lipped DIABL50 are listed separately.
What other flush sizes are live?
3/8, 1/2, 5/8, and 3/4. There is no live 1/4 flush DIAB.
Who makes it?
Simpson Strong-Tie.
