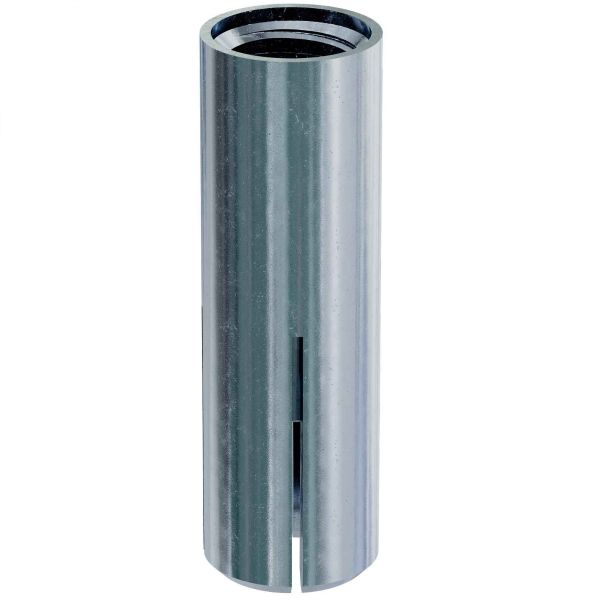

Simpson Strong-Tie Drop-In (DIAB) Internally Threaded Anchor Coil Thread 1/2 Case 50 DIAB50C
DIAB 1/2 in coil-thread drop-in, model DIAB50C. Box of 50. Drill 5/8 in. Takes 1/2 in coil rod, not UNC.
- 1/2 in coil-thread, model DIAB50C, box of 50
- Drill 5/8 in; coil rod 6 threads per inch
- Flush UNC and lipped 1/2 in listed separately
$46.29
Availability:
In stock
Drop Shipped DIAB Coil-Thread Drop-In 1/2, DIAB50C
DIAB50C is the 1/2 in coil-thread drop-in, not UNC. Zinc-plated carbon steel for solid concrete. Box of 50. Drill 5/8 in to the 2 in body length, set flush, and drive the plug until the setting-tool shoulder seats. It takes 1/2 in coil rod (6 threads per inch). The 3/4 in coil-thread is listed as the other size. Flush UNC and lipped 1/2 in inserts are listed separately.
Looking for another size?
Key Features
- Coil-thread drop-in for 1/2 in coil rod
- Model DIAB50C, box of 50
- Drill 5/8 in to 2 in body length
- Set with the matching setting tool until the shoulder seats
- Flush UNC DIAB50 and lipped DIABL50 listed separately
Applications
- Coil-thread rod in concrete
- Forming and coil-rod hangers
- Jobs specified 1/2 in coil, not UNC
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | DIAB Coil-Thread |
| Model | DIAB50C |
| Rod | 1/2 in coil, 6 tpi |
| Drill bit | 5/8 in |
| Body length | 2 in |
| Box qty | 50 |
| Style | Coil-thread |
| Other coil size | 3/4 in DIAB75C, live |
| Not | UNC flush or lipped |
Frequently Asked Questions
UNC or coil?
Coil. DIAB50C takes 1/2 in coil rod. Flush UNC DIAB50 is listed separately.
How do I set it?
Drill 5/8 in to 2 in, tap flush, drive the setting tool until the shoulder seats.
Other coil size?
The 3/4 in coil-thread DIAB75C is listed separately.
Lipped?
Lipped DIABL50 is UNC, listed separately.
Who makes it?
Simpson Strong-Tie.
