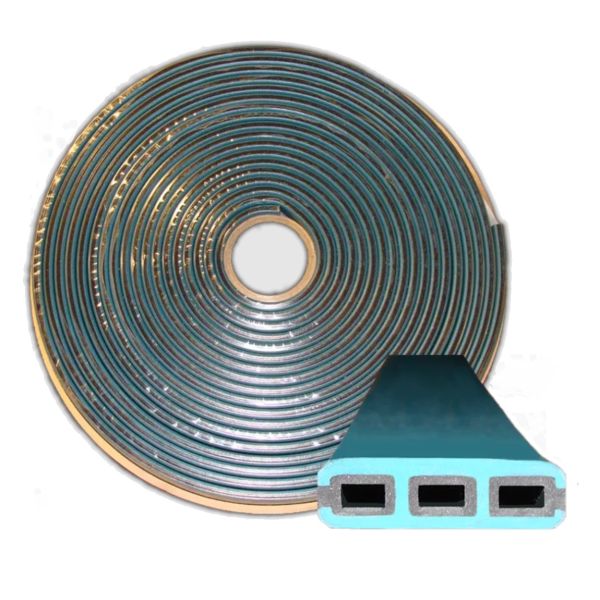

Sika Greenstreak Hydrotite 32.8' Expandable Waterstop CJ-0725-3KADH
Sika Hydrotite is a state-of-the-art hydrophilic waterstop with unmatched durability and watersealing capacity. Comprised of non-bentonite, modified chloroprene rubber, Sika Hydrotite expands up to eight times its original volume when exposed to water. This expansion creates an effective compression seal within joints of limited movement.
- Special expansion delay coating to allow concrete cure prior to expansion
- Adhesive back
- Withstands high hydrostatic pressures
$381.20
Availability:
In stock
( 8 Available )
SKU
21230
Sika Hydrotite CJ-0725-3K-ADH – 32.8' Expandable Adhesive-Backed Waterstop
Sika Hydrotite CJ-0725-3K-ADH is a high-performance, adhesive-backed, co-extruded hydrophilic waterstop engineered to seal construction joints against water ingress. Supplied in a 32.8-foot roll, this profile expands up to eight times its original volume when exposed to moisture, forming a reliable compression seal within cast-in-place concrete joints. Constructed from modified chloroprene rubber, it features a directional expansion profile with a delayed swell coating to ensure proper concrete cure before activation. This profile offers easy "peel-and-stick" installation, excellent durability, and is NSF/ANSI 61 approved for potable water structures.
Looking for another type?
Key Features:
- Expands up to 8x its original volume upon water contact
- Non-bentonite, modified chloroprene rubber for superior resilience
- Peel-and-stick adhesive backing for easy installation
- Delayed swell coating allows concrete to fully cure before activation
- Directional expansion reduces concrete stress and cracking
- NSF/ANSI 61 certified for potable water applications
- Ideal for retrofits and new construction
- Withstands hydrostatic pressures up to 150 feet
Applications:
- Water and wastewater treatment plants
- Tunnels, culverts, and dams
- Below-grade foundations and slabs
- Pipe penetrations and retaining walls
- Swimming pools and storage tanks
Technical Specifications:
| Property | Value |
|---|---|
| Profile Dimensions | 7 mm × 25 mm (0.28" × 0.98") |
| Roll Length | 10 meters (32.8 feet) |
| Material Type | Co-extruded modified chloroprene rubber |
| Hardness (Shore A) | 52 ± 5 (Hydrophilic), 54 min (Non-hydrophilic) |
| Tensile Strength | 350 psi (Hydrophilic), 1300 psi (Non-hydrophilic) |
| Elongation | 600% (Hydrophilic), 400% (Non-hydrophilic) |
| Water Expansion Volume | 500% minimum |
| Hydrostatic Resistance | Up to 150 ft water head |
Frequently Asked Questions:
Can Hydrotite be installed before the second concrete pour?
Yes. Hydrotite CJ profiles are designed for installation after the first pour and before the second pour without needing to split forms.
Does this product come with adhesive backing?
Yes. The CJ-0725-3K-ADH model includes a peel-and-stick adhesive for faster installation.
Is Hydrotite suitable for potable water structures?
Yes. All CJ profiles are certified to meet NSF/ANSI 61 for use in potable water applications.
| Brand | Sika |
|---|
