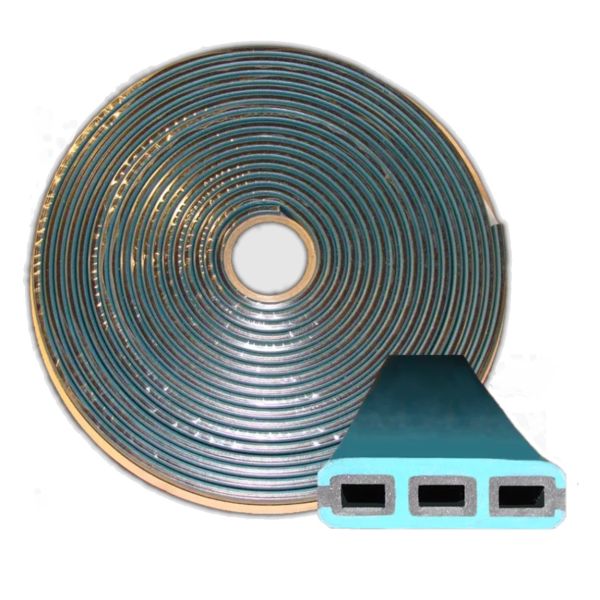

Sika Greenstreak Hydrotite CJ-1020-2K 32.8ft Roll 419020
$336.56
Sika Hydrotite is a state-of-the-art hydrophilic waterstop with unmatched durability and watersealing capacity. Comprised of non-bentonite, modified chloroprene rubber, Sika Hydrotite expands up to eight times its original volume when exposed to water. This expansion creates an effective compression seal within joints of limited movement.
- Special expansion delay coating to allow concrete cure prior to expansion
- Simple, low cost installation
- Withstands high hydrostatic pressures
Availability: In stock ( 10 Available )
SKU
21273
Sika Greenstreak Hydrotite CJ-1020-2K – Hydrophilic Waterstop
Sika Greenstreak Hydrotite CJ-1020-2K is an advanced hydrophilic waterstop designed to provide superior waterproofing performance in concrete construction joints. Manufactured from modified chloroprene rubber, this non-bentonite-based waterstop expands up to eight times its original volume upon contact with water, forming a secure, watertight compression seal. Its expansion delay coating ensures proper curing before activation, making it ideal for water treatment facilities, tunnels, foundations, and other critical waterproofing applications. With its reliable and long-lasting performance, Sika Hydrotite CJ-1020-2K effectively prevents water intrusion, even under high hydrostatic pressure conditions.
Key Features:
- Hydrophilic waterstop expands up to 8 times its original volume upon water exposure
- Non-bentonite composition ensures long-term stability and performance
- Expansion delay coating prevents premature activation during concrete curing
- Provides a durable, watertight compression seal for concrete joints
- Designed to withstand high hydrostatic pressure (up to 150' head)
- Can be used in both new construction and retrofit applications
- Easy to install with peel-and-stick adhesive backing
- Compliant with NSF/ANSI 61 for potable water applications
Technical Specifications:
| Property | Value |
|---|---|
| Material Composition | Modified Chloroprene Rubber |
| Expansion Capability | Up to 8x original volume |
| Shore A Hardness | Hydrophilic Rubber: 52 ±5, Chloroprene Rubber: 54 Minimum |
| Tensile Strength | Hydrophilic Rubber: 350 psi min, Chloroprene Rubber: 1300 psi min (ASTM D412) |
| Elongation | Hydrophilic Rubber: 600% min, Chloroprene Rubber: 400% min (ASTM D412) |
| Profile Size | 10mm x 20mm (0.39" x 0.79") |
| Roll Length | 32.8 feet (10 meters) |
| Installation Method | Peel-and-stick adhesive backing or mechanical fastening |
| Storage Conditions | Store in a cool, dry place away from moisture before installation |
Frequently Asked Questions:
How does Sika Hydrotite CJ-1020-2K work?
It expands upon water exposure, creating a compression seal within the concrete joint to prevent water infiltration.
Where can this waterstop be used?
It is commonly used in water treatment plants, tunnels, retaining walls, dams, slabs on grade, and other waterproofing applications.
Can Sika Hydrotite be installed in wet conditions?
No, it should be stored in a dry environment before installation to prevent premature expansion.
What is the recommended concrete coverage?
A minimum of 2 inches of concrete coverage is required to prevent cracking from expansion pressure.
For more information and installation guidelines, visit Sika USA
| Brand | Sika |
|---|
