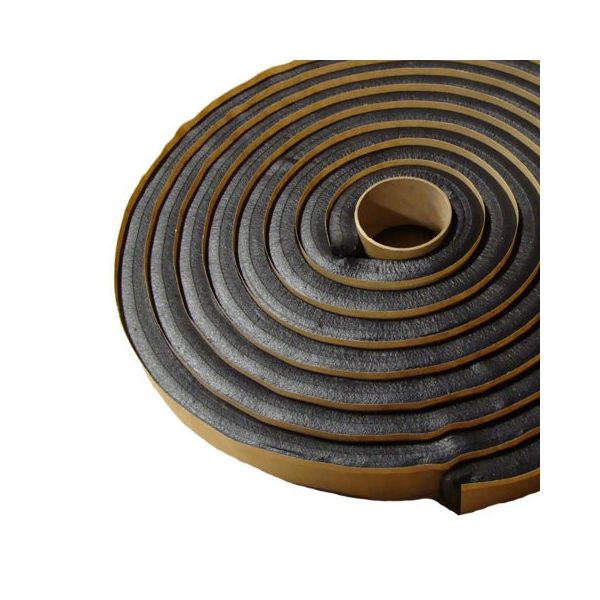

Sika Greenstreak Lockstop 3/4in x 1in 100ft Carton 419273
Lockstop Waterstop is a strip-applied mastic waterstop for nonmoving concrete joints. When properly installed using Lockstop Primer Adhesive, Lockstop creates a watertight seal between concrete surfaces. Lockstop is suitable for a variety of nonmoving joint applications, including:
- Exhibits self healing properties
- Will not expand when subjected to moisture
- Can be installed in nearly all weather conditions and temperatures
$185.76
Availability:
Out of stock
SKU
21184
Sika Greenstreak Lockstop – 3/4 in x 1 in x 100 ft Carton
Lockstop is a strip-applied mastic waterstop for nonmoving concrete joints. Installed with Lockstop Primer Adhesive, it forms a watertight seal without swelling or creating internal joint pressure, and it requires minimal concrete cover. The pliable profile conforms to the substrate and exhibits self-healing characteristics for reliable performance in a wide range of temperatures and weather conditions.
Key Features
- Non-expansive mastic waterstop for static construction joints.
- Creates a watertight seal when used with Lockstop Primer Adhesive.
- Self-healing, pliable material conforms to uneven substrates.
- Install in most weather and temperature conditions.
- Can be placed outside reinforcing steel with minimal cover.
- Chemical resistance to common 5 percent solutions with no visible deterioration.
- Simple lap splices and molded corners; can be bent to avoid cuts.
Applications
- Retaining walls and box culverts.
- Vaults, slabs, and elevator shafts.
- Concrete pipe penetrations and similar details.
- Other nonmoving construction joints requiring a positive waterstop.
Technical Specifications
| Packaging (this item) | 3/4 in x 1 in x 16 ft 8 in rolls, 6 rolls per carton (100 ft total) |
| Appearance / Color | Black mastic strip |
| Shelf Life / Storage | 2 years in unopened cartons stored cool, dark, and dry |
| Mass per Unit Area | 1.22 (ASTM D-71) |
| VOC Content | 1.2% (ASTM D-6) |
| Chemical Resistance | No visible deterioration in 5% solutions of KOH, HCl, H2SO4, NaOH, and H2S |
Frequently Asked Questions
How is Lockstop installed?
Brush a 2 in wide coat of Lockstop Primer Adhesive along the joint and allow about 2 hours to dry. Press Lockstop firmly into the primed area, achieving roughly 25 percent lateral spread. Apply primer and waterstop the same day.
Can I fasten it mechanically?
Yes. In vertical or overhead work, concrete nails may be used at about 12 in on center in addition to primer adhesive.
How are splices made?
Lap ends side-by-side about 1 in, then mold the material until there are no gaps or air pockets. Lockstop can also be bent around corners to avoid cutting.
When should the separation paper be removed?
Do not remove it until just before the second concrete pour. Inspect the strip for continuity and cleanliness before placing concrete.
Does it swell like hydrophilic waterstops?
No. Lockstop does not expand, so it does not create internal joint pressure and can be located outside reinforcing steel with minimal cover.
