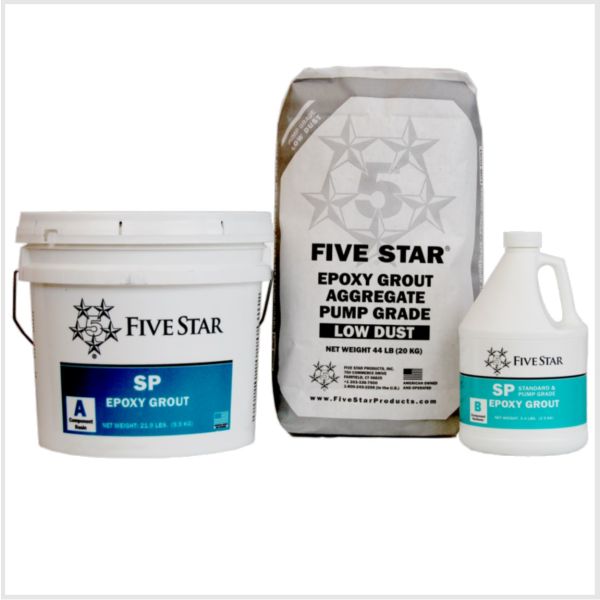

Five Star SP Epoxy Grout PG
Five Star SP Epoxy Grout PG is the next generation in ultra-high performance epoxy grout. Five Star SP Epoxy Grout PG has extremely high compressive strength, is expansive non-shrink, with ultra-low creep and outstanding effective bearing area.
- Ultra-high 1 and 7 Day Strengths
- Very Low Creep
- Excellent Chemical Resistance
$975.69
Five Star SP Epoxy Grout PG
Five Star SP Epoxy Grout PG is a pump-grade, 100% solids epoxy grout for high-performance machinery under heavy dynamic load. The expansive, non-shrink mix delivers ultra-high early strength, very low creep, and 95% effective bearing area. Pour or pump it under wind-turbine bases, compressors, presses, and skid-mounted equipment where alignment has to hold.
Key Features
- Ultra-high 1-day and 7-day compressive strength
- Very low creep under sustained load
- 95% effective bearing area
- Expansive, non-shrink precision grout
- Excellent chemical resistance
- Pump or pour placement with soap-and-water cleanup
Applications
- Wind turbine bases and crane rails
- Compressors and turbomachinery
- Presses and stamping machines
- Pumps and rotating equipment
- Skid-mounted equipment and high dynamic loads
Technical Specifications
| Property | Value |
|---|---|
| Type | Three-component 100% solids pump-grade epoxy grout |
| Working time at 70°F (21°C) | 30 minutes |
| Minimum plate clearance | 1 in |
| Placement depth | 1 in to 4 in |
| Compressive strength (1 / 7 / 28 day) | 16,500 / 17,500 / 20,000 psi |
| Post-cured compressive strength | 22,000 psi |
| Effective bearing area | 95% |
| Flexural strength | 5,500 psi |
| Maximum in-service temperature | 250°F (120°C) |
| Packaging / yield | Approx. 1.55 ft³ unit |
Product documents: SP Epoxy Grout PG Technical Data Sheet
Frequently Asked Questions
Can Five Star SP Epoxy Grout PG be pumped into place?
Yes. Five Star SP Epoxy Grout PG may be poured or pumped. When pumping, a peristaltic pump often produces the best results.
What equipment is Five Star SP Epoxy Grout PG used under?
Five Star SP Epoxy Grout PG is used on wind-turbine bases, crane rails, compressors, turbo-machinery, presses, stamping machines, pumps, rotating equipment, and skid-mounted equipment under high dynamic load.
How strong is Five Star SP Epoxy Grout PG at one day?
Five Star SP Epoxy Grout PG is an ultra-high-performance epoxy grout. Typical compressive strength is about 16,500 psi at one day at 70 F.
What placement depth is typical for Five Star SP Epoxy Grout PG?
Typical placement depth for Five Star SP Epoxy Grout PG is 1 to 4 inches. Contact Five Star Products before placements greater than 4 inches.
Does Five Star SP Epoxy Grout PG have ultra-low creep?
Yes. Five Star SP Epoxy Grout PG is formulated for ultra-low creep under load so precision equipment stays aligned.
Is Five Star SP Epoxy Grout PG chemically resistant?
Yes. Five Star SP Epoxy Grout PG has excellent chemical resistance for high-performance machinery grouting.
