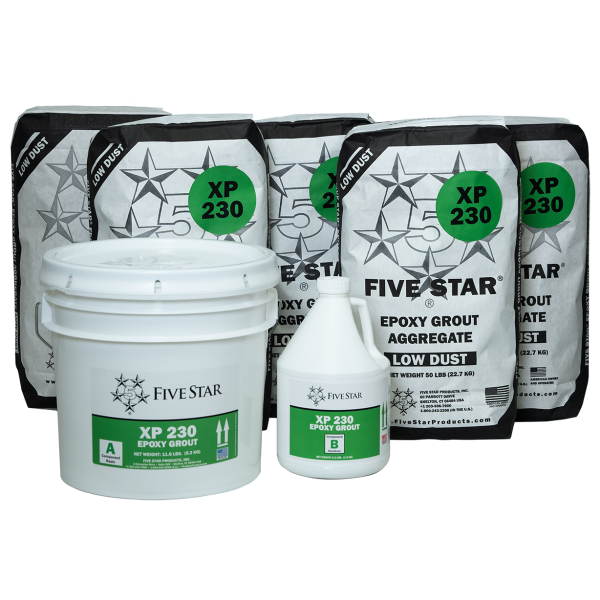

Five Star XP-230 Epoxy Grout 1.95 Cubic Foot Kit

Five Star XP 230 Epoxy Grout is the highest compressive strength epoxy grout in the Five Star portfolio. Features extremely high early strength gain, ultra-high ultimate compressive strength, and a high fatigue resistance under dynamic loading conditions.

Fast strength gain at both hot & cold temperatures
Place up to 36 inches depth in a single pour
High dimensional stability, non-shrink

$1,219.59

Drop Shipped

Details

Five Star XP-230 Epoxy Grout

Five Star XP-230 Epoxy Grout is a three-component, 100% solids, low-exotherm epoxy grout for ultra-high-strength precision support of equipment and foundations. Place up to 36 inches in a single pour on conventional grouting and rebuilds. Long working time, high fatigue resistance, and a low-dust formula keep placements moving in hot or cold conditions.

Key Features

Ultra-high early and 28-day compressive strength
Fast strength gain in hot and cold conditions
Place up to 36 inches in a single pour
Low exotherm for higher monolithic pours
High fatigue resistance under dynamic loading
Low-dust formula with about 45 minutes of working time

Applications

Precision equipment grouting
Foundation rebuilds
Floor overlays
Ultra-high load applications
Anchor bolt and dowel installations

Technical Specifications

Property	Value
Type	Three-component 100% solids epoxy grout
Working time at 70°F (21°C)	45 minutes
Placement depth	2 in to 36 in
Compressive strength at 70°F (1 day / 28 day)	19,000 / 23,000 psi
Effective bearing area	≥ 85%
Height change	0.0-0.3%
Flexural strength	5,500 psi
Peak exotherm	<110°F (6 x 12 in cylinder)
Maximum in-service temperature	250°F (121°C)
Packaging / yield	5-bag kit, approx. 1.95 ft³

Product documents: XP 230 Epoxy Grout Technical Data Sheet

Frequently Asked Questions

When should a contractor pick Five Star XP 230 Epoxy Grout instead of Five Star XP 250 Epoxy Grout?
Pick Five Star XP 230 Epoxy Grout for conventional precision-equipment grouting and foundation rebuilds that can go as deep as 36 inches in one placement. Use Five Star XP 250 Epoxy Grout on wind-tower bases that need the 18-inch, 25,000 psi connection, often without a steel bearing plate.

Is Five Star XP 230 Epoxy Grout a low-dust formula?
Yes. Five Star XP 230 Epoxy Grout is a low-dust, three-component epoxy grout, which helps on enclosed equipment pads and rebuilds.

Does Five Star XP 230 Epoxy Grout gain strength in hot and cold temperatures?
Yes. Five Star XP 230 Epoxy Grout is formulated for fast strength gain at both hot and cold temperatures so plant turnaround is not stuck waiting on weather.

Is Five Star XP 230 Epoxy Grout used for foundation rebuilds and floor overlays?
Yes. Five Star XP 230 Epoxy Grout is used for foundation rebuilds, floor overlays, ultra-high load applications, and anchor-bolt or dowel installations, as well as precision equipment grouting.

Does Five Star XP 230 Epoxy Grout move with steel and concrete?
Yes. Five Star XP 230 Epoxy Grout has a coefficient of thermal expansion and modulus of elasticity more closely aligned with steel and concrete, and it is non-shrink when tested to ASTM C1090.

Can Five Star XP 230 Epoxy Grout go 36 inches in a single pour?
Yes. Five Star XP 230 Epoxy Grout can be placed up to 36 inches deep in a single pour. Low exotherm is what lets that monolithic depth go in.
