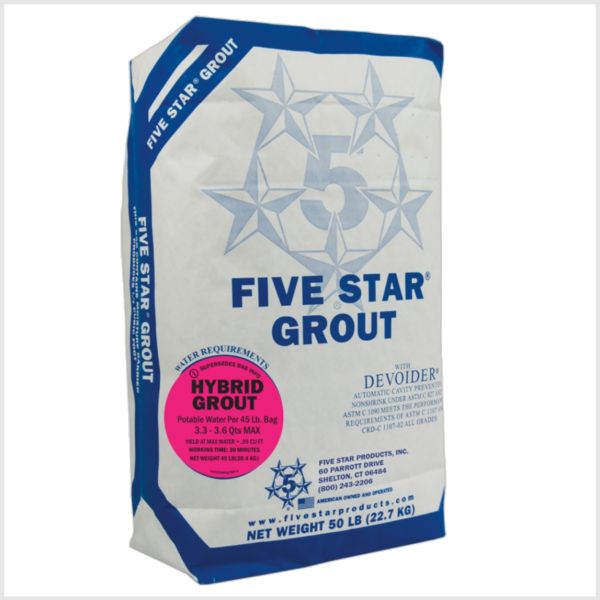

Five Star Hybrid Grout 45lb Bag
Five Star Hybrid Grout is a highly flowable is a highly flowable, high strength, cement-based, non-shrink precision grout. It achieves superb flowability while reaching high early and ultimate compressive strengths.
- Ultra-high 1, 7 and 28 Day Strengths
- Highly Flowable - Pump or Pour
- Nonmetallic
$73.39
Five Star Hybrid Grout, 45 lb Bag
Five Star Hybrid Grout is a high-performance, non-metallic, non-shrink cementitious specialty grout that delivers ultra-high early and ultimate compressive strengths along with superior bond performance. It can be placed across a wide temperature range (35°F to 100°F), achieves ≥95% effective bearing area, and maintains structural integrity at elevated service temperatures up to 600°F. The highly flowable formulation is suitable for both pouring and pumping under baseplates, tanks, and precast elements.
Key Features
- Ultra-high early strength: 5,000 psi at 8 hours and 7,500 psi at 1 day (72°F).
- 28-day compressive strength of 16,500 psi at 72°F.
- ≥95% Effective Bearing Area (ASTM C1339).
- Superior bond strength of 4,000 psi (ASTM C882).
- Highly flowable — pourable or pumpable.
- Non-shrink from time of placement.
- Service temperature capability up to 600°F (316°C).
- Very low chloride permeability.
Applications
- Precision alignment of machinery and equipment baseplates.
- High-load and low-vibration equipment installations.
- Seismic isolator and high-load anchor grouting.
- Tank and vessel support.
- Precast element connections requiring high early strength.
Technical Specifications
| Property | Value (at 72°F / 22°C unless noted) |
|---|---|
| Compressive Strength – 8 Hours (ASTM C942) | 5,000 psi (34.5 MPa) |
| Compressive Strength – 1 Day | 7,500 psi (51.7 MPa) |
| Compressive Strength – 7 Days | 13,000 psi (89.6 MPa) |
| Compressive Strength – 28 Days | 16,500 psi (113.8 MPa) |
| Bond Strength (ASTM C882, 28 Days) | 4,000 psi (27.6 MPa) – concrete failure |
| Effective Bearing Area (ASTM C1339) | ≥ 95% |
| Early Height Change (ASTM C827) | 0.0 to 2.0% |
| Hardened Height Change (ASTM C1090) | 0.00 to 0.20% |
| Working Time | Approximately 30 minutes |
| Initial Set Time (ASTM C191) | Approximately 120 minutes |
| Modulus of Elasticity (ASTM C469, 28 Days) | 4.5 × 10⁶ psi (31.0 GPa) |
| Chloride Permeability (ASTM C1202, 28 Days) | Very low (<1,000 coulombs) |
| Freeze/Thaw Durability Factor (ASTM C666) | ≥ 95% |
| Placement Depth (neat) | ¾ inch to 6 inches (19–152 mm) |
| Maximum In-Service Temperature | 600°F (316°C) |
| Yield | Approximately 0.39 ft³ per 45 lb bag |
| Installation Temperature Range | 35°F to 100°F (2°C to 38°C) |
Product documents: Five Star Hybrid Grout Technical Data Sheet (PDF)
Frequently Asked Questions
What compressive strength does Hybrid Grout reach at 8 hours?
Approximately 5,000 psi at 72°F.
What is the 28-day compressive strength?
16,500 psi at 72°F.
What is the effective bearing area?
≥95% when tested in accordance with ASTM C1339.
What is the maximum in-service temperature?
600°F (316°C).
What is the recommended placement depth?
¾ inch to 6 inches neat. Greater depths require aggregate extension per manufacturer guidelines.
What is the working time?
Approximately 30 minutes at 72°F.
