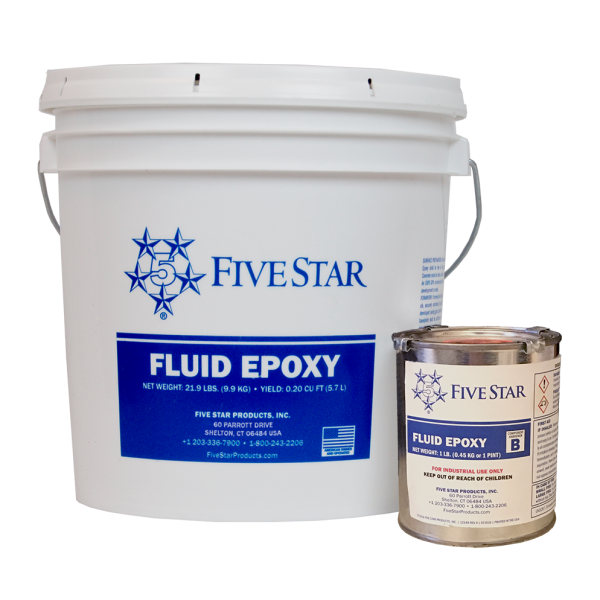

Five Star Fluid Epoxy Grout 31400
Five Star Fluid Epoxy is a two component, all-purpose, rapid cure fluid epoxy system. Five Star® Fluid Epoxy is designed for adhesive grouting, anchoring, anchor bolts, setting of bolts and wedges, and small repairs to concrete.
- High early strength - 11,000 PSI at 6 hours
- Fluid, self-leveling consistency
- Excellent adhesion to steel
- Chemically resistant
$425.13
Drop Shipped
Five Star Fluid Epoxy Grout 31400
Five Star Fluid Epoxy is a two-component, 100% solids, rapid-cure fluid epoxy system designed for low-clearance grouting, anchoring, and setting of leveling bolts or wedges. It reaches 11,000 psi compressive strength in only 6 hours and is suitable for thin placements from ⅛ inch to 1½ inches. The pre-packaged unit (resin/aggregate pre-blend plus hardener) is convenient for small-volume or precision adhesive applications.
Key Features
- Rapid strength gain: 11,000 psi at 6 hours.
- Self-leveling fluid consistency.
- Excellent adhesion to steel and concrete.
- Chemically resistant 100% solids epoxy.
- Suitable for thin placements (⅛–1½ in).
- Working time approximately 30 minutes at 70°F.
Applications
- Low-clearance adhesive grouting.
- Anchor bolt and rebar anchoring.
- Setting of leveling bolts and wedges.
- Small concrete repairs and patching.
- Precision alignment of light to moderate equipment.
Technical Specifications
| Property | Value |
|---|---|
| Compressive Strength (6 hours) | 11,000 psi (75.8 MPa) |
| Compressive Strength (1 day) | 13,000 psi (89.6 MPa) |
| Compressive Strength (7 days) | 14,000 psi (96.5 MPa) |
| Tensile Strength (ASTM C307) | 2,500 psi (17.2 MPa) |
| Flexural Strength (ASTM C580) | 6,800 psi (46.9 MPa) |
| Coefficient of Thermal Expansion | 32 × 10⁻⁶ in/in/°F |
| Working Time at 70°F | Approximately 30 minutes |
| Placement Depth | ⅛ in to 1½ in (3–38 mm) |
| Maximum In-Service Temperature | 150°F (65°C) |
Product documents: Five Star Fluid Epoxy Product Data Sheet (PDF)
Frequently Asked Questions
How quickly does Five Star Fluid Epoxy gain strength?
It reaches 11,000 psi compressive strength in approximately 6 hours at 70°F.
What is the maximum placement thickness?
1½ inches (38 mm) in a single pour. Contact Five Star for thicker sections.
Is a primer required?
No. It bonds directly to clean, dry concrete and metal surfaces.
What is the working time?
Approximately 30 minutes at 70°F.
What is the maximum service temperature?
150°F (65°C).
