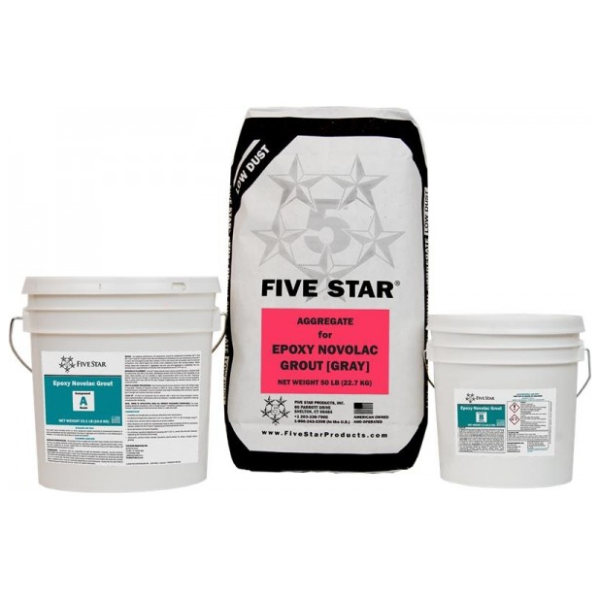

Five Star Epoxy Novolac Grout 34975

Five Star Epoxy Novolac Grout is a three component, highly chemical resistant, 100% solids grout designed for industrial applications in aggressive chemical environments where exposure to concentrated acids, alkalis, corrosives or solvents can occur. Five Star® Epoxy Novolac Grout has excellent flowability, is highly chemical resistant, and exhibits positive expansion when tested in accordance with ASTM C 827.

High chemical resistance
95% effective bearing area
Expansive, nonshrink

$1,188.47

Drop Shipped

Details

Five Star Epoxy Novolac Grout, Chemical-Resistant Machinery Grout

Five Star Epoxy Novolac Grout is a three-component, 100% solids epoxy grout for industrial equipment in aggressive chemical environments. It combines high flow, high effective bearing, and resistance to concentrated acids, alkalis, corrosives, and solvents. Use it under machinery and pump baseplates, process equipment, and secondary containment grouting.

Key Features

High chemical resistance for aggressive process areas
95% effective bearing area with proper placement
Expansive, non-shrink epoxy grout
Excellent flow under baseplates
Superior bond to concrete and steel
Impact and wear resistance in chemical service

Applications

Machinery and pump baseplates
Process equipment in chemical plants
Secondary containment grouting
High chemical-resistance foundations

Technical Specifications

Property	Value
Chemistry	Three-component, 100% solids novolac epoxy grout
Color	Gray
Yield	About 1.75 cu ft per unit
Compressive strength, 1 day	16,000 psi
Compressive strength, 7 days	17,000 psi
Post-cured compressive	18,000 psi at 140°F
Effective bearing area	95%
Working time at 70°F	20 minutes
Minimum plate clearance	1/2 in
Placement depth	1/2 in to 6 in
Maximum in-service temperature	200°F
Bond strength, 7 days	2,500 psi

Product documents: Epoxy Novolac Grout Technical Data Sheet (PDF)

Frequently Asked Questions

When should a contractor pick Five Star Epoxy Novolac Grout instead of Five Star Epoxy Novolac Coating?
Pick Five Star Epoxy Novolac Grout when machinery or pump baseplates sit in concentrated acids, alkalis, corrosives, or solvents. Use Five Star Epoxy Novolac Coating for a chemical-resistant film on floors, trenches, tanks, and containment walls.

How strong is Five Star Epoxy Novolac Grout at one day?
Five Star Epoxy Novolac Grout typically reaches about 16,000 psi at one day at 70 F.

Does Five Star Epoxy Novolac Grout reach 95 percent effective bearing area?
Yes. Five Star Epoxy Novolac Grout typically reaches 95 percent effective bearing area and shows positive expansion when tested to ASTM C827.

How tight a plate clearance can Five Star Epoxy Novolac Grout fill?
Minimum plate clearance for Five Star Epoxy Novolac Grout is 1/2 inch.

Does Five Star Epoxy Novolac Grout resist impact and wear?
Yes. Five Star Epoxy Novolac Grout has excellent impact and wear resistance for process equipment and secondary containment grouting.

Does Five Star Epoxy Novolac Grout bond to concrete and steel?
Yes. Five Star Epoxy Novolac Grout has a superior bond to concrete or steel in aggressive chemical service.
