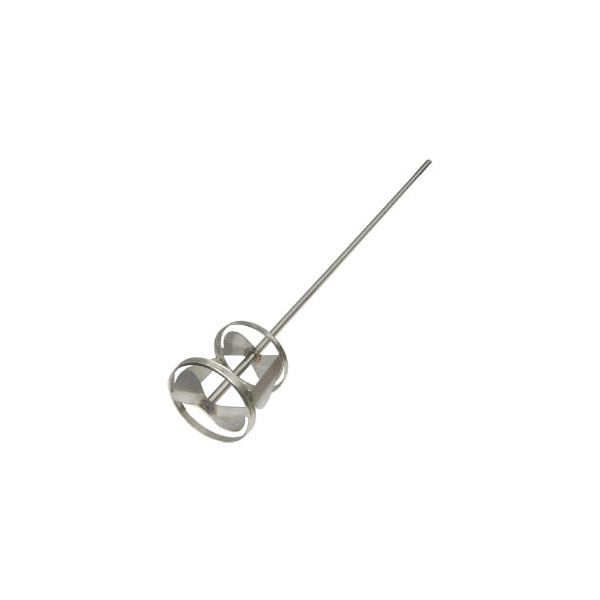

Jiffy ES Mixer

Jiffy ES Mixer is a 304 stainless dual-blade paddle, model ES, for epoxy, grout, and coatings in 2 to 5 gallon pails. The 3/8 in shaft chucks into a standard drill and holds a thorough mix at 450 to 750 rpm.

3/8 in shaft is 20 1/2 in long for chucked electric or air drills
Protective ring and floor-scraping blades keep air out of the mix
Best mix is 450 to 750 rpm, maximum 1000 rpm

$45.35

Availability: Out of stock

Details

Jiffy ES Mixer

Jiffy ES Mixer is a 304 stainless dual-blade paddle, model ES, for epoxy, grout, and coatings in 2 to 5 gallon pails. The 3/8 in shaft is 20 1/2 in long and chucks into a standard electric or air drill. Best mix is 450 to 750 rpm. Maximum speed is 1000 rpm. A protective ring and floor-scraping blades keep air out of the mix when the head stays immersed.

Key Features

304 stainless dual-blade paddle is used in 2 to 5 gallon pails
3/8 in shaft is 20 1/2 in long for chucked electric or air drills
Best mix is 450 to 750 rpm
Maximum speed is 1000 rpm
Protective ring and floor-scraping blades keep air out when the head stays immersed

Applications

Epoxy, grout, and coatings in 2 to 5 gallon pails
Jobs that need a 3/8 in chucked stainless paddle
Batches that need a mixer without sucking air into the coating

Technical Specifications

Property	Value
Model	ES
Material	304 stainless steel
Container	2 to 5 gal
Shaft diameter	3/8 in
Shaft length	20 1/2 in
Best mix	450 to 750 rpm
Max speed	1000 rpm
Top / bottom diameter	3 1/4 in / 3 3/4 in
Head depth	3 3/4 in
Weight	2 lb

Product documents: Jiffy Mixers Spec Sheet (PDF)

Frequently Asked Questions

What containers does Jiffy ES Mixer mix?
2 to 5 gallon pails. The 304 stainless dual-blade paddle is for epoxy, grout, and coatings in that range.

What shaft does Jiffy ES Mixer have?
A 3/8 in shaft, 20 1/2 in long, for a standard electric or air drill.

What speed does Jiffy ES Mixer use?
Best mix is 450 to 750 rpm. Maximum speed is 1000 rpm on the ES.

What keeps air out of Jiffy ES Mixer?
Fully immerse the head before the drill starts, keep it immersed while it turns, and shut off before the head breaks the surface.

What head size does Jiffy ES Mixer have?
Top diameter is 3 1/4 in, bottom is 3 3/4 in, and head depth is 3 3/4 in on the ES paddle.

What model is Jiffy ES Mixer?
Model ES. HS-1 and HS-2 cover 1 to 2 gal with a 1/4 in shaft, ES covers 2 to 5 gal with a 3/8 in shaft, and PS-1 covers 5 to 10 gal with a 1/2 in shaft.
