Euclid Dural HS Gel 21.2oz Cartridge 070HS 94
Euclid Dural HS Gel is a two-component structural epoxy gel for anchoring threaded rod, bolts, and rebar dowels in uncracked concrete.
- Moisture insensitive in damp environments
- Withstands freeze-thaw conditions
- Little to no odor
$694.46

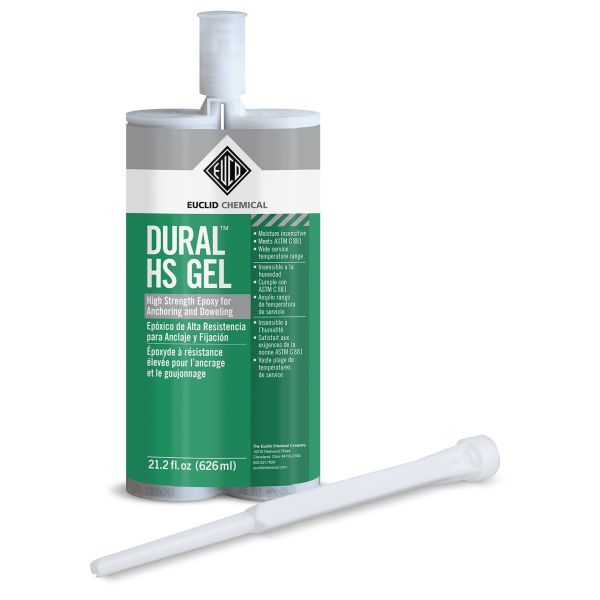

Euclid Dural HS Gel Anchoring Epoxy, 21.2 oz Cartridge
Euclid Dural HS Gel is a high-modulus structural epoxy gel for anchoring and doweling. It is used to set threaded rods, bolts, and rebar dowels in uncracked concrete, to grout dowel bars and tie bars, and as a bonding agent for fresh-to-hardened and hardened-to-hardened concrete. It is also placed as a pick-proof sealant for jails, prisons, and kennels. Placement is from 40 to 110 F.
Key Features
- High-modulus structural epoxy gel for anchoring and doweling
- Moisture insensitive in damp environments
- Withstands freeze-thaw conditions
- Little to no odor
- DOT not regulated (non-corrosive)
- Tested for static, dynamic, seismic, and wind loads
Applications
- Anchoring threaded rods, bolts, and rebar dowels into uncracked concrete.
- Short and long term tensile anchoring.
- Grouting dowel bars and tie bars.
- Bonding agent for fresh-to-hardened and hardened-to-hardened concrete.
- Pick-proof sealant for jails, prisons, and kennels.
Technical Specifications
| Property | Value |
|---|---|
| Consistency | < 1/4 in |
| Pot life, 1 gal at 75 F | 13 minutes |
| Gel time, 60 g at 75 F | 14 minutes |
| Bond strength, 2 days at 75 F | 3,580 psi |
| Bond strength, 14 days at 75 F | 3,940 psi |
| Water absorption, 14 days | 0.53% |
| Heat deflection temperature | 132 F |
| Compressive yield, 7 days at 75 F | 11,410 psi |
| Cartridge yield, 21.2 oz | 38.3 in³ |
| Application temperature | 40 to 110 F |
Documents
Dural HS Gel Technical Data Sheet
Frequently Asked Questions
What load types does Euclid Dural HS Gel resist in uncracked concrete?
Euclid Dural HS Gel is tested in accordance with ASTM E488 and ASTM E1512 for static, dynamic, seismic, and wind loads in uncracked concrete. Testing covers both threaded rod and rebar.
What full-cure time does Euclid Dural HS Gel hold at 75 F?
Typical full cure time is 24 hours at 75 F. Expect reasonable variation under field conditions.
What 21.2 oz cartridge yield does Euclid Dural HS Gel give?
One 21.2 oz cartridge of Euclid Dural HS Gel yields 38.3 in³ of epoxy.
What in-service load reduction does Euclid Dural HS Gel take at 180 F?
Typical allowable load capacity reduction factor is 0.66 at 180 F base material temperature. The factor is 1.00 at 35 F and at 70 F, and 0.91 at 110 F. Reduction factors may be linearly interpolated between listed temperatures.
What 7-day compressive yield does Euclid Dural HS Gel show at 75 F?
Typical laboratory compressive yield at 75 F is 11,410 psi at 7 days (ASTM D695). One-day compressive yield at 75 F is 11,430 psi. Expect reasonable variation under field conditions.
What installation temperature window does Euclid Dural HS Gel take?
Substrate and ambient air temperature for Euclid Dural HS Gel is 40 to 110 F. Working time and full cure time decrease as the temperature increases and increase as the temperature decreases. Expect reasonable variation under field conditions.
